QD GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3514585 |

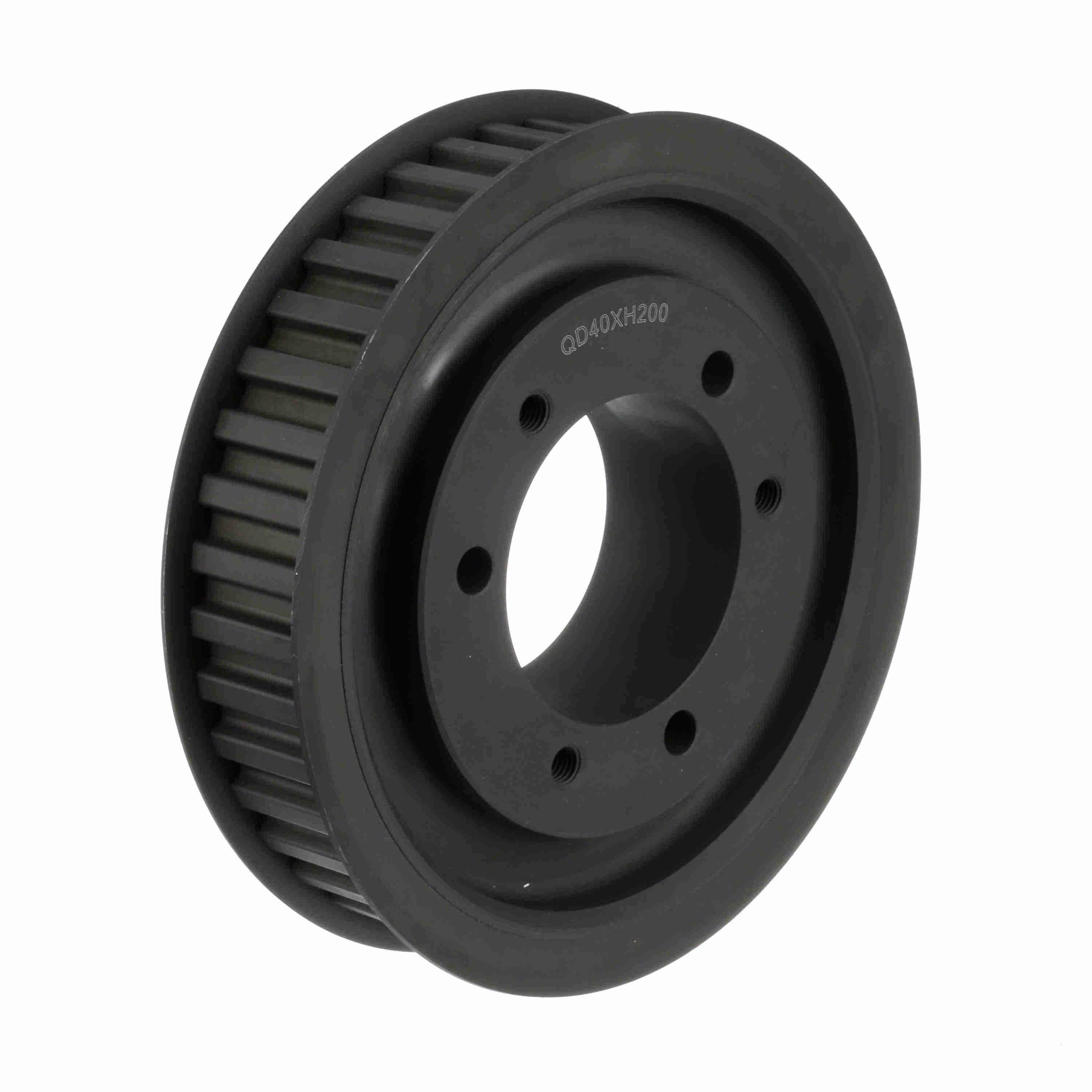

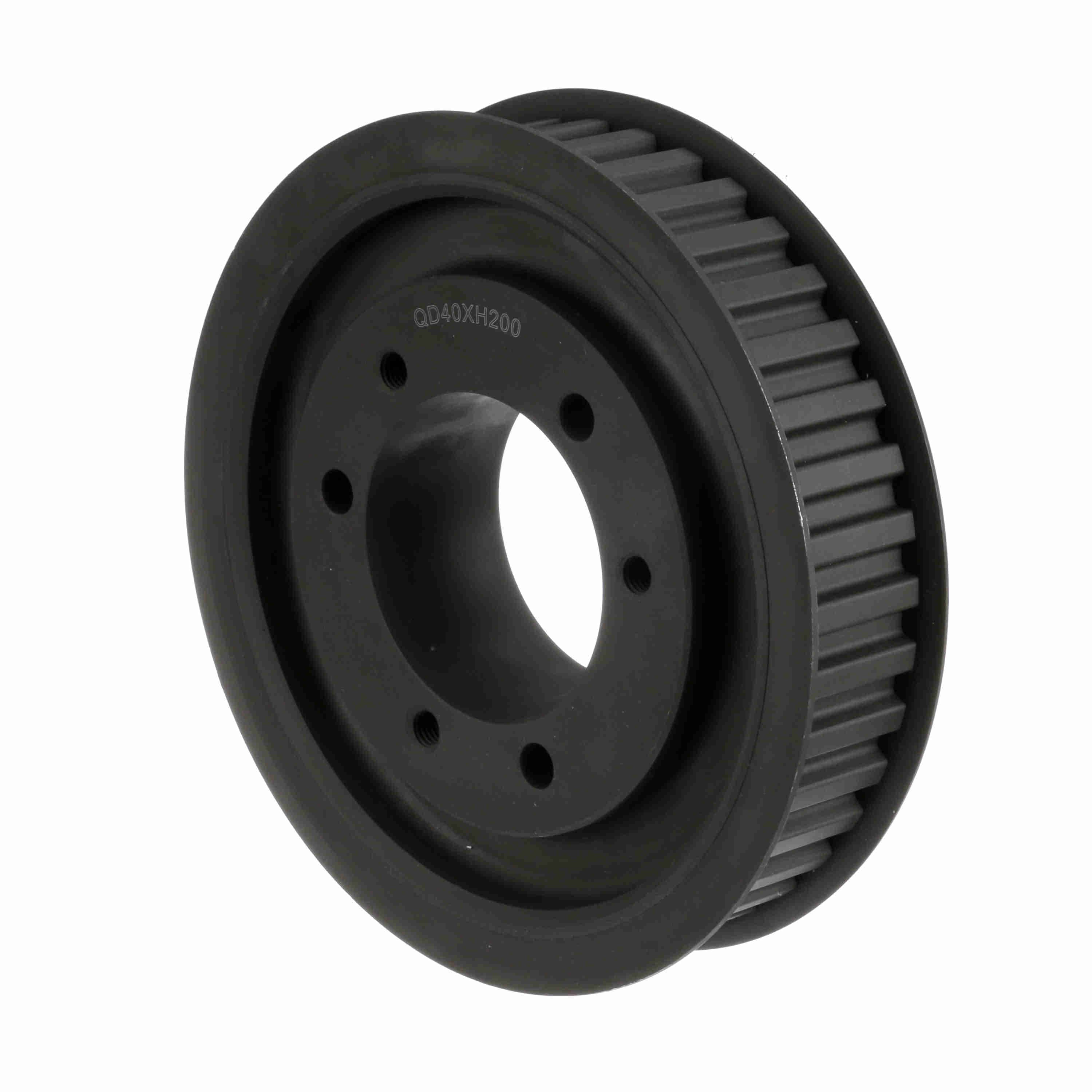

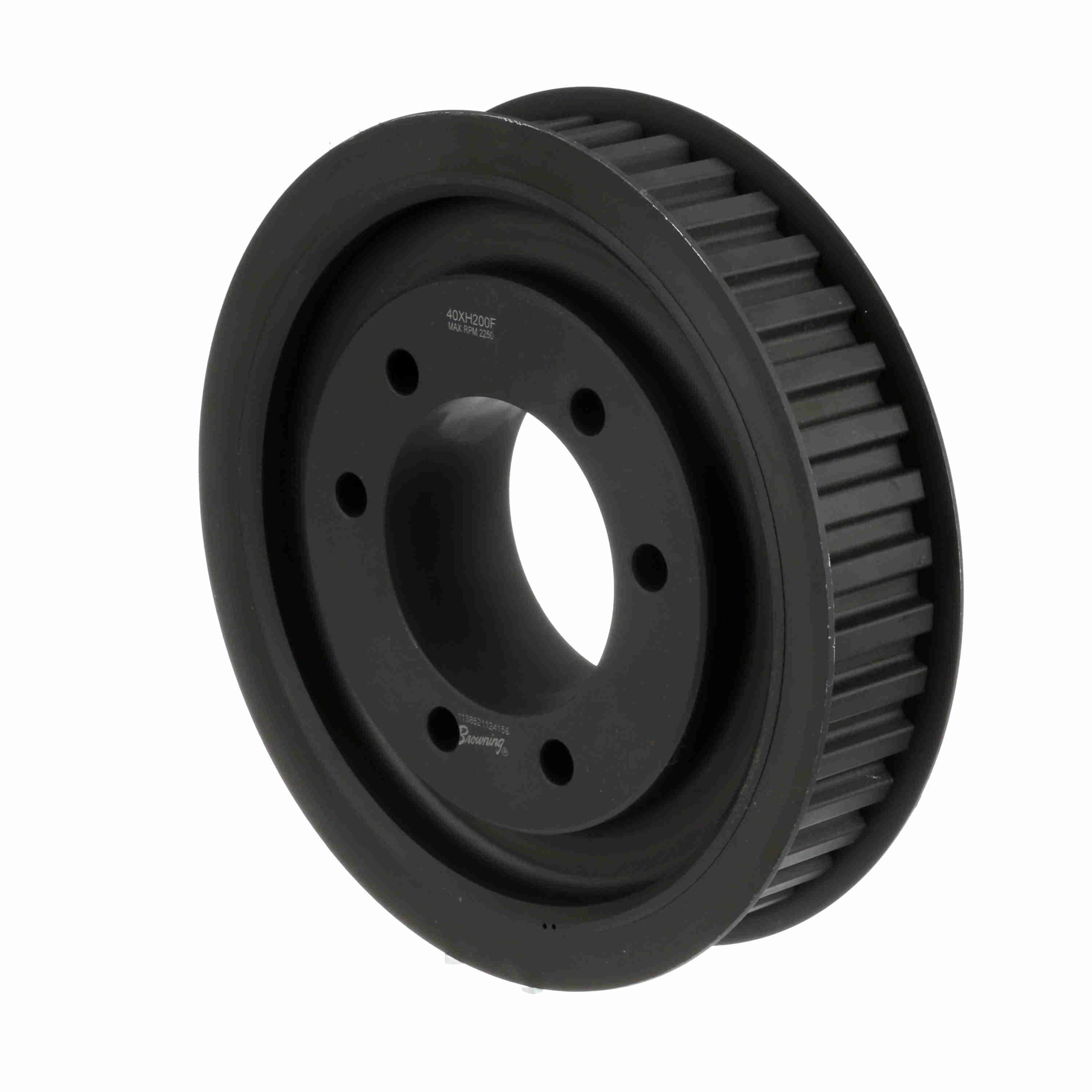

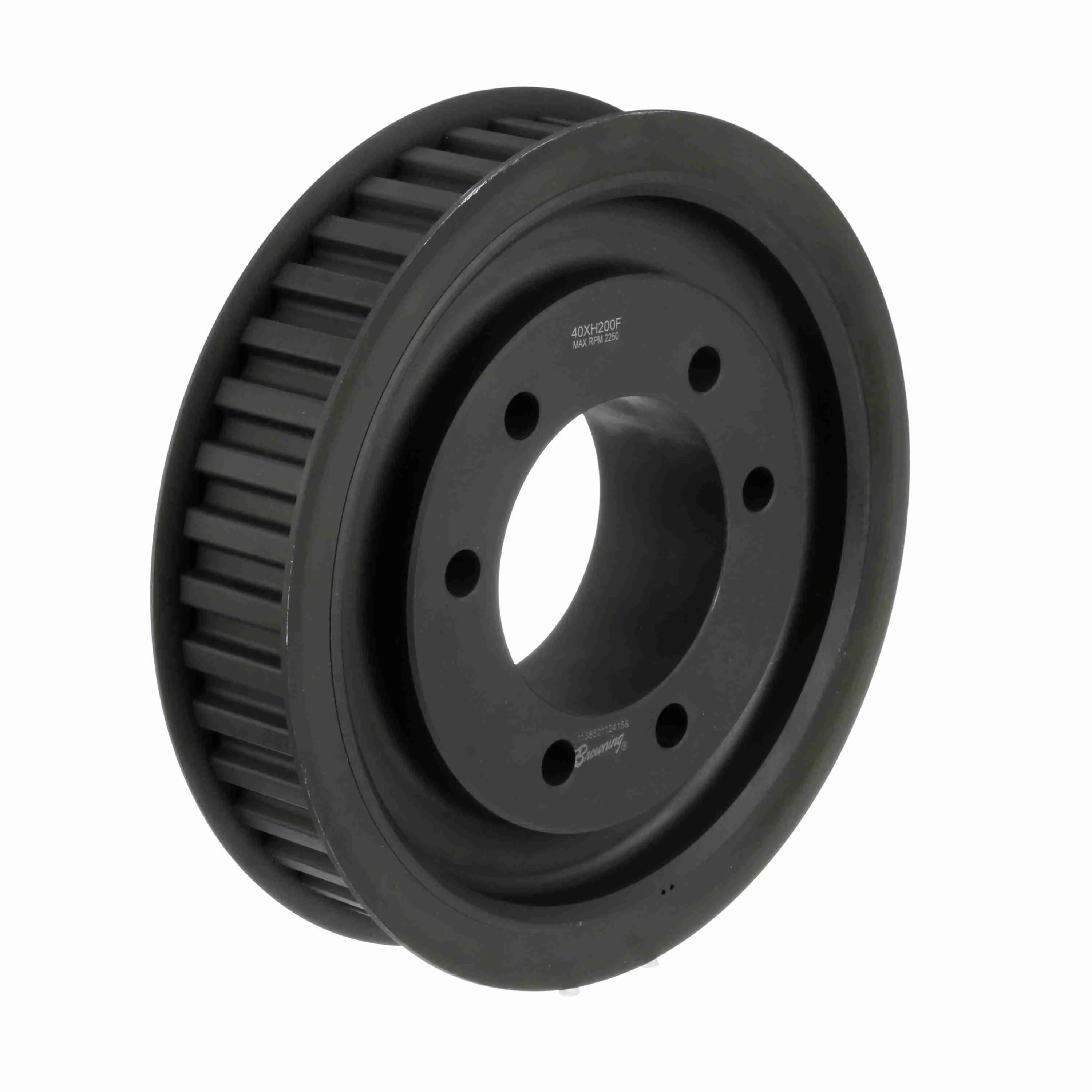

| Product Name | 40XH200F |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 38.13 lb |
| Package Length | 12.2 in |
| Package Width | 12.3 in |
| Package Height | 3.4 in |
| Model Name | GBPulley_Master6 |
| Product Type | Gearbelt Pulley |
| Number of teeth | 40 |
| Bore Range | 1 to 4 |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $2044.76 | — |
| 5 – 9 | $1917.87 | 6% off |
| 10+ | $1850.90 | 9% off |
| 50.8 mm |
| Bore Type | Bushed Bore |
| Flange (in) | 11.6540 in |
| Outside Diameter (mm) | 280.1874 mm |
| Belt Section | XH |
| Outside Diameter (in) | 11.031 in |
| Width (in) | 2 in |
| Inside Diameter (in) | 9.25 in |
| Pitch Diameter (in) | 11.141 in |
| Face Width | 2.5625 |
| Hub Projection | 1.55525 |
| Overall Length (in) | 4.11825 in |
| Hub Diameter (in) | 6.625 in |
| Pulley Construction | Solid |
| With Flanges | With Flanges |
| Number of Hubs | 1 |
| Length Through Bore | 3.68 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112648 |
| Part NumberiManufacturer catalog number | 3514585 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289351671 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
