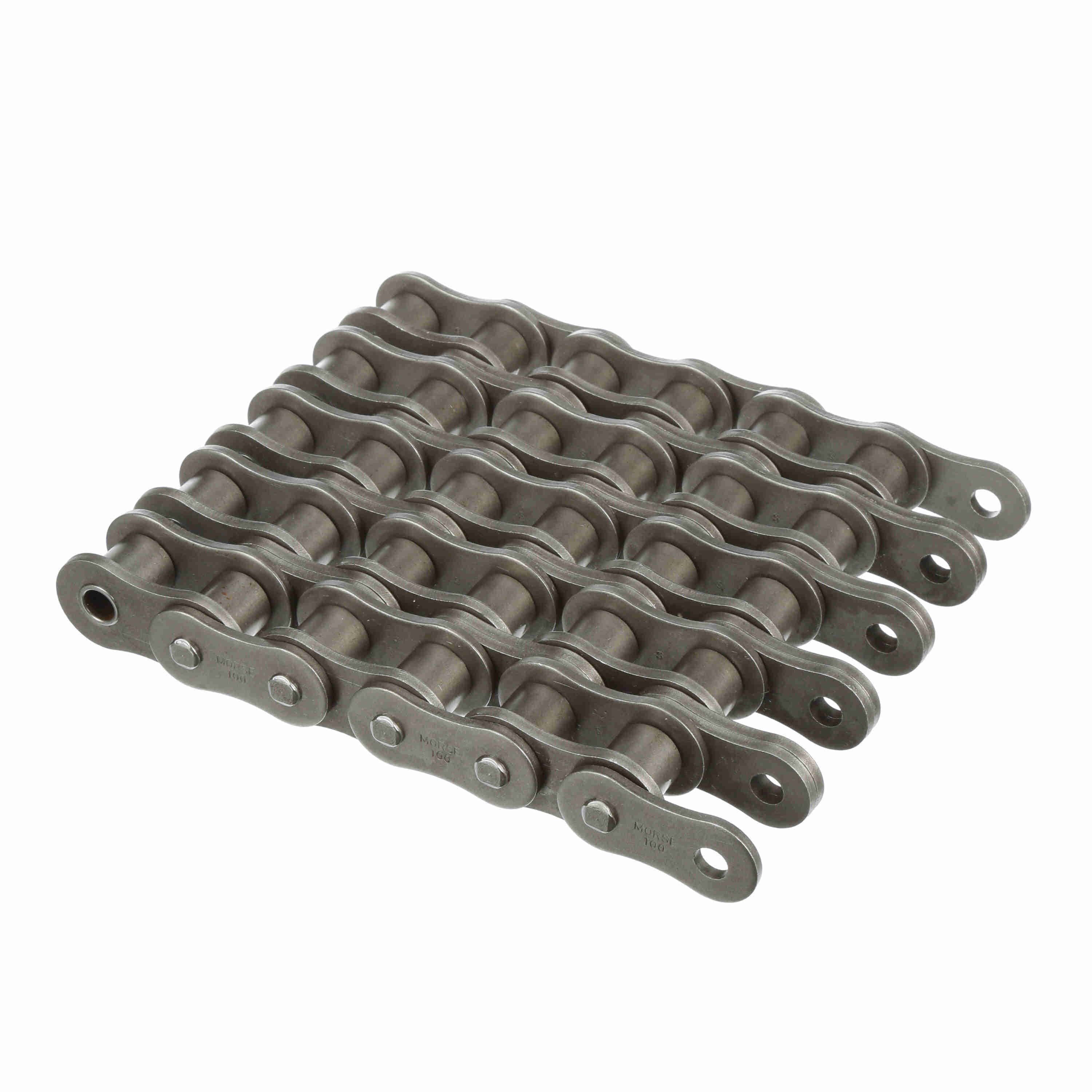

R2 PKG CHAIN 80 & ABOVE
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 371912 |
| Product Name | 80-6R 10FT |
| Brand | Morse |
| Material | Steel |
| Weight | 10.234 lb |
| Chain Family | 80 |
| Pin Diameter (in) | 0.313 in |
| Roller Width (in) | 0.625 in |
| Roller Diameter (in) | 0.625 in |
| Number of Strands/Width | 6 |
| Chain Construction | Riveted |
| Number of Connecting Links Included | 1 |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1745.62 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Product Type |
| Roller Chain |
| Chain Type | Standard |
| Chain Pitch (in) | 1 in |
| Coating | Uncoated |
| Measurement System | Imperial |
| Standard Met | ANSI B29.1 |
| Inside Plate Height (in) | 0.934 in |
| Plate Thickness (in) | 0.125 in |
| Transverse Pitch (in) | 1.153 in |
| Width Over Pins/Total Width (in) | 7.044 in |
| Base Catalog No | 80-6 |
| Total Length (ft) | 10 ft |
| Minimum Tensile Strength (lbs) | 75,000 lb |
| Side Plate Configuration | Hourglass |
| Pin Length (in) | 7.044 in |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112980 |
| Part NumberiManufacturer catalog number | 371912 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288860464 |
| CategoryiCatalog classification | Roller Chain |
