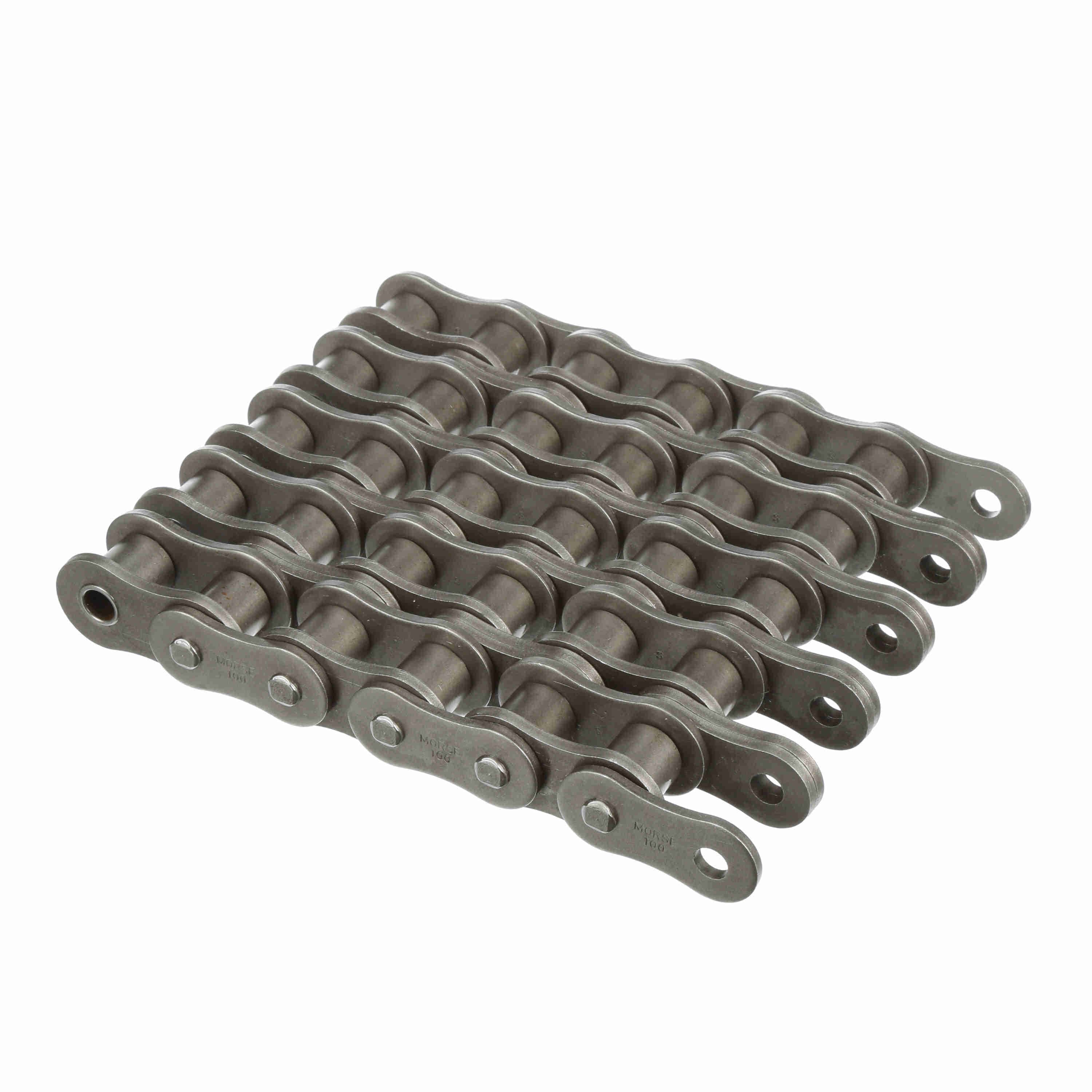

R2 PKG CHAIN 80 & ABOVE
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 371924 |
| Product Name | 100-6R 10FT |
| Brand | Morse |
| Material | Steel |
| Weight | 15.1082 lb |
| Pin Diameter (in) | 0.375 in |
| Chain Construction | Riveted |
| Roller Diameter (in) | 0.75 in |
| Roller Width (in) | 0.75 in |
| Number of Strands/Width | 6 |
| Chain Family | 100 |
| Number of Connecting Links Included | 1 |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1703.08 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Chain Type |
| Standard |
| Chain Pitch (in) | 1.25 in |
| Product Type | Roller Chain |
| Base Catalog No | 100-6 |
| Inside Plate Height (in) | 1.166 in |
| Width Over Pins/Total Width (in) | 8.595 in |
| Plate Thickness (in) | 0.156 in |
| Side Plate Configuration | Hourglass |
| Pin Length (in) | 8.65 in |
| Minimum Tensile Strength (lbs) | 117,180 lb |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112983 |
| Part NumberiManufacturer catalog number | 371924 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288860471 |
| CategoryiCatalog classification | Roller Chain |
