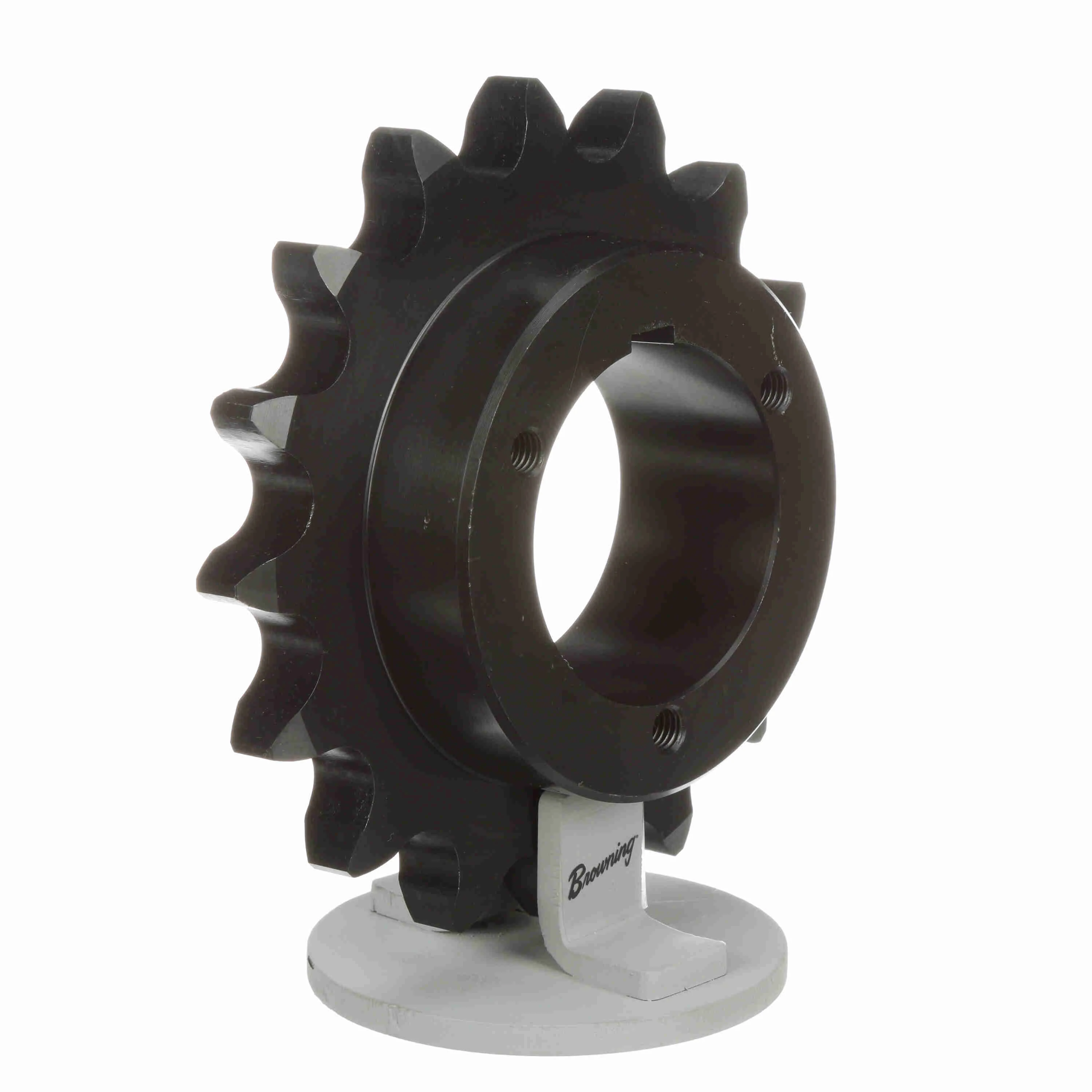

SPLIT TAPER BUSH SPKTS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3995800 |
| Product Name | H100Q27 |
| Brand | Browning |
| Material | Steel, Hardened Teeth |
| Weight | 16.94 lb |
| Package Length | 11.88 in |
| Package Width | 11.88 in |
| Package Height | 2.25 in |
| Number of Teeth | 27 |
| Bushing Used | Split Taper |
| Chain Pitch (in) | 1.25 in |
| Pitch Diameter (in) | 10.767 in |
| Product Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1570.85 | — |
| 5 – 9 | $1386.26 | 12% off |
| 10+ | $1069.03 | 32% off |
| Bushed Roller Chain Sprocket |
| Min Bore (in) | 0.75 in |
| Chain Used | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Max Bore (in) | 2.6875 in |
| Bore Type | Bushed Bore |
| Outside Diameter (in) | 11.444 in |
| Overall Length (in) | 2.887375 in |
| Number of Strands/Width | 1 |
| Hub Diameter (in) | 4.125 in |
| Maximum Bore (in) | 2.6875 in |
| Maximum Bore (mm) | 65 mm |
| Minimum Bore (mm) | 18 mm |
| Number of Hubs | 1 |
| Pitch Type | Single |
| HTC | 8483.90.1050 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113086 |
| Part NumberiManufacturer catalog number | 3995800 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289722952 |
| CategoryiCatalog classification | Sprockets |
