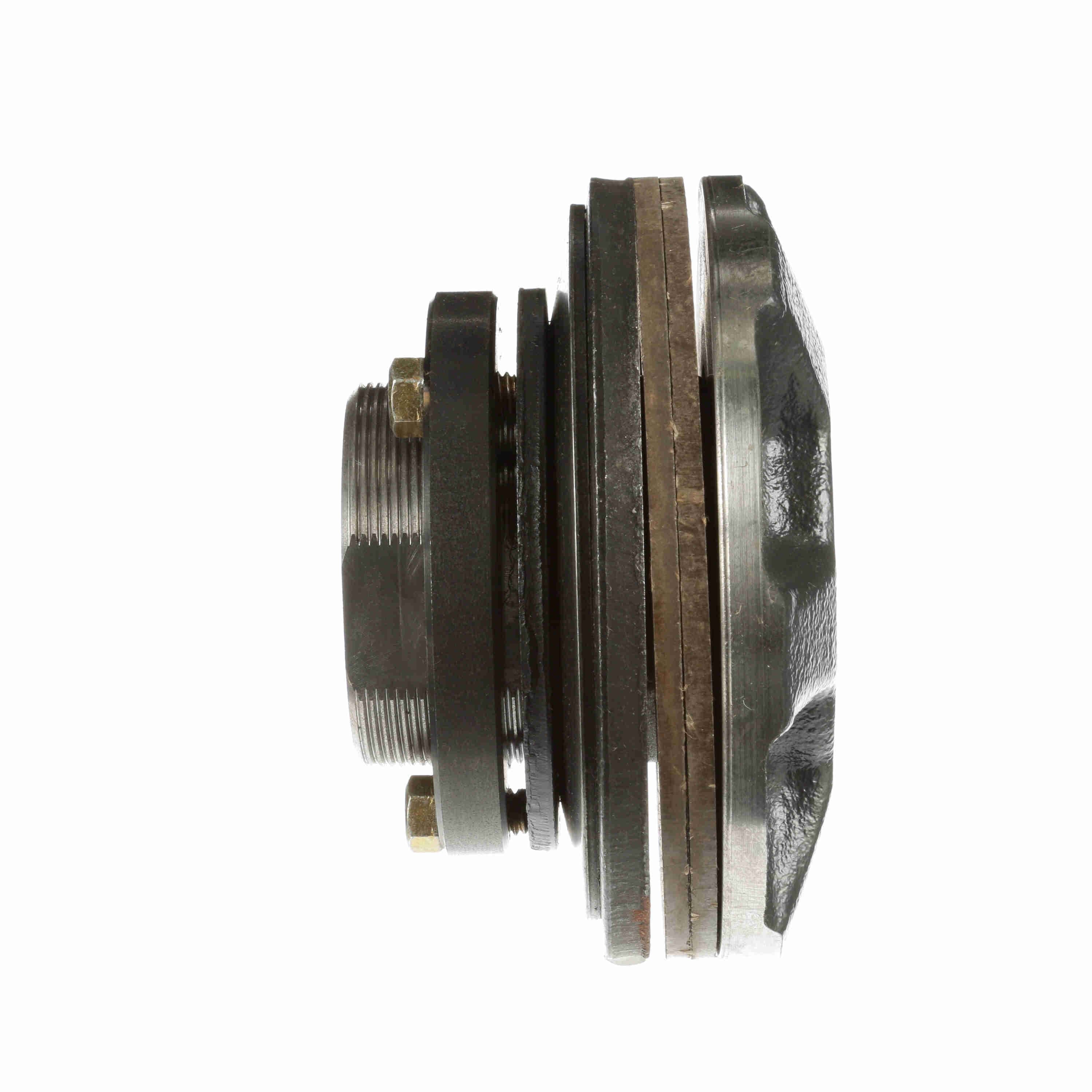

TORQUE LIMITERS-MORSE
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 466104 |
| Product Name | 500A-1 TL 1-1/4 FB |
| Brand | Morse |
| Weight | 7.435 lb |
| Package Length | 6.4 in |
| Package Width | 6.2 in |
| Package Height | 3.7 in |
| Detection Method | Friction Pad |
| Backlash | Zero |
| Disconnect Method | Friction Pad |
| Outside Diameter (in) | 5 in |
| Total Length (in) | 3 in |
| Trip Torque [Min] |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $455.43 | — |
| 10+ | $389.60 | 14% off |
| 35 |
| Bore Size (in) | 1.25 in |
| Reset Type | Automatic |
| Series / Model | 500A |
| Torque [Min] (N-m) | 47.6 |
| Total Length (mm) | 76.2 mm |
| Maximum Bore w/ Key & Setscrew | 1.75 |
| Type | Torque Overload Devices |
| Sprocket Bore Diameter | 2.878/2.880 |
| Bore Shape | Straight Bore |
| Recovery Style | Automatic |
| Sensor Plate | No |
| Unit Accuracy | 0.25 |
| Outside Diameter (mm) | 127 mm |
| Torque Capacity [Min] (lb-ft) | 35 |
| Max RPM | 1,000 |
| Torque Capacity [Max] (lb-ft) | 155 |
| Product Type | Torque Limiter |
| Torque [Max] (N-m) | 210.8 |
| Bore (Max) (in) | 1.25 in |
| Bore (Min) (in) | 1.25 in |
| Minimum Sprocket Teeth | #40 (35 Teeth);#41 (35 Teeth);#50 (30 Teeth);#60 (25 Teeth);#80 (19 Teeth) |
| Bore Type | Finished w/ Keyway |
| HTC | 8483.60.8000 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113231 |
| Part NumberiManufacturer catalog number | 466104 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288478973 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
