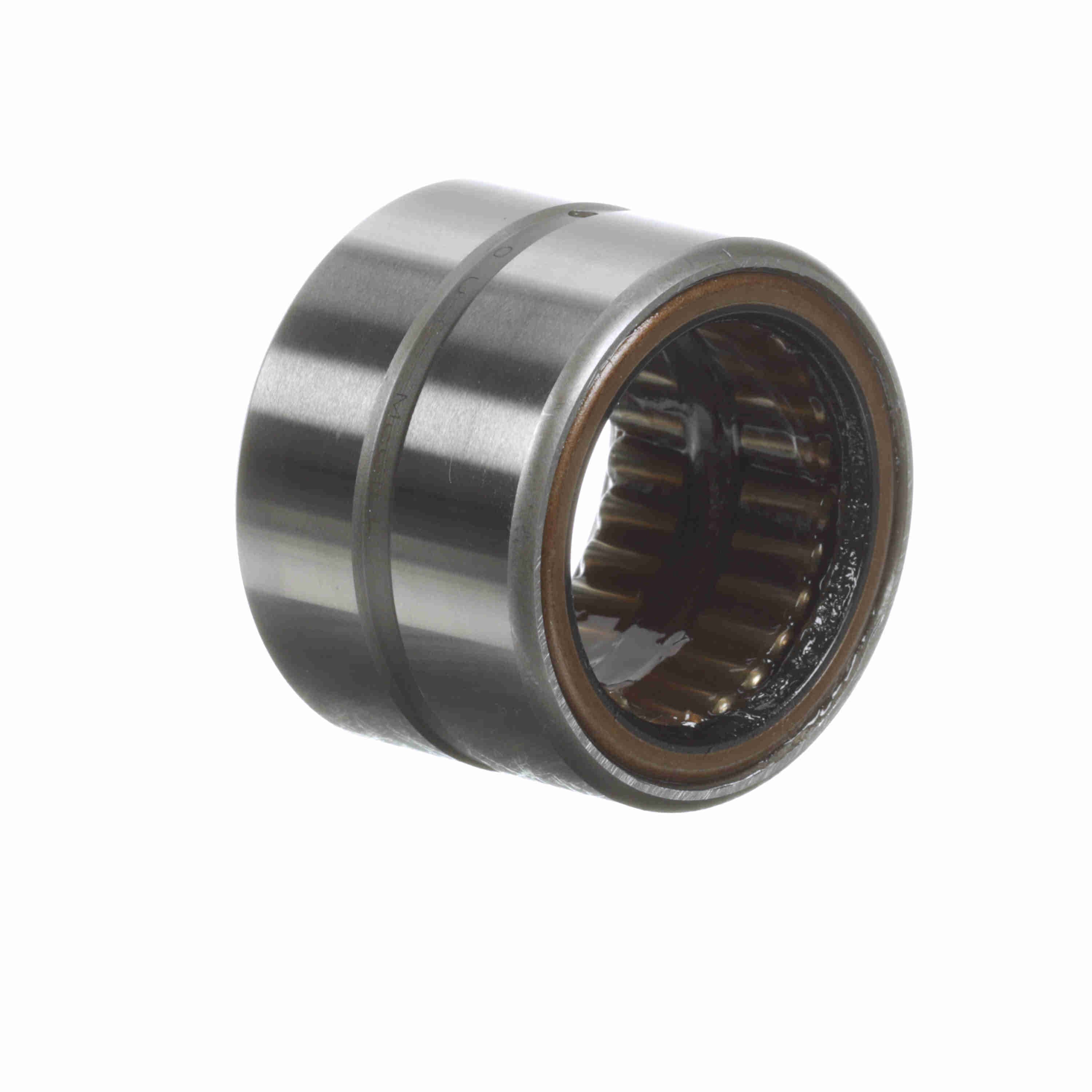

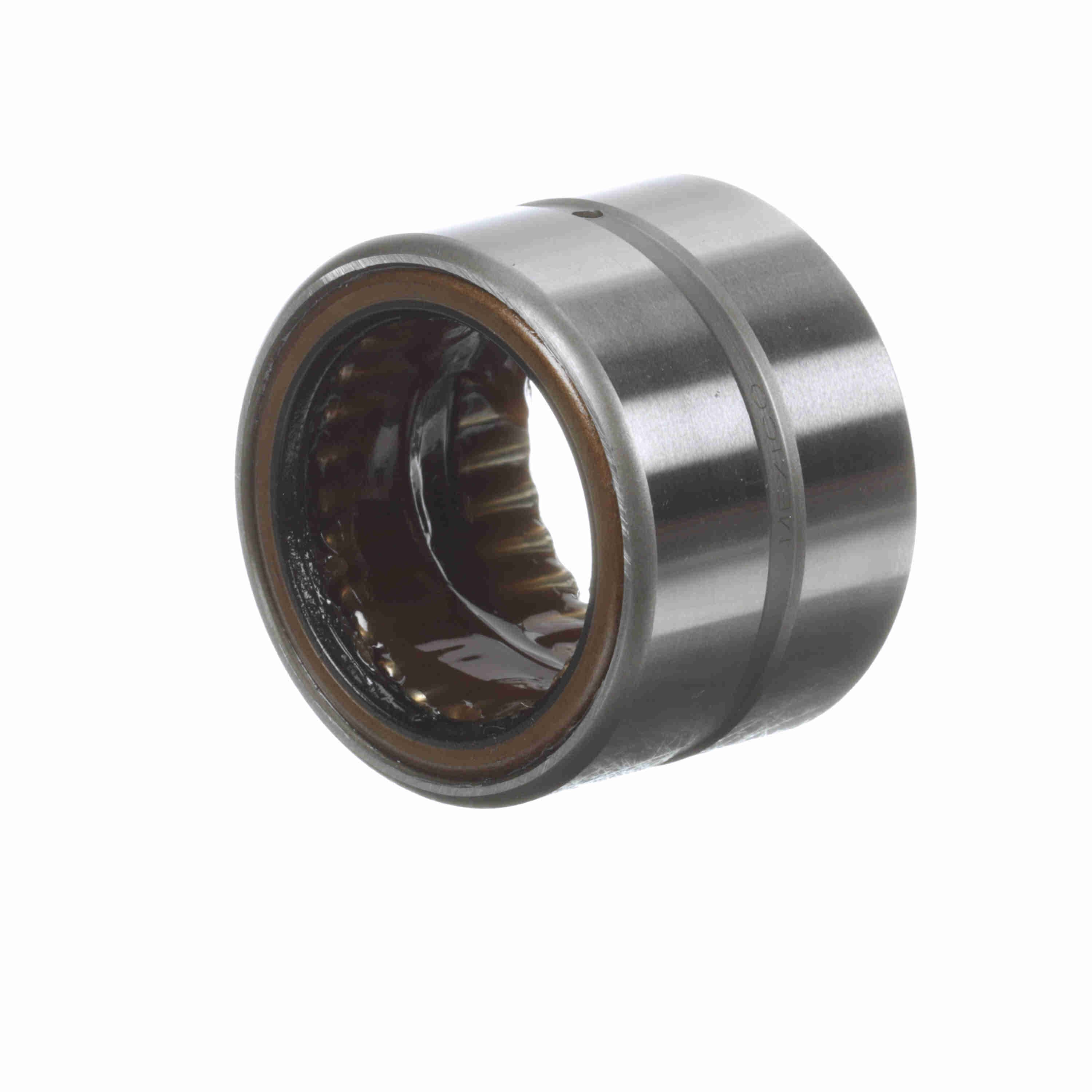

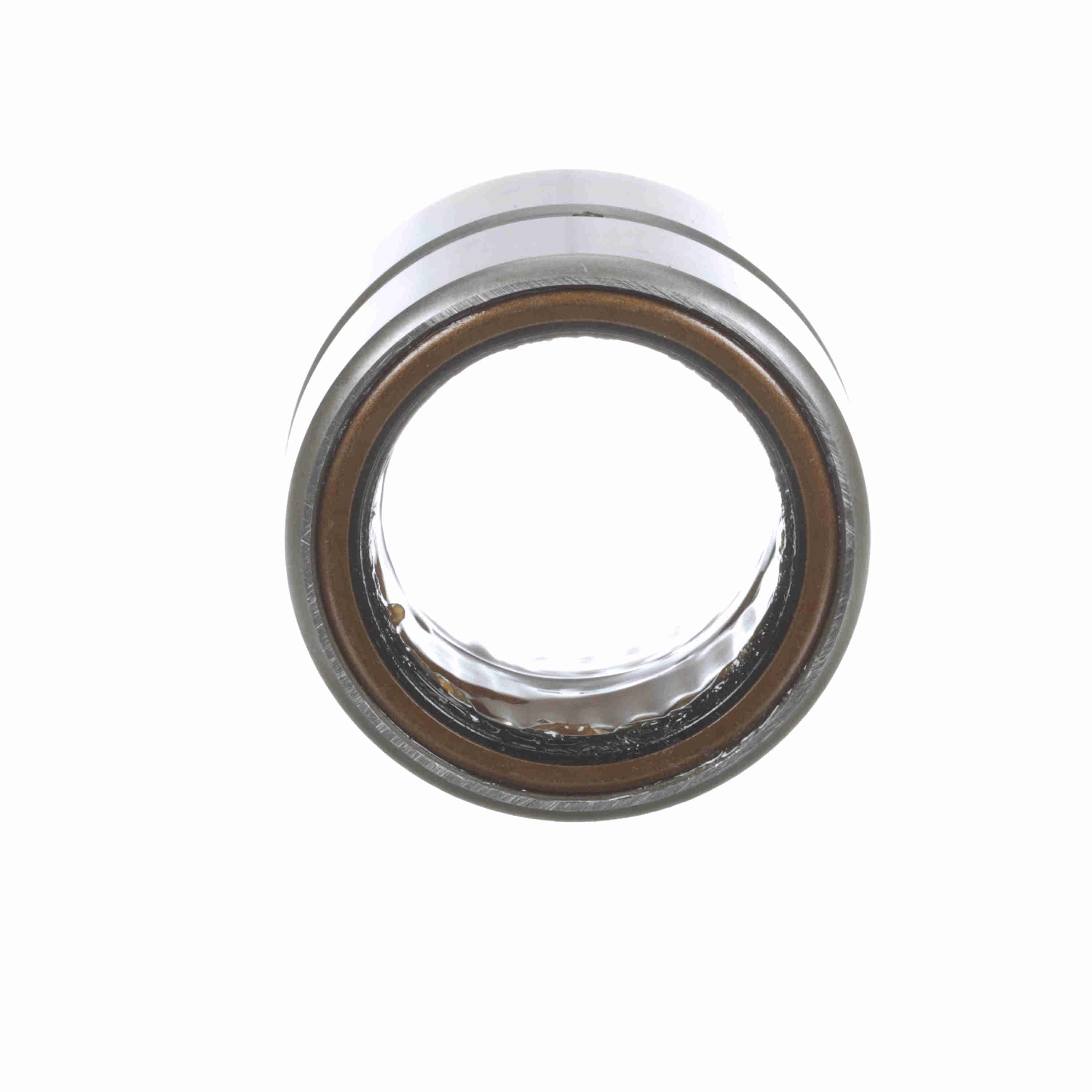

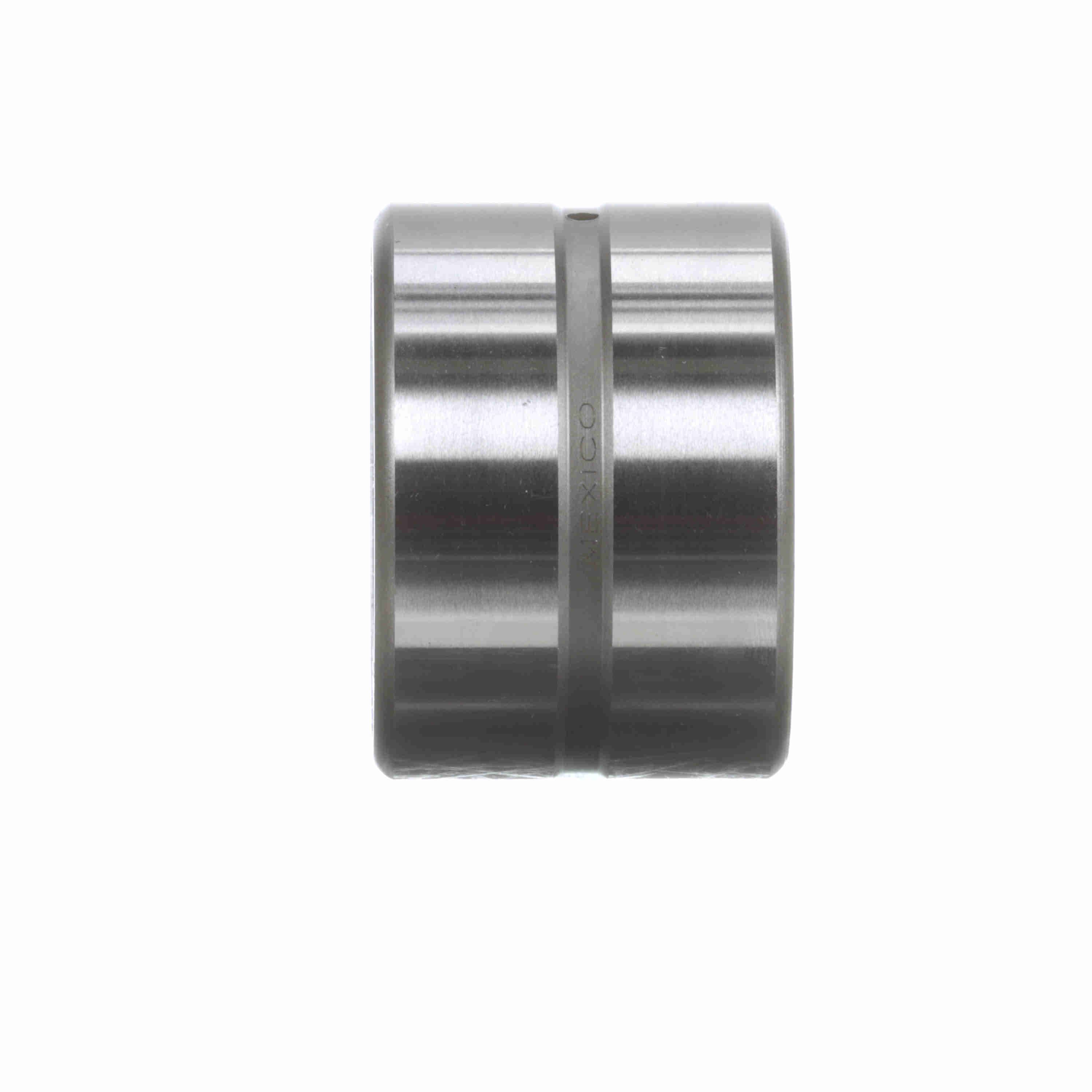

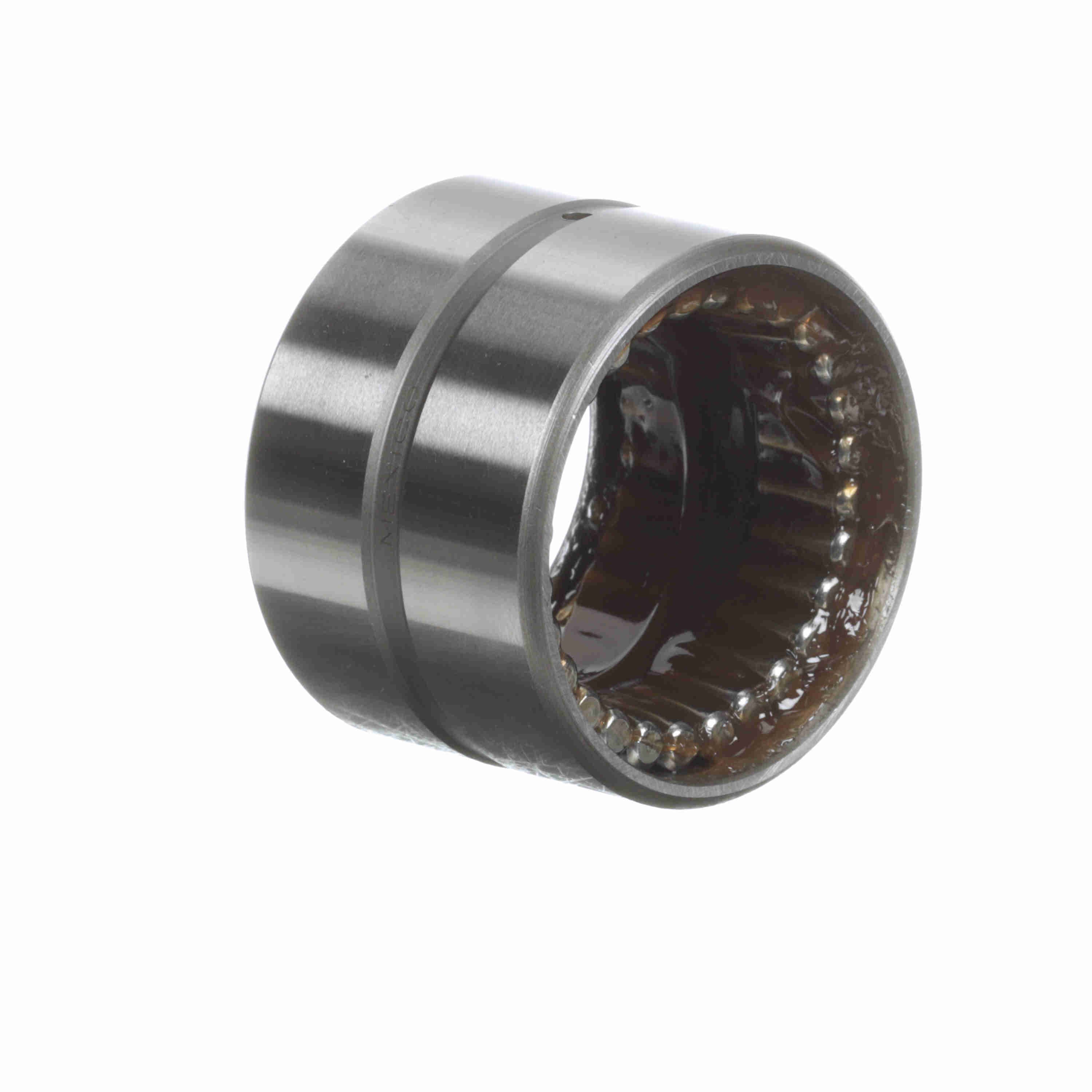

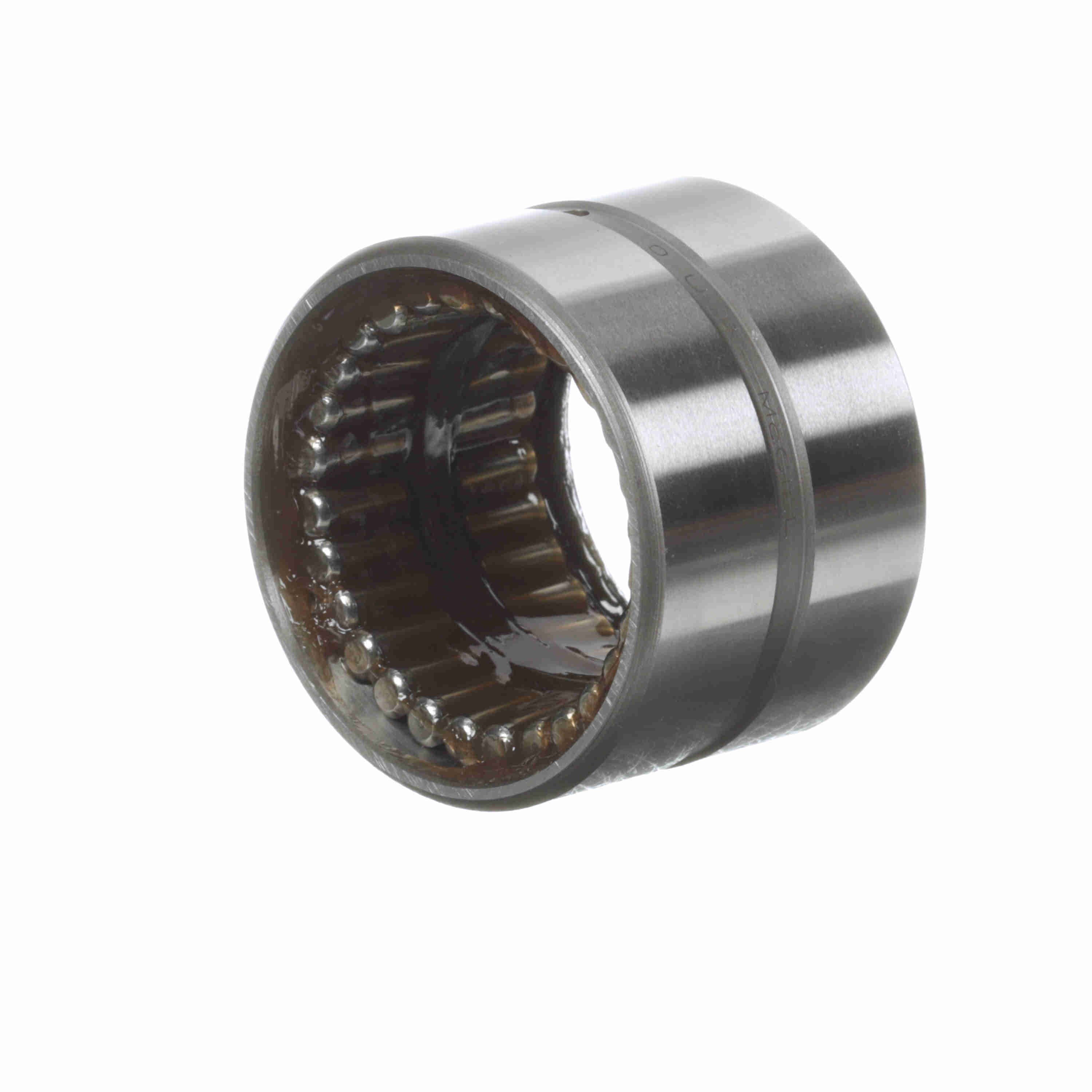

GR Series 500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 5002010000 |
| Product Name | GR 20 S |
| Brand | McGill |
| Material | 52100 Bearing Steel |
| Weight | 0.3 lb |
| Package Length | 1.5 in |
| Package Width | 1.75 in |
| Package Height | 2.18 in |
| Bore Size (in) | 1.2500 in |
| Housing & Shaft Fillet (in) | 0.04 in |
| Outside Diameter (in) | 1.75 in |
| Outer Width (in) | 1.25 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $403.63 | — |
| Radial Lub Hole Diameter (in) |
| 0.09 in |
| Includes Inner Ring | No |
| Series | Standard |
| Cage Material | No retainer |
| Seal Type | Rubber Lip |
| Number of Rows | 1 |
| Misalignment | No |
| Radial Clearance | Normal |
| Rolling Element | Needle Roller |
| Bore Type | Straight |
| Static Load Rating (lb) | 17,000 lb |
| Sealed | Sealed - One Side |
| Speed [Max] Grease (RPM) | 3,050 rpm |
| Platform | Guiderol Bearing |
| Duplexing | No |
| Dynamic Load Rating (lb) | 6,500 lb |
| Full Complement/Caged | Full Complement |
| Standard Met | ABMA, ISO |
| Flanges | No Flanges |
| Precision Rating | RBEC-1 |
| Related Inner Ring | MI 16 |
| Lubrication Hole Type | Lubrication Groove & Hole |
| Component Type | Outer race only |
| Enclosure | Sealed One Side |
| Separable | Nonseparable |
| Retainer | No |
| Operating Temperature Range (F) | -20 to 250 °F °F |
| HTC | 8482.40.0000 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113300 |
| Part NumberiManufacturer catalog number | 5002010000 |
| BrandiManufacturer or product brand | McGill |
| UPCiUniversal Product Code | 726166061784 |
| CategoryiCatalog classification | Bearings > Needle Roller Bearings |
