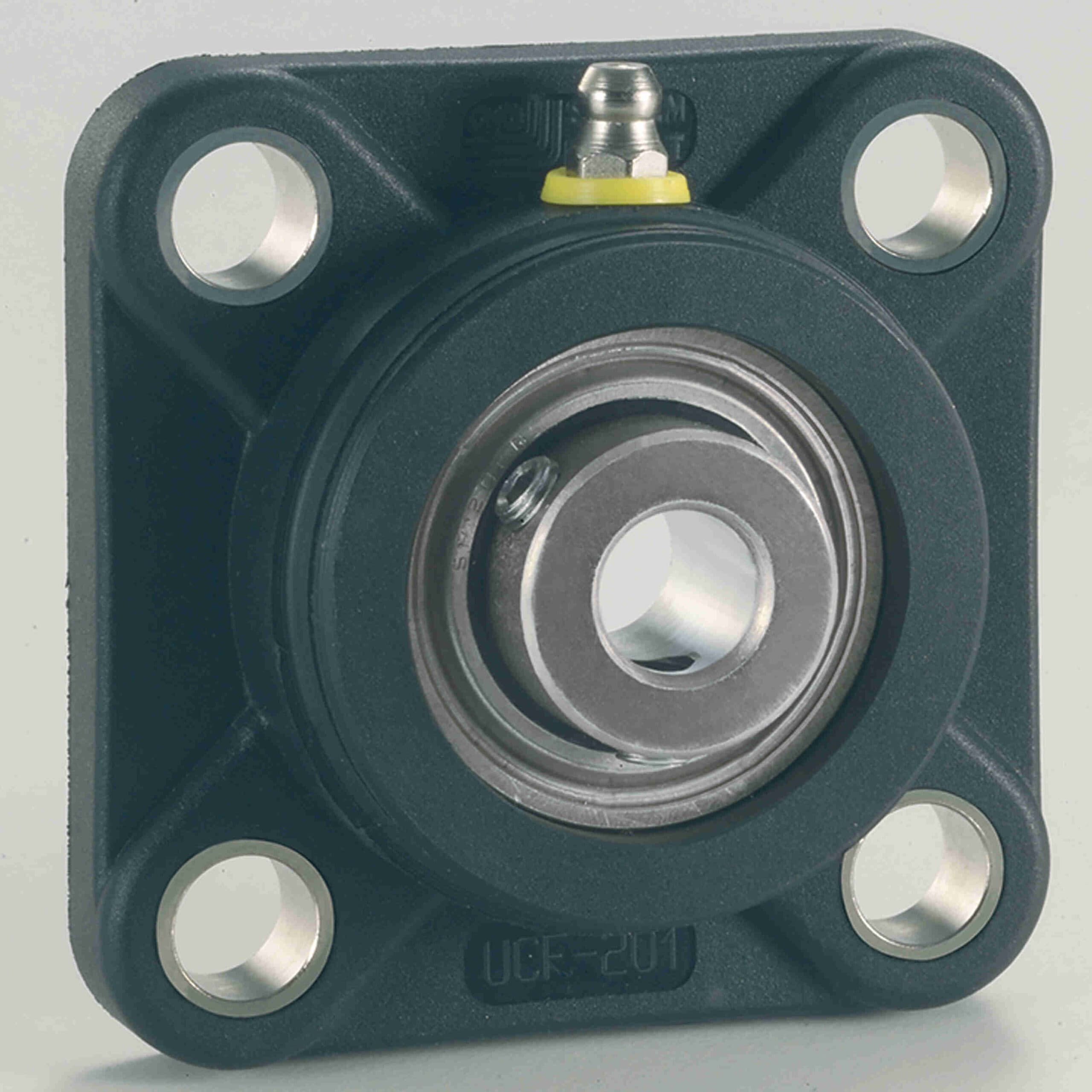

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock - UCFQ205-25M
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 50205V-EC |
| Product Name | UCFQ205-25M |
| Brand | System Plast |
| Weight | 0.71 lb |
| Package Length | 3.74 in |
| Package Width | 3.74 in |
| Package Height | 1.44 in |
| Retainer Type | Ball Riding Retainer |
| Speed (Max) | 3500 |
| Insert No. | SB205-25M RG |
| Expansion | No |
| Insert Material | 52100 Bearing Steel |
| Rolling Element |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Ball Bearing |
| Housing Type | Flange, Four Bolt |
| Measure Units | Metric |
| Internal Clearance | Standard |
| Bore Shape | Straight |
| Housing Material | Polyamide |
| Housing Base | Solid |
| Duty Series | Standard Duty |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113433 |
| Part NumberiManufacturer catalog number | 50205V-EC |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
