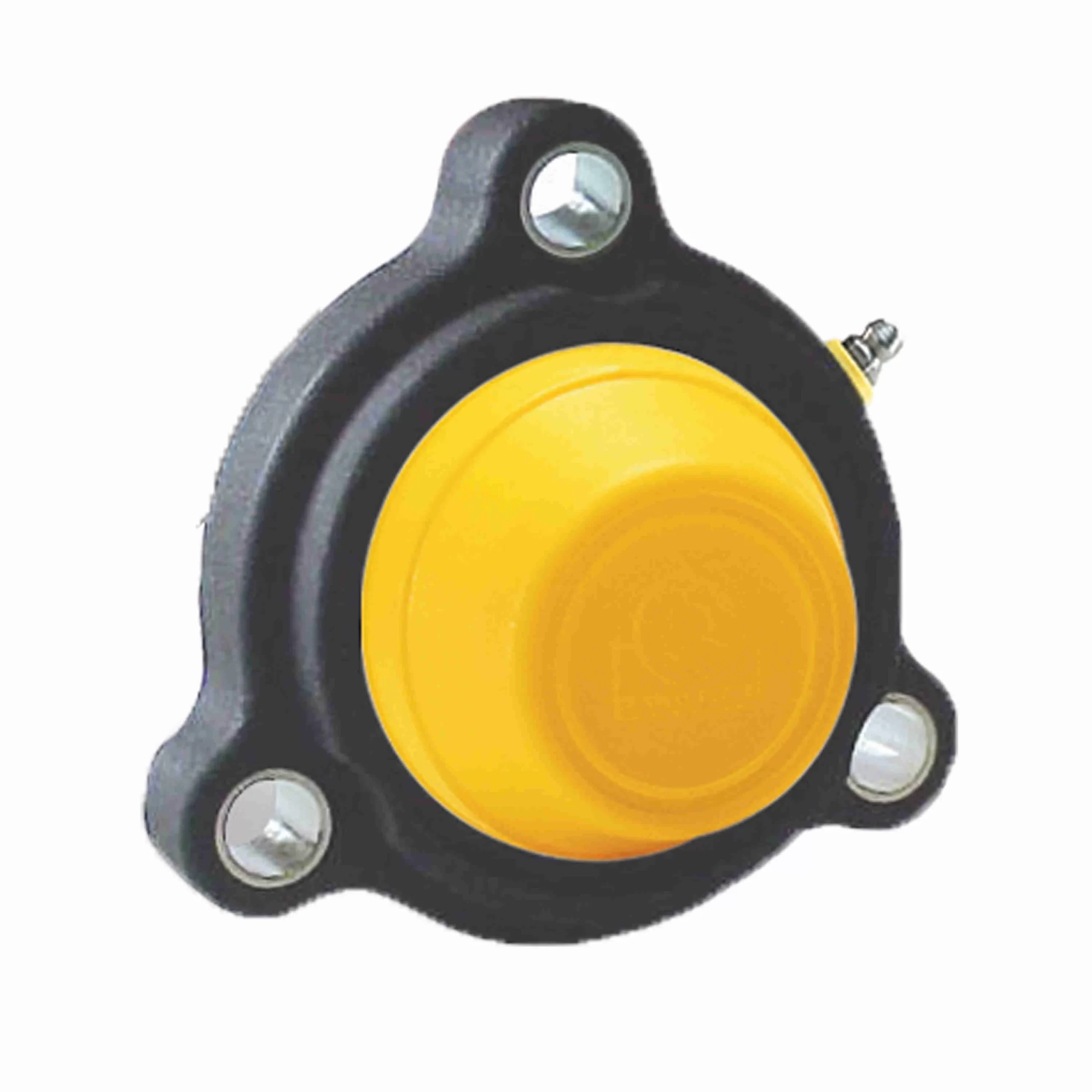

System Plast Mounted Polyamide Three Bolt Flange Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCFG206-30M-SS-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 52206GR/SS |
| Product Name | UCFG206-30M-SS-CEC |
| Brand | System Plast |
| Weight | 0.77 lb |
| Package Length | 4.45 in |
| Package Width | 4.45 in |
| Package Height | 2.2 in |
| Internal Clearance | Standard |
| Insert Material | 400 Series Stainless Steel |
| Measure Units | Metric |
| Duty Series | Standard Duty |
| Bore Shape | Straight |
| Housing Base |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Solid |
| Housing Type | Flange, Three Bolt |
| Rolling Element | Ball Bearing |
| Insert No. | SS-SB206-30M RG |
| Housing Material | Polyamide |
| Expansion | No |
| Retainer Type | Ball Riding Retainer |
| Speed (Max) | 2900 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113586 |
| Part NumberiManufacturer catalog number | 52206GR/SS |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
