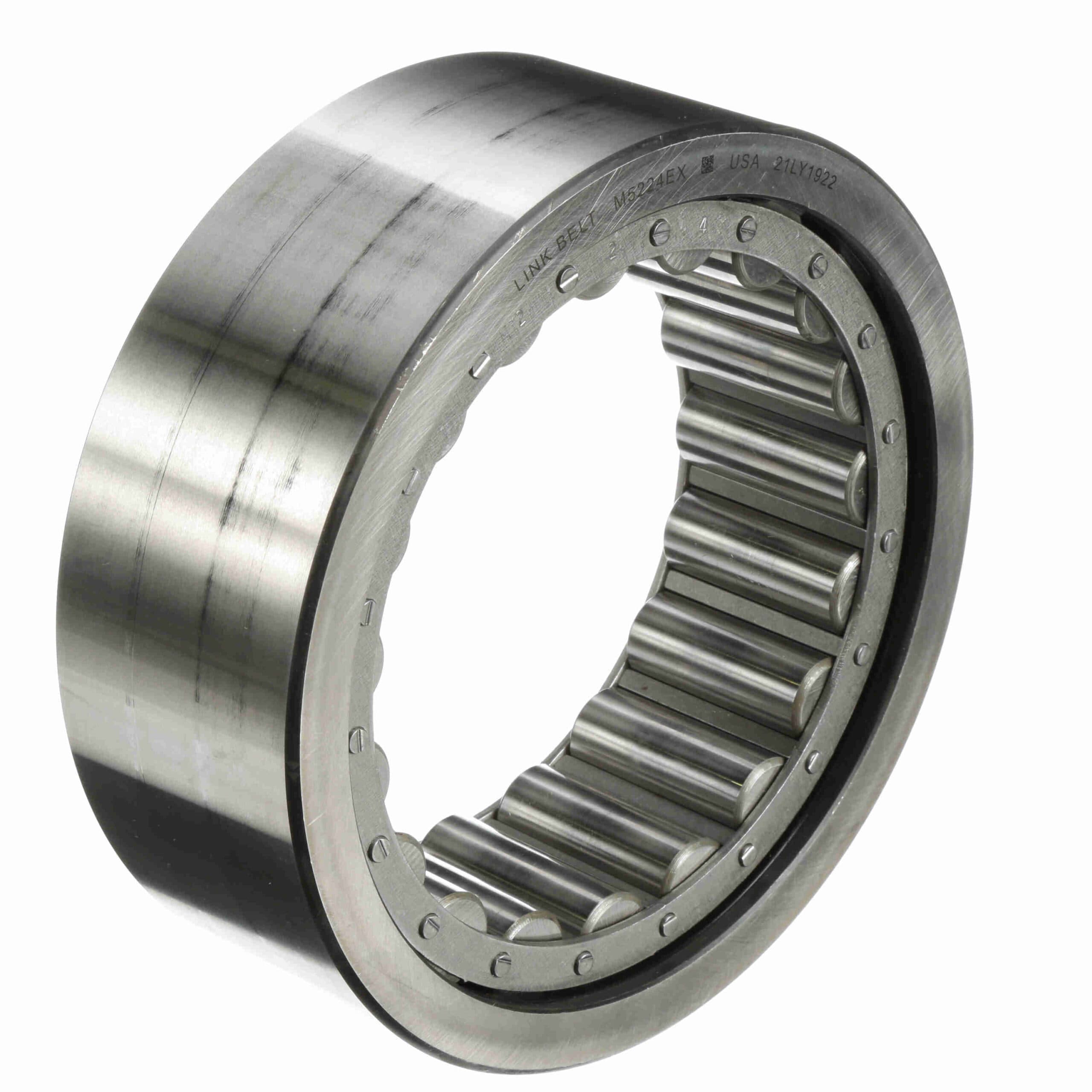

Rollway Radial Cylindrical Roller Bearing – Caged Roller - Straight Bore - Unsealed - 5224-U
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 5224U |
| Product Name | 5224-U |
| Brand | Rollway |
| Material | High Chromium Bearing Steel |
| Weight | 20.71 lb |
| Package Length | 9 in |
| Package Width | 9.9 in |
| Package Height | 5.7 in |
| Cage Material | Brass |
| Outer Race Configuration | Non-Separable |
| Seal Type | Unsealed |
| Bore Type | Straight |
| Radial Clearance |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Normal |
| Misalignment | No |
| Number of Rows | 1 |
| Rolling Element | Cylindrical Roller |
| Static Load Rating (lb) | 198, 060 lb |
| Sealed | None |
| Full Complement/Caged | Caged |
| Duplexing | No |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113593 |
| Part NumberiManufacturer catalog number | 5224U |
| BrandiManufacturer or product brand | Rollway |
| CategoryiCatalog classification | Bearings > Cylindrical Bearings |
