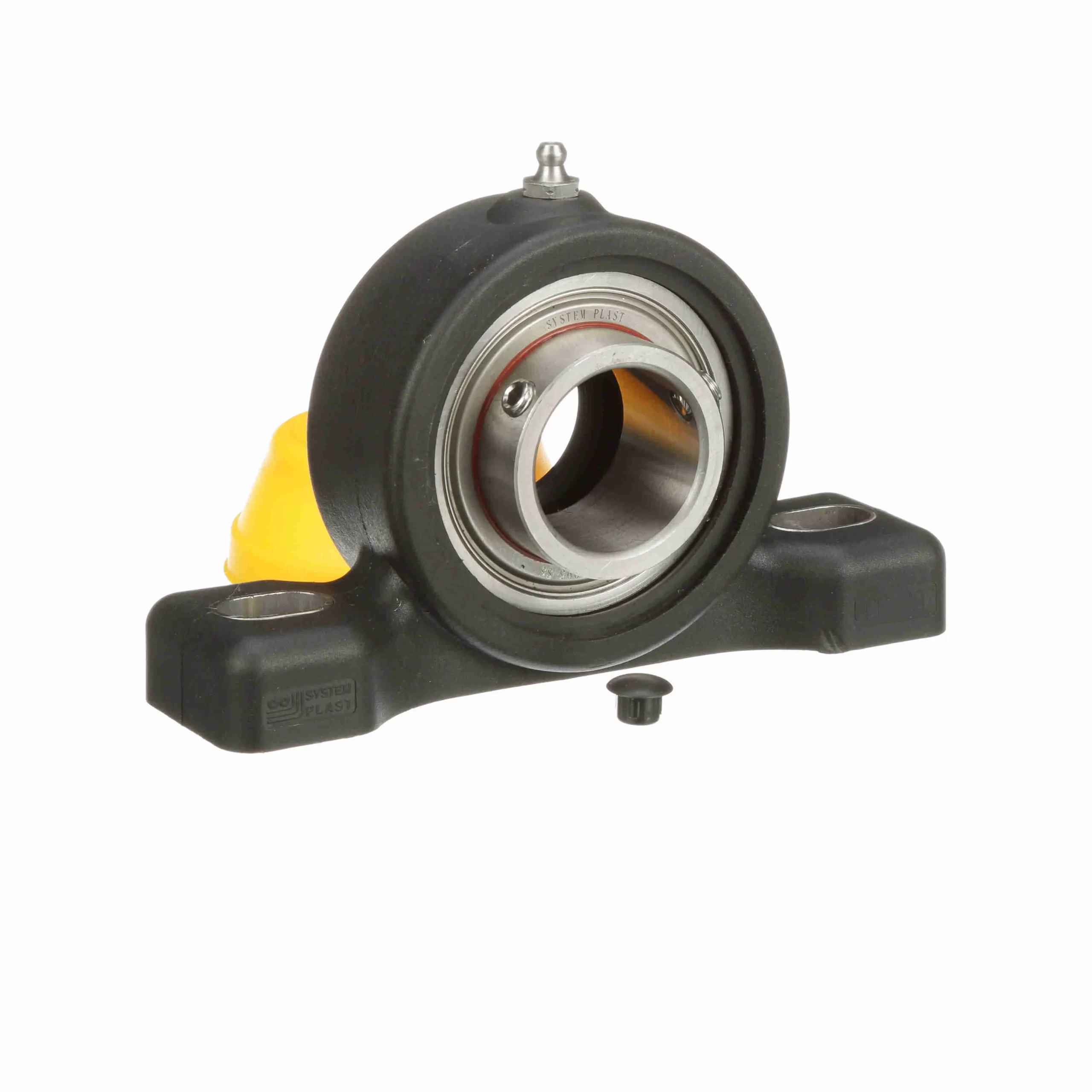

System Plast Mounted Polyamide Two Bolt Pillow Block Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCP205-25M-SS-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 53205R/SS |
| Product Name | UCP205-25M-SS-CEC |
| Brand | System Plast |
| Weight | 0.86 lb |
| Package Length | 5.31 in |
| Package Width | 2.24 in |
| Package Height | 2.85 in |
| Insert No. | SS-SB205-25M RG |
| Housing Type | Pillow Block, Two Bolt |
| Housing Base | Solid |
| Rolling Element | Ball Bearing |
| Internal Clearance | Standard |
| Measure Units |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Metric |
| Retainer Type | Ball Riding Retainer |
| Expansion | No |
| Housing Material | Polyamide |
| Duty Series | Standard Duty |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Lubrication | NSF H1 Food Grade Grease |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113625 |
| Part NumberiManufacturer catalog number | 53205R/SS |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
