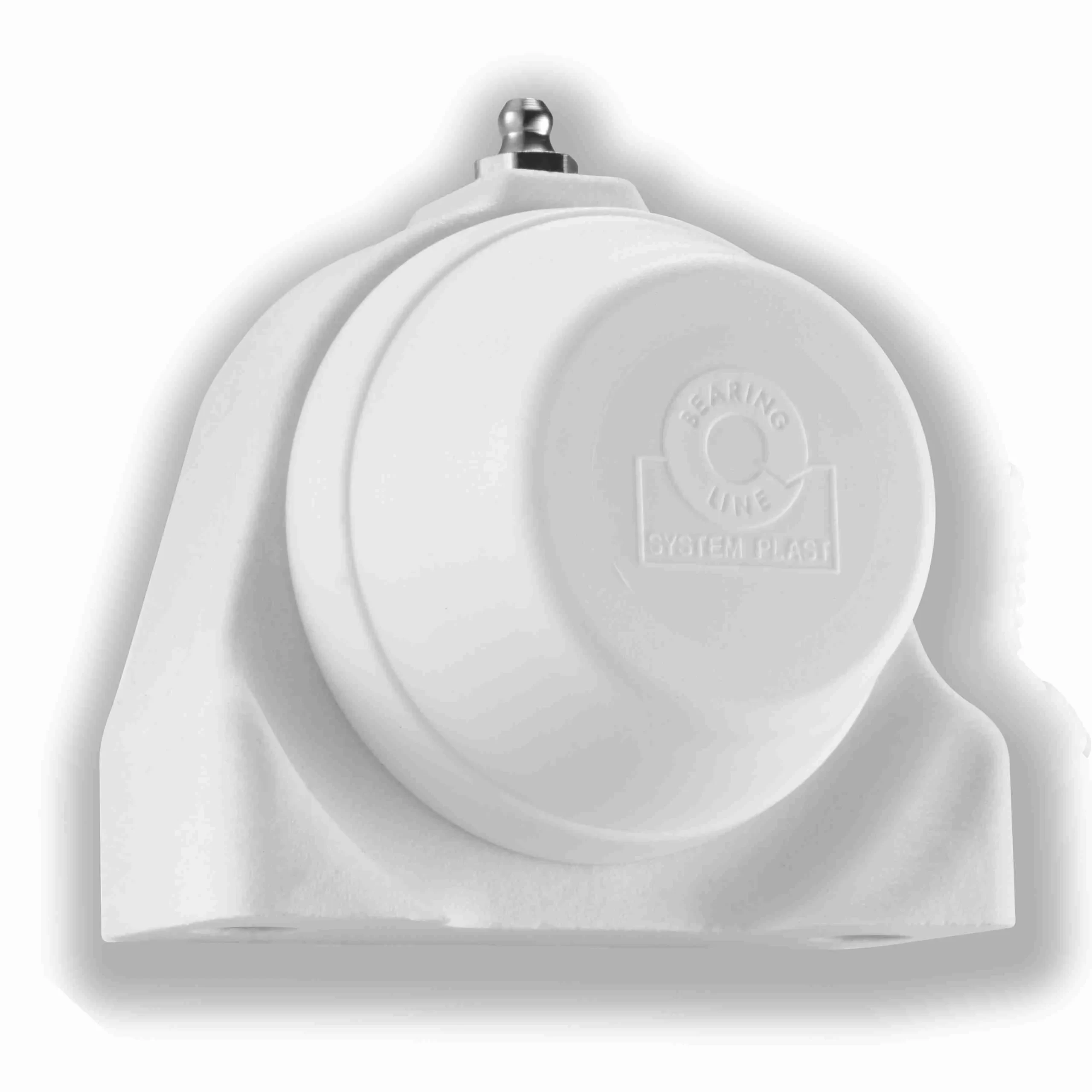

System Plast Mounted Nolu-Clean Tapped Base Pillow Block Ball Bearing - 52100 Bearing Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCPA206-30M-NC-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 53206CGAR |
| Product Name | UCPA206-30M-NC-CEC |
| Brand | System Plast |
| Weight | 1.23 lb |
| Package Length | 3.86 in |
| Package Width | 2.4 in |
| Package Height | 3.35 in |
| Speed (Max) | 2900 |
| Expansion | No |
| Insert Material | 52100 Bearing Steel |
| Housing Base | Solid |
| Housing Material | Nolu-Clean |
| Measure Units |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Metric |
| Housing Type | Pillow Block, Tapped Base |
| Internal Clearance | Standard |
| Insert No. | SB206-30M RG |
| Rolling Element | Ball Bearing |
| Duty Series | Standard Duty |
| Retainer Type | Ball Riding Retainer |
| Misalignment | ±1.0° Misalignment - Static Only |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113634 |
| Part NumberiManufacturer catalog number | 53206CGAR |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
