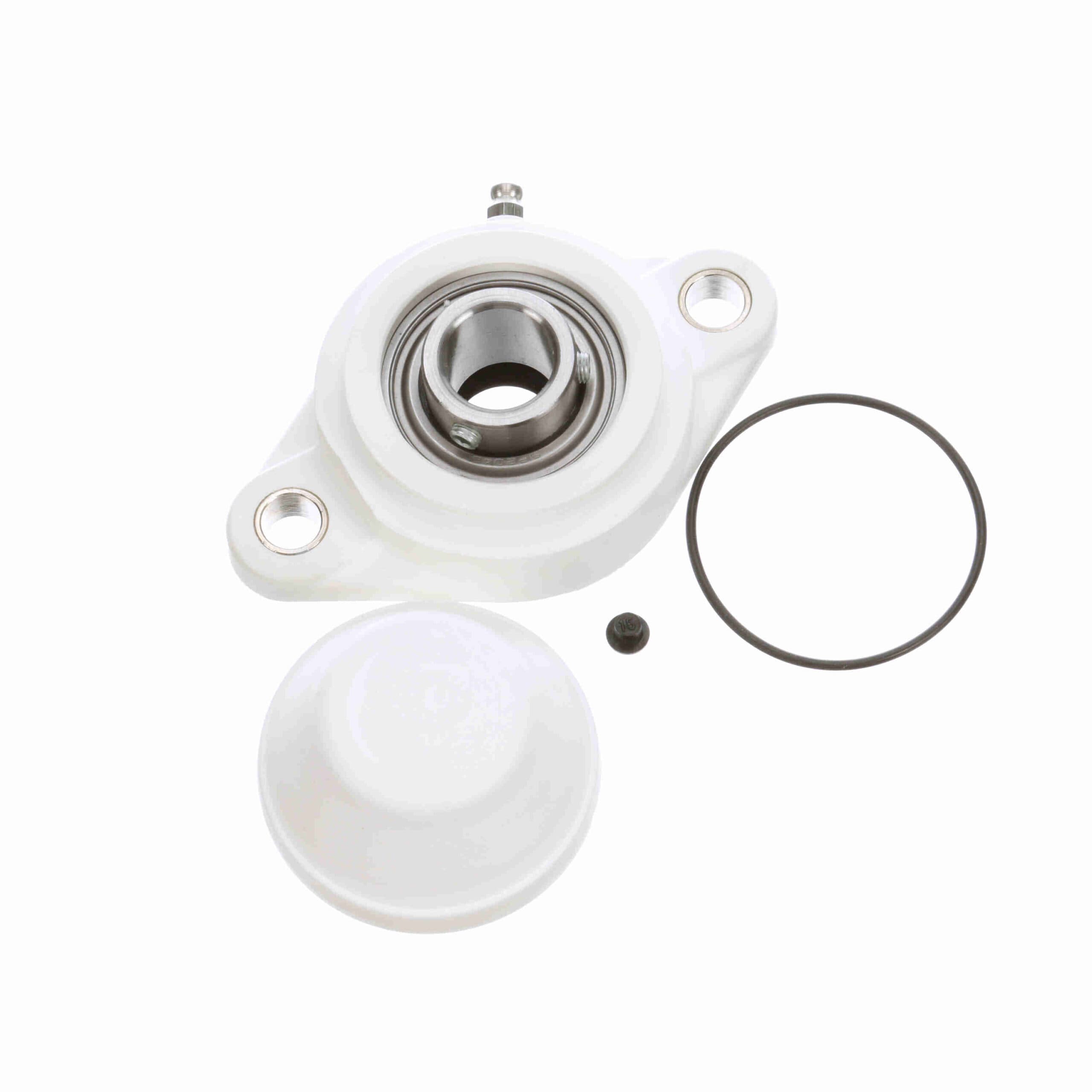

System Plast Mounted Nolu-Clean Two Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCFH204-20M-NC-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 54204CGR-EC |
| Product Name | UCFH204-20M-NC-CEC |
| Brand | System Plast |
| Weight | 1.05 lb |
| Package Length | 5.2 in |
| Package Width | 4.7 in |
| Package Height | 1.9 in |
| Internal Clearance | Standard |
| Rolling Element | Ball Bearing |
| Insert No. | SB204-20M RG |
| Duty Series | Standard Duty |
| Housing Material | Nolu-Clean |
| Housing Base |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Solid |
| Measure Units | Metric |
| Retainer Type | Ball Riding Retainer |
| Expansion | No |
| Radial Dynamic Load Capacity (lb) | 2, 214 |
| Locking Type | Setscrew |
| Maximum Operating Temperature | 180 °F |
| Housing Construction | One Piece |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113677 |
| Part NumberiManufacturer catalog number | 54204CGR-EC |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
