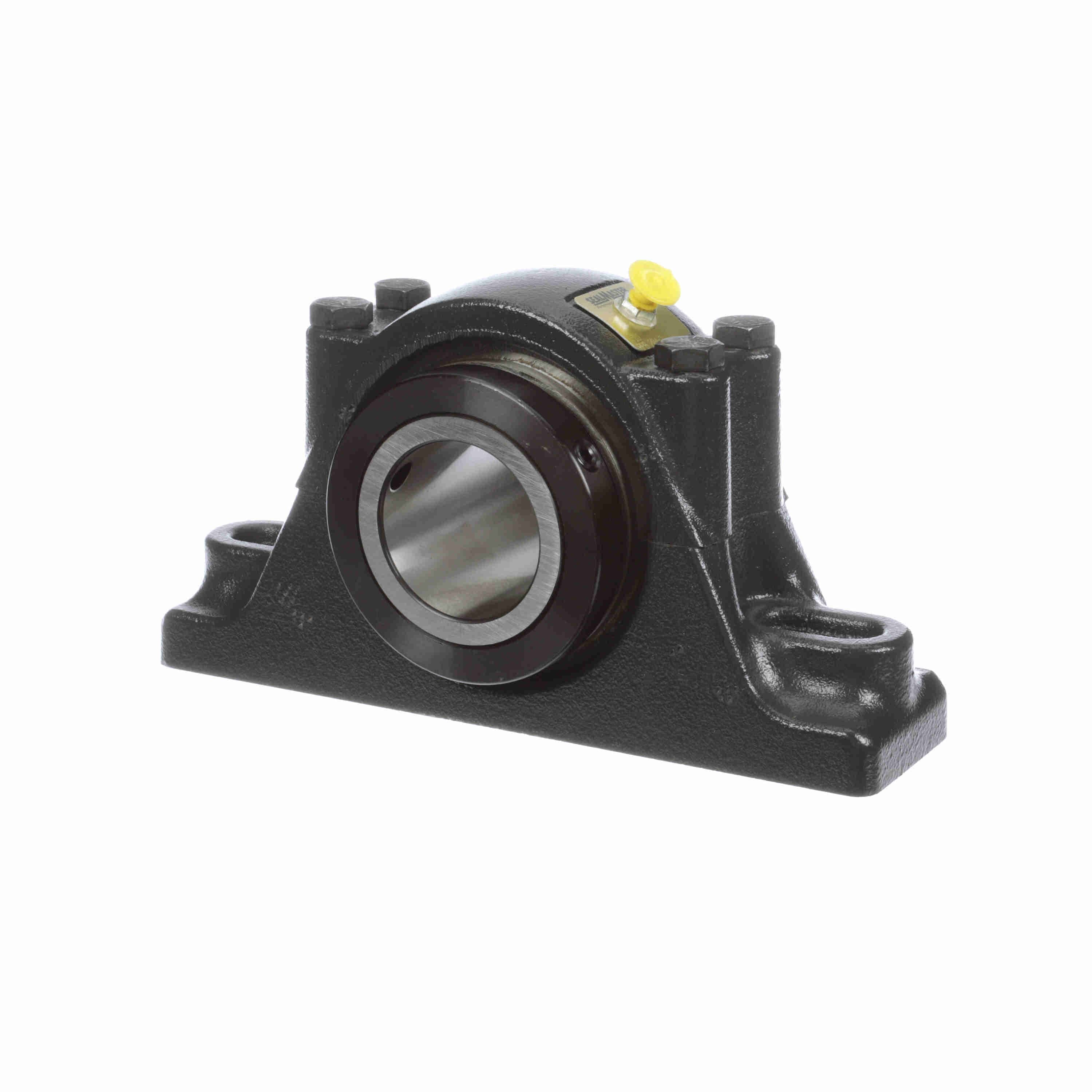

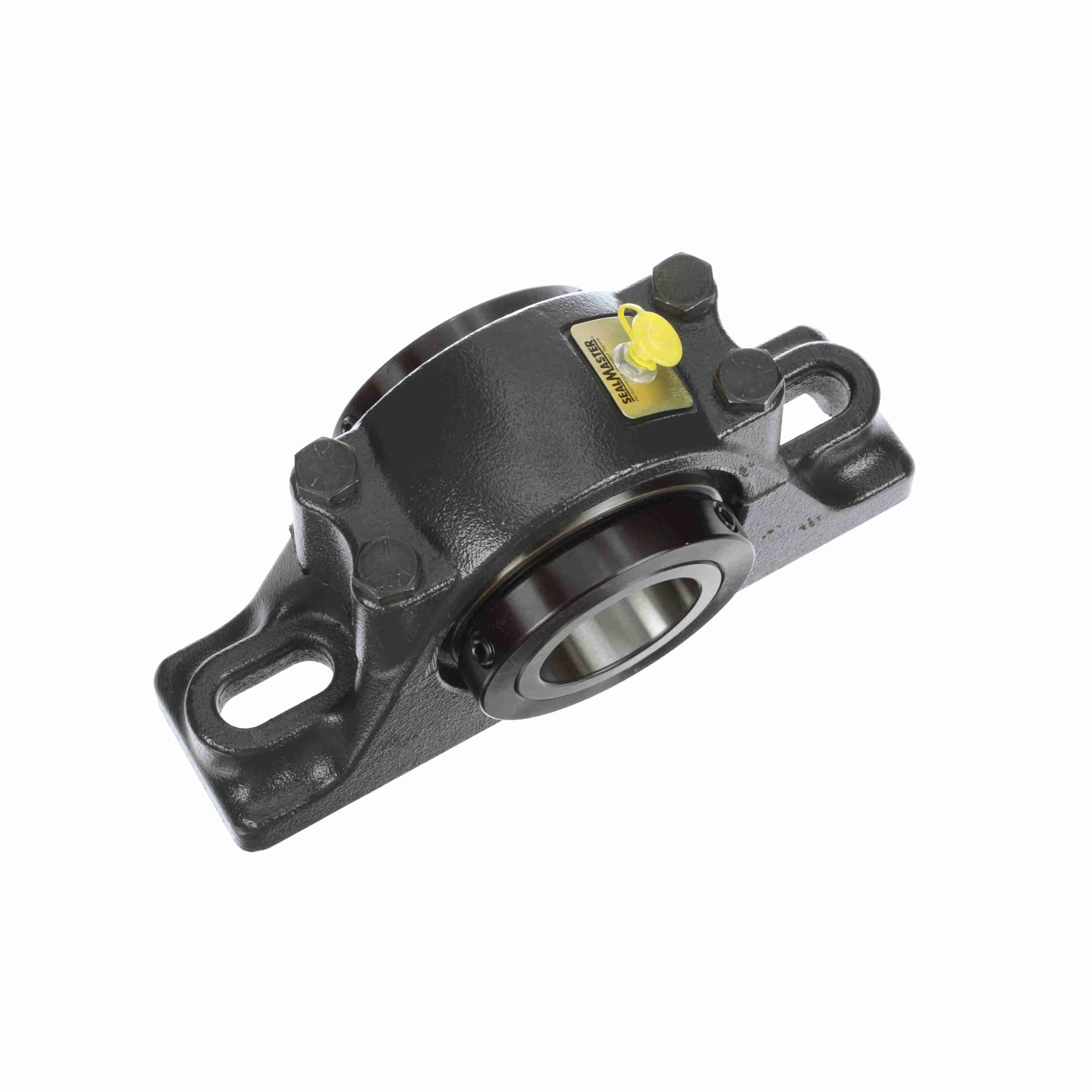

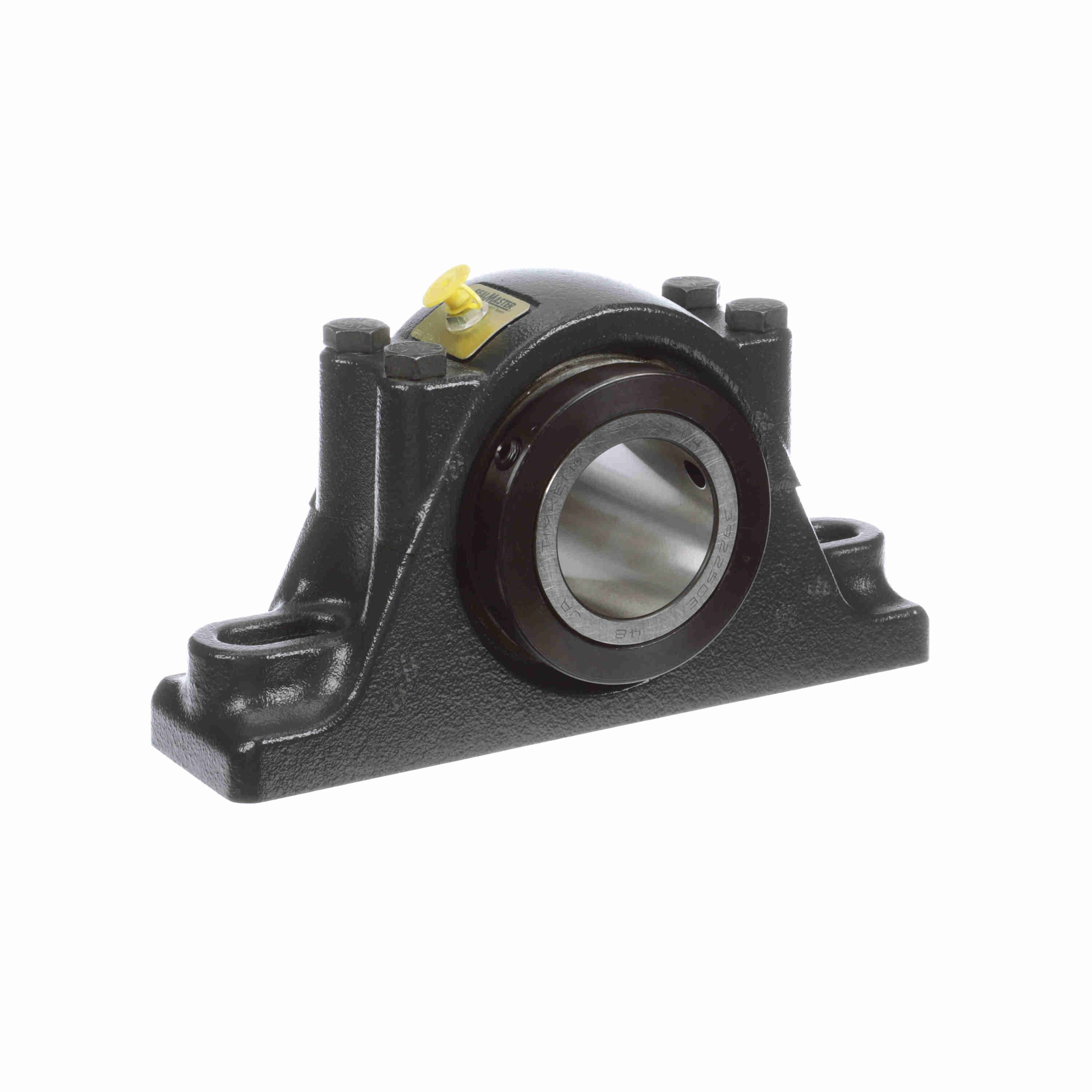

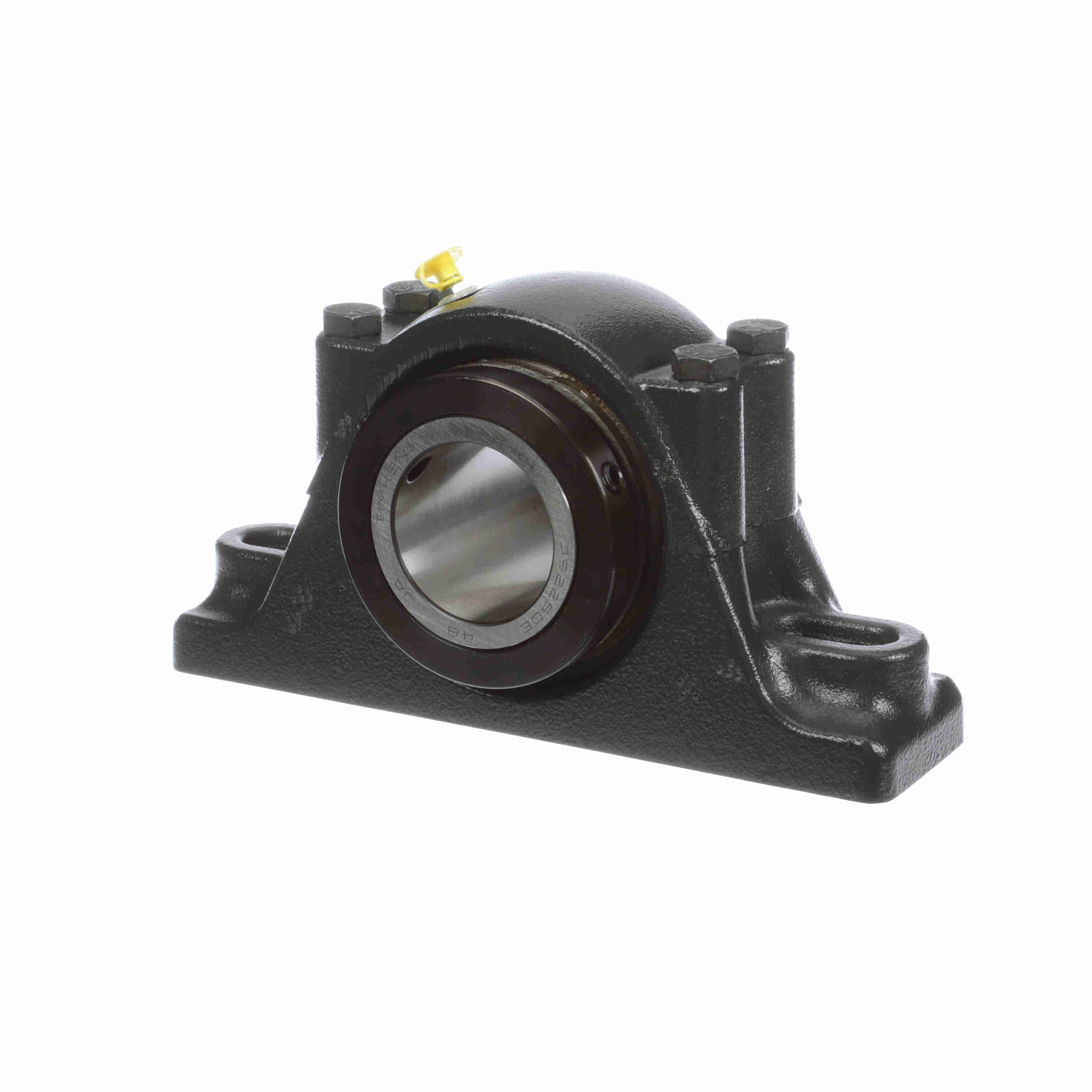

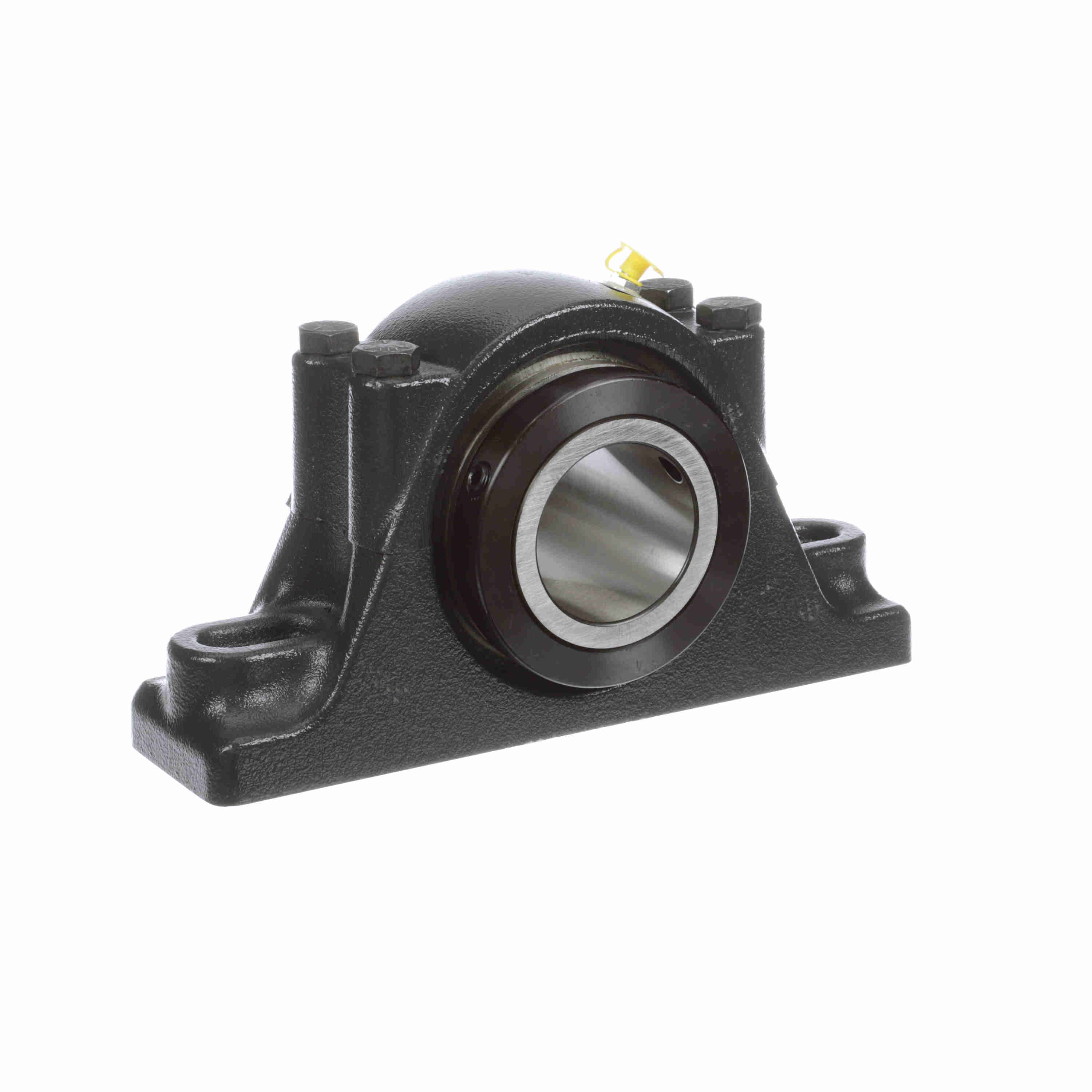

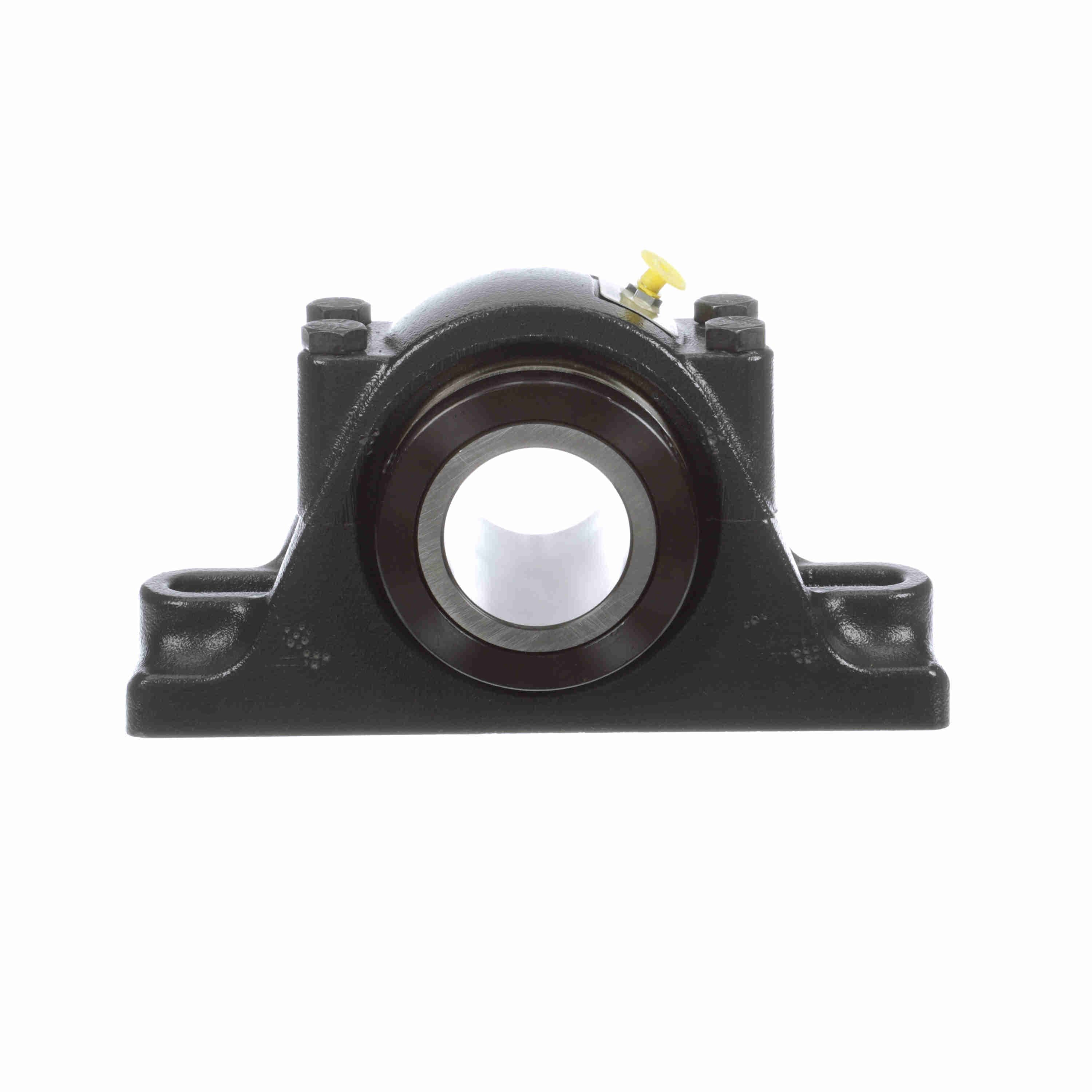

PILLOW BLK STK
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 550216 |
| Product Name | RPB 204-2 |
| Brand | Sealmaster |
| Weight | 21.095 lb |
| Package Length | 10.5 in |
| Package Width | 5.88 in |
| Package Height | 4.13 in |
| Base Width (in) | 2.75 in |
| Overall Length (in) | 10.375 in |
| Overall Height (in) | 5.625 in |
| Bolt Size (in) | 0.625 in |
| Overall Width (in) | 4 in |
| Bore Size (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1101.90 | — |
| 2.2500 in |
| Bolt Center Min (in) | 6.938 in |
| Centerline to Front Face (in) | 2 in |
| Bolt Center Max (in) | 8.688 in |
| Inner Race Length (in) | 4 in |
| Foot Height (in) | 1.625 in |
| Base to Center Height (in) | 2.75 in |
| Collar Outer Diameter (in) | 3.938 in |
| Housing Base | Solid |
| Measure Units | Inch |
| Seal Type | Felt Labyrinth Seal |
| Housing Material | Cast Iron |
| Housing Type | Pillow Block, Two Bolt |
| Insert Material | 52100 Bearing Steel |
| Expansion | No |
| Rolling Element | Tapered Roller |
| Housing Construction | Split Two Piece |
| Internal Clearance | Standard |
| Locking Type | Double Collar Mount |
| Radial Dynamic Load Capacity (lb) | 9,030 lb |
| Speed (Max) | 2000 |
| Misalignment | ±3.0° Misalignment - Static Only |
| Bore Shape | Straight |
| Housing Color | Gray |
| Retainer Material | Steel |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Bearing Insert Coating | Uncoated |
| Platform | RPB Series |
| End Cap | No |
| Replaceable Insert | Yes |
| Series | RPB |
| Grease Fitting Thread Size | 1/8 NPT |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Ability to Relubricate | Yes |
| Maximum Operating Temperature (F) | 220 °F |
| Lubrication Type | Lithium; EP; NLGI#2 |
| Duty/Series | Standard |
| Insert Number | RCI-204 |
| Housing Style | Pillow Block |
| HTC | 8483.20.8080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-113929 |
| Part NumberiManufacturer catalog number | 550216 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662288480020 |
| CategoryiCatalog classification | Bearings |
