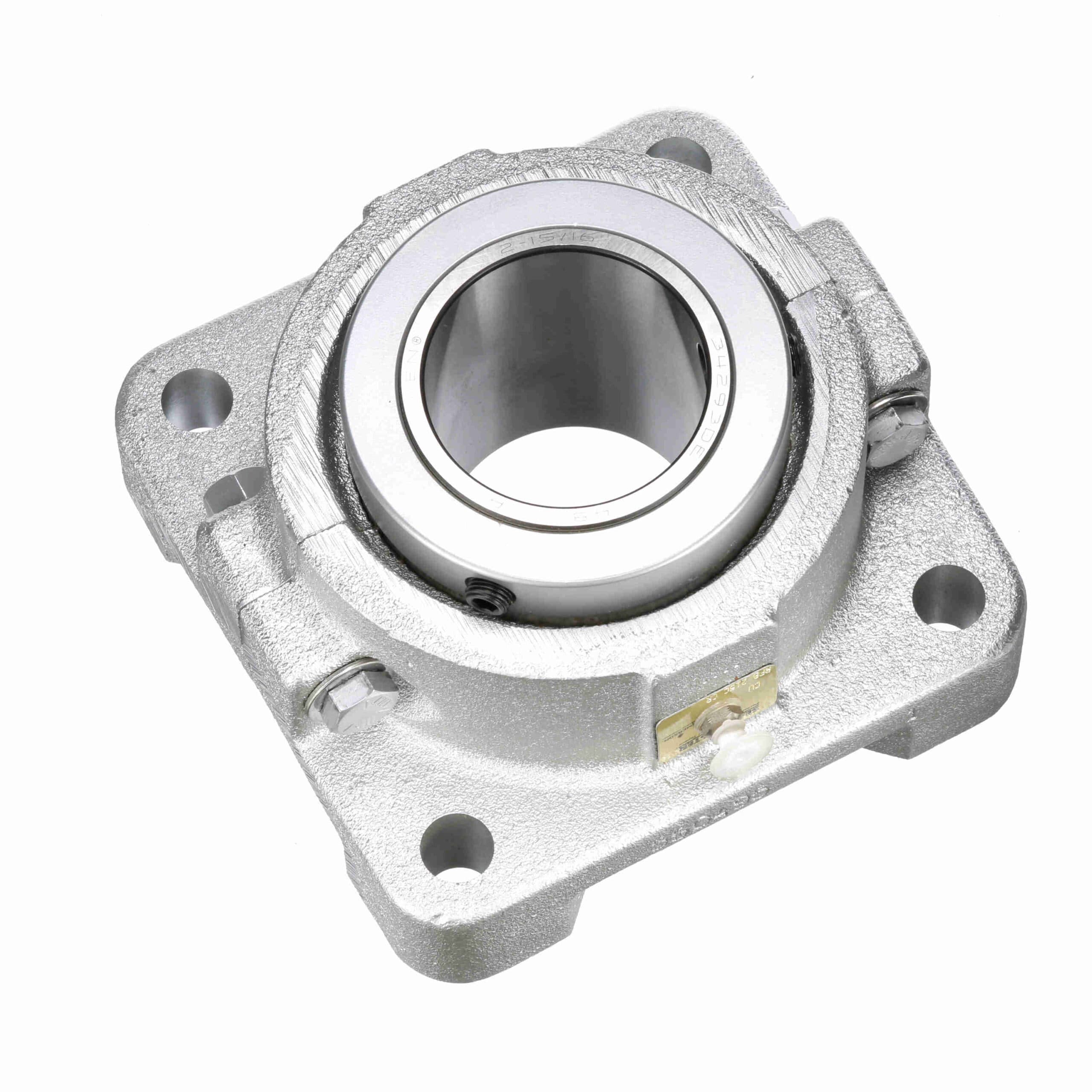

Sealmaster Mounted Flouropolymer Coated Cast Iron Four Bolt Flange Tapered Roller - 52100 Bearing Steel, Black Oxided - Double Collar Mount Lock - Corrosion Resistant - RFB 103C CR
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 556668 |
| Product Name | RFB 103C CR |
| Brand | Sealmaster |
| Weight | 6 lb |
| Package Length | 6.38 in |
| Package Width | 6.38 in |
| Package Height | 3.63 in |
| Measure Units | Inch |
| Expansion | Non-Expansion Bearing (Fixed) |
| Rolling Element | Tapered Roller |
| Housing Type | Flange, Four Bolt |
| Bore Shape | Straight |
| Housing Material |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Flouropolymer Coated Cast Iron |
| Housing Base | Solid |
| Seal Type | Single Lip Contact Seal |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Speed (Max) | 4000 |
| Pilot Configuration | No Pilot |
| Internal Clearance | Standard |
| Misalignment | ±3.0° Misalignment - Static Only |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-114411 |
| Part NumberiManufacturer catalog number | 556668 |
| BrandiManufacturer or product brand | Sealmaster |
| CategoryiCatalog classification | Bearings > Flange Units |
