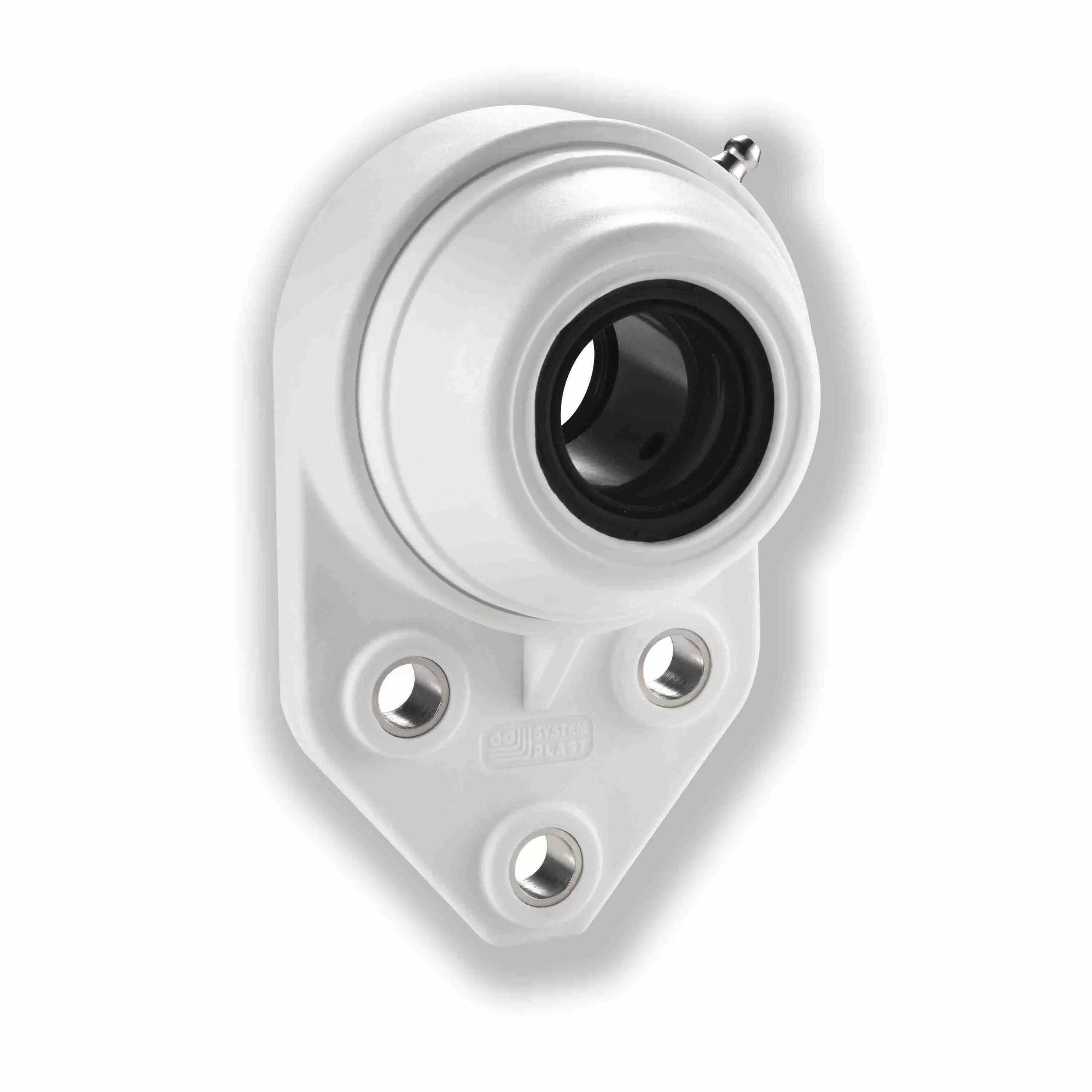

System Plast Mounted Nolu-Clean Three Bolt Flange Bracket Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Open End Cap/Back Seal included - UCFBZ204-20M-SS-NC-OEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 57205CGFRA/SS |
| Product Name | UCFBZ204-20M-SS-NC-OEC |
| Brand | System Plast |
| Weight | 1.09 lb |
| Package Length | 4.92 in |
| Package Width | 2.72 in |
| Package Height | 2.02 in |
| Insert No. | SS-SB204-20M RG |
| Retainer Type | Ball Riding Retainer |
| Housing Base | Solid |
| Insert Material | 400 Series Stainless Steel |
| Speed (Max) | 4200 |
| Duty Series |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Standard Duty |
| Measure Units | Metric |
| Internal Clearance | Standard |
| Rolling Element | Ball Bearing |
| Housing Material | Nolu-Clean |
| Bore Shape | Straight |
| Housing Type | Flange, Bracket, Three Bolt |
| Locking Type | Setscrew |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-114540 |
| Part NumberiManufacturer catalog number | 57205CGFRA/SS |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
