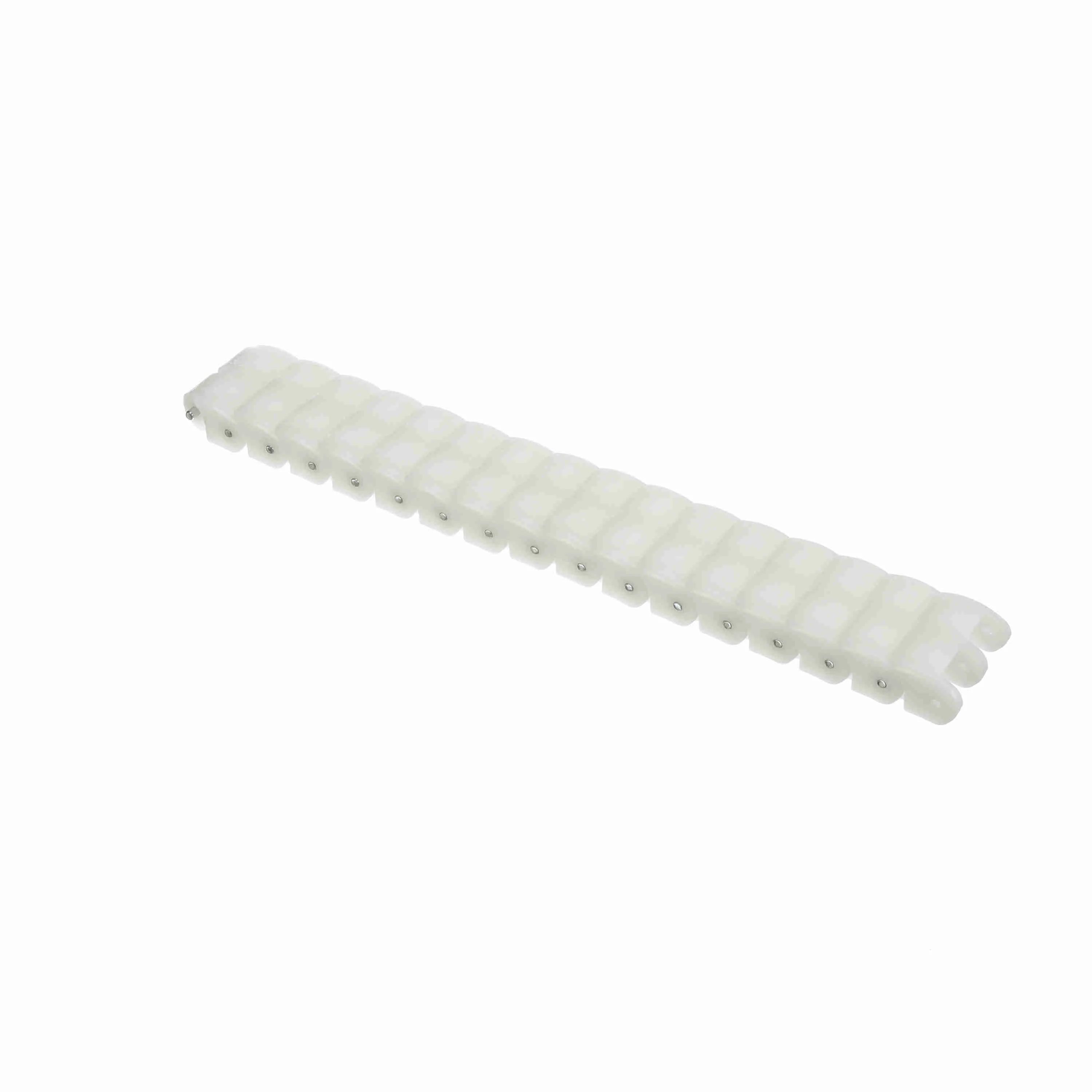

NYL DELRIN COUPLING CHAIN-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 630817 |
| Product Name | N617 COUPLING CH |
| Brand | Morse |
| Material | Delrin |
| Weight | 0.731 lb |
| Package Length | 8.5 in |
| Package Width | 1.5 in |
| Bore Size Max (in) | 2.25 in |
| Bore Type | Standard Bore |
| Bushing No. (TB) | 1,610 |
| Coupling Size | 617 |
| Coupling Type | Chain Coupling |
| Finished Bore Sizes |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $299.67 | — |
| 3/4, 7/8, 1, 1 1/8, 1 3/16, 1 1/4, 1 3/8, 1 9/16, 1 5/8, 1 3/4, 1 5/16 |
| Hub Diameter (in) | 3.375 in |
| Hub Diameter - Tapered Bore (in) | 3.25 in |
| Length Through Bore (in) | 1.1875 in |
| Length Through Bore - Tapered Bore (in) | 1 in |
| Lube/Non-Lube | Non-Lubricated |
| Measurement System | Imperial |
| Outside Diameter (in) | 4.9 in |
| Overall Length (in) | 2.75 in |
| Overall Length - Tapered Bore (in) | 2.375 in |
| Plain Bore Max | 2.25 |
| Plain Bore Stock (in) | 0.75 in |
| Style | N600 |
| HTC | 3926.90.6090 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-115123 |
| Part NumberiManufacturer catalog number | 630817 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288499596 |
| CategoryiCatalog classification | Couplings > Chain Couplings |
