Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 700163 |

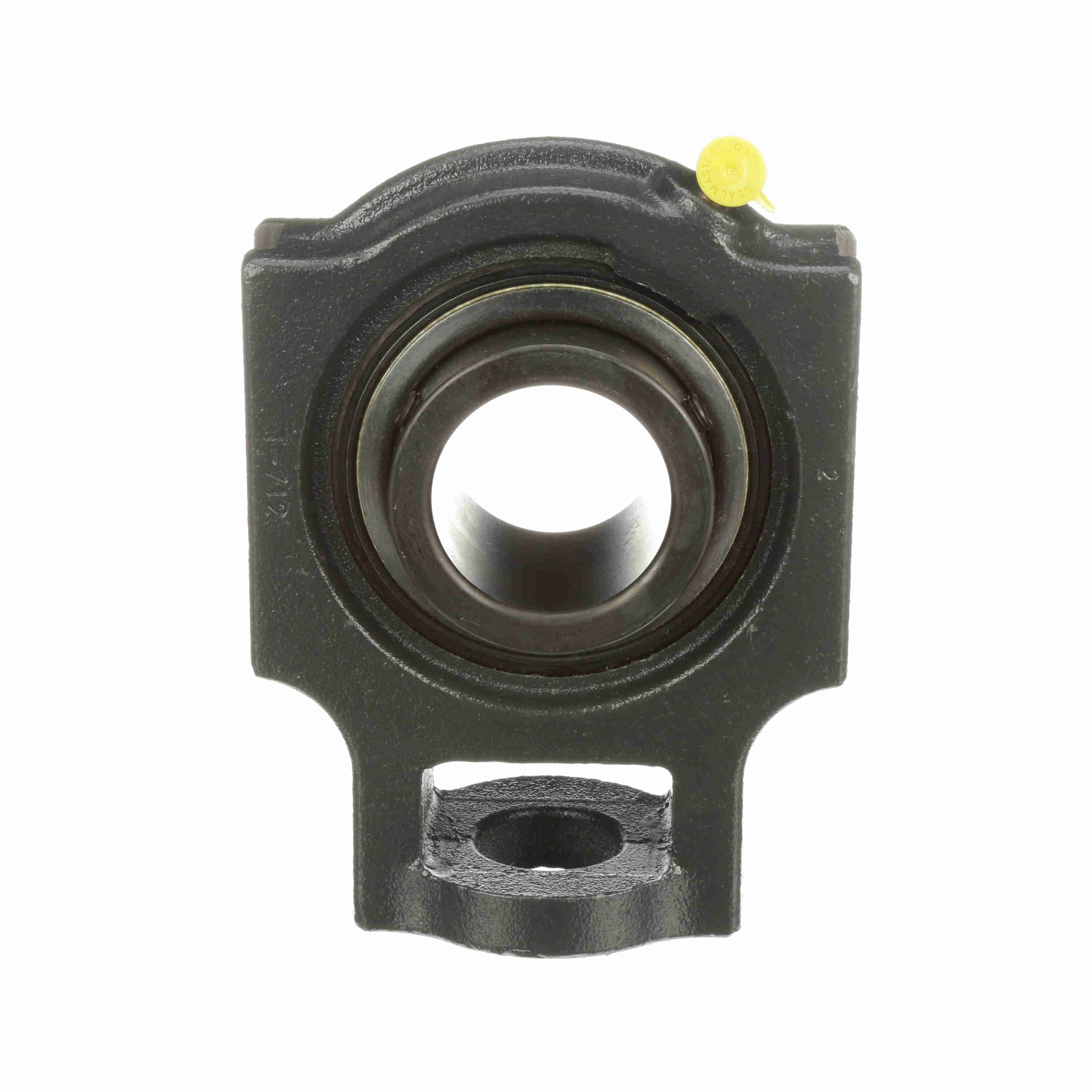

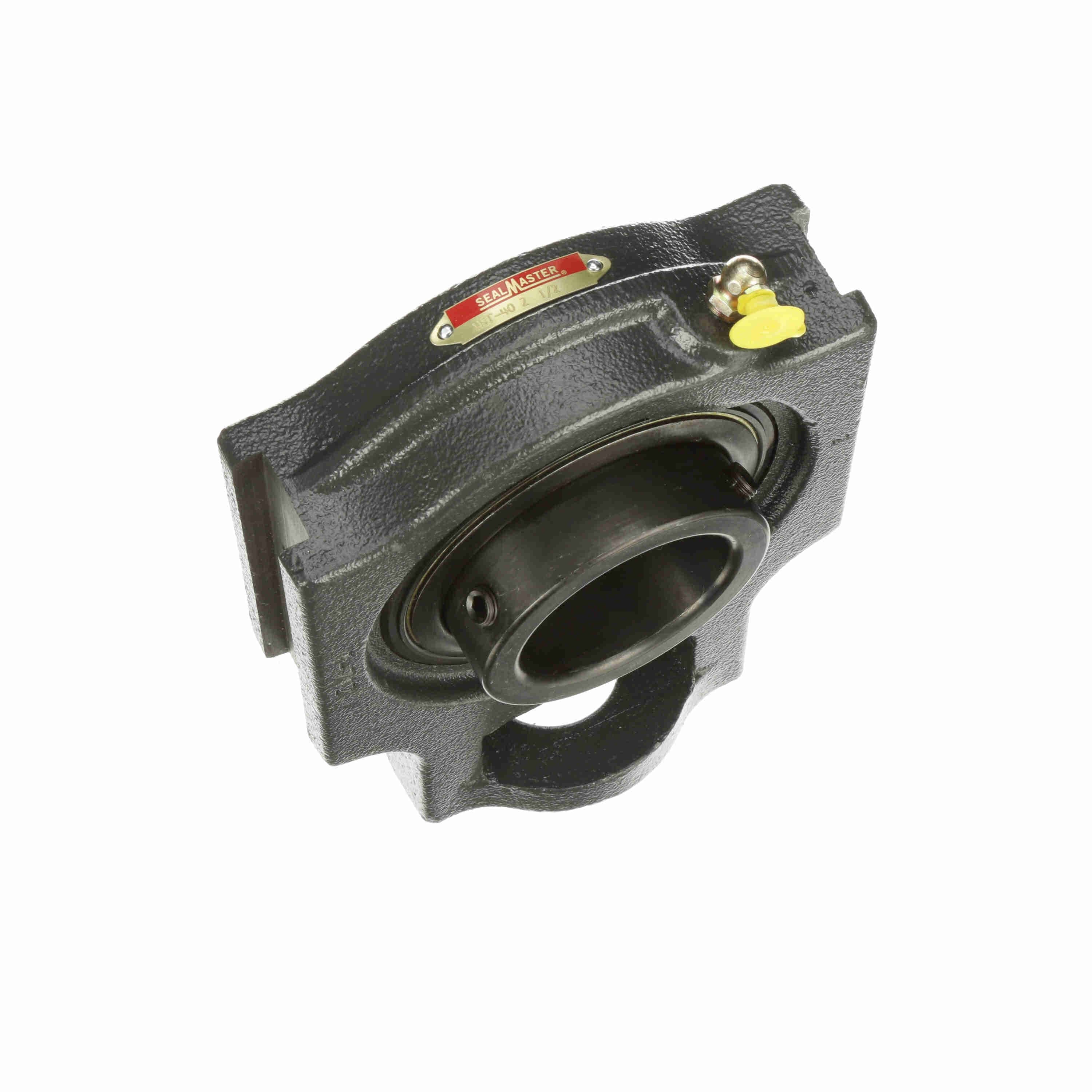

| Product Name | MST-40 |
| Brand | Sealmaster |
| Weight | 19.5 lb |
| Package Length | 10.38 in |
| Package Width | 6.5 in |
| Package Height | 3 in |
| Overall Length (in) | 8.81 in |
| Overall Width (in) | 3.38 in |
| Overall Height (in) | 6.56 in |
| Bore Diameter (in) | 2.5 in |
| Base to Center Height (in) | 5.38 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1092.65 | — |
| Length Through Bore (in) |
| 2.748 in |
| Slot Width (in) | 1.063 in |
| Slot Spacing (in) | 5.938 in |
| Centerline to Outermost Bearing Face (in) | 1.688 in |
| Rolling Element | Ball Bearing |
| Housing Construction | One Piece |
| Bore Shape | Straight |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Outer Ring Land Profile | Standard |
| Series | MST |
| Cage Material | Brass |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Take-Up Block, Wide Slot |
| Slot Length (in) | 4.75 in |
| Housing Style | Take-Up Block |
| Adjusting Screw Clearance Hole Diameter (in) | 1.63 in |
| Inner Race Heat Treat Method | Zone-Hardened |
| Carriage Bolt Size (in) | 1.25 in |
| Ability to Relubricate | Yes |
| Adjusting Screw Square Nut Seat Height (in) | 2.75 in |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Size Code | 2-211 |
| Shaft Locking Type | Set Screw |
| Maximum Speed (RPM) | 2500 rpm |
| Bearing Insert Material | 52100 Bearing Steel |
| Vibration Frequency Outer Ring Defect | 0.0684 cps |
| Dynamic Load Rating (lb) | 13,971 lb |
| Static Load Rating (lb) | 10,063 lb |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Type | Medium Duty |
| Fixed vs. Expansion | Fixed |
| Bearing Insert Finish | Black Oxide |
| Housing Coating | Powder Coated |
| Vibration Frequency Roller Spin | 0.0451 cps |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Insert | 3-28 |
| Vibration Frequency Inner Ring Defect | 0.0982 cps |
| Cage Type | Land Riding Retainer |
| End Cap Available | No |
| Grease Fitting Thread Size | 1/8 NPT |
| Max Operating Temperature (F) | 220 °F |
| Radial Clearance | Standard |
| Inner Ring Outside Diameter (in) | 3.433 in |
| Housing Material | Cast Iron |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-115375 |
| Part NumberiManufacturer catalog number | 700163 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461001400 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
