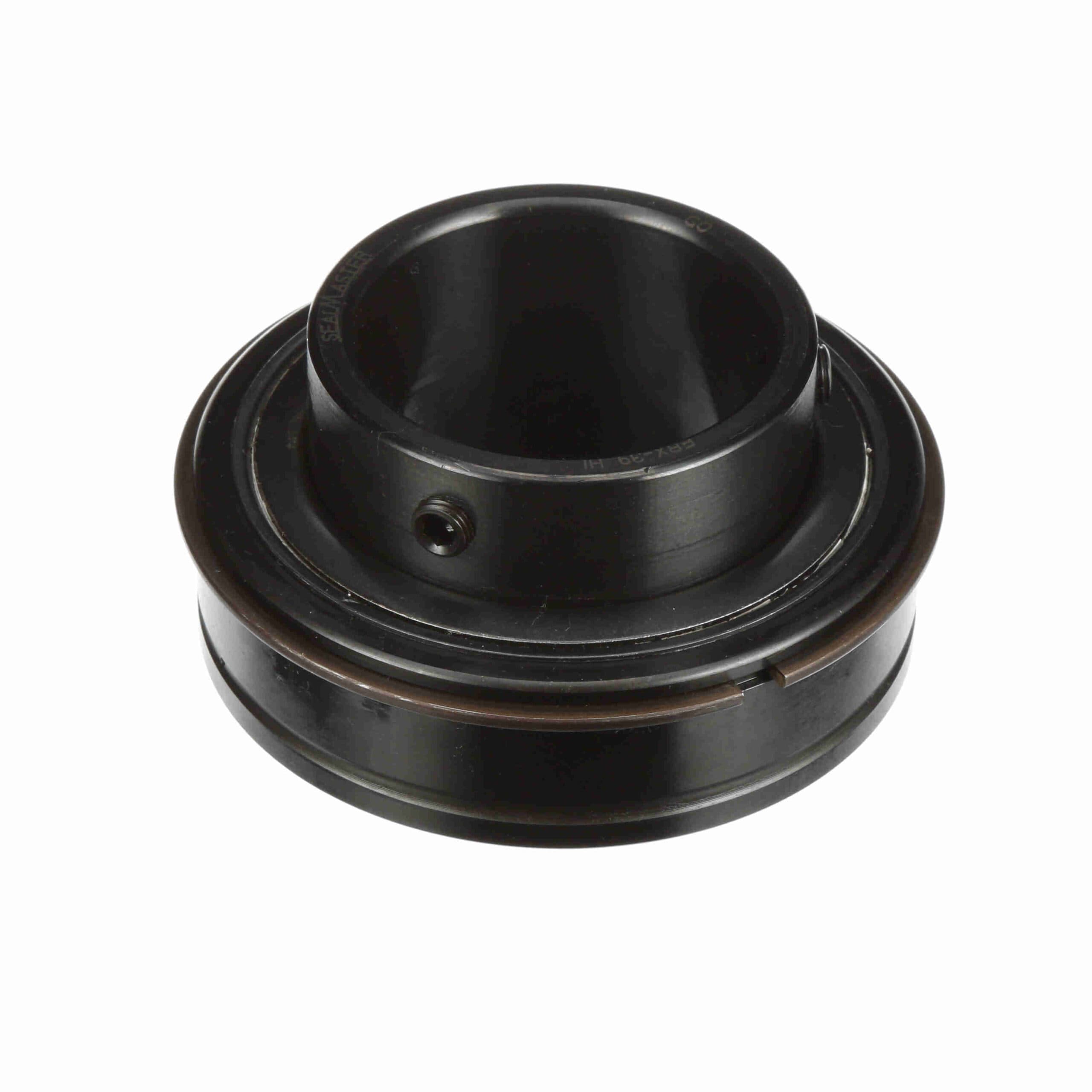

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ERX-64 HI
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 700940 |
| Product Name | ERX-64 HI |
| Brand | Sealmaster |
| Weight | 22 lb |
| Package Length | 7.88 in |
| Package Width | 7.75 in |
| Package Height | 4.69 in |
| Measure Units | Inch |
| Seal Type | High Temp Labyrinth |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Rolling Element | Ball Bearing |
| Housing Type | Insert (ER Style) |
| Bore Shape |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Straight |
| Radius | 0.12 |
| Internal Clearance | Increased |
| Expansion | No |
| Misalignment | None |
| Radial Dynamic Load Capacity (lb) | 29, 905 lb |
| Speed (Max) (rpm) | 700 rpm |
| Misalignment Type | Static Only |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-115742 |
| Part NumberiManufacturer catalog number | 700940 |
| BrandiManufacturer or product brand | Sealmaster |
| CategoryiCatalog classification | Bearings > Bearing Inserts |
