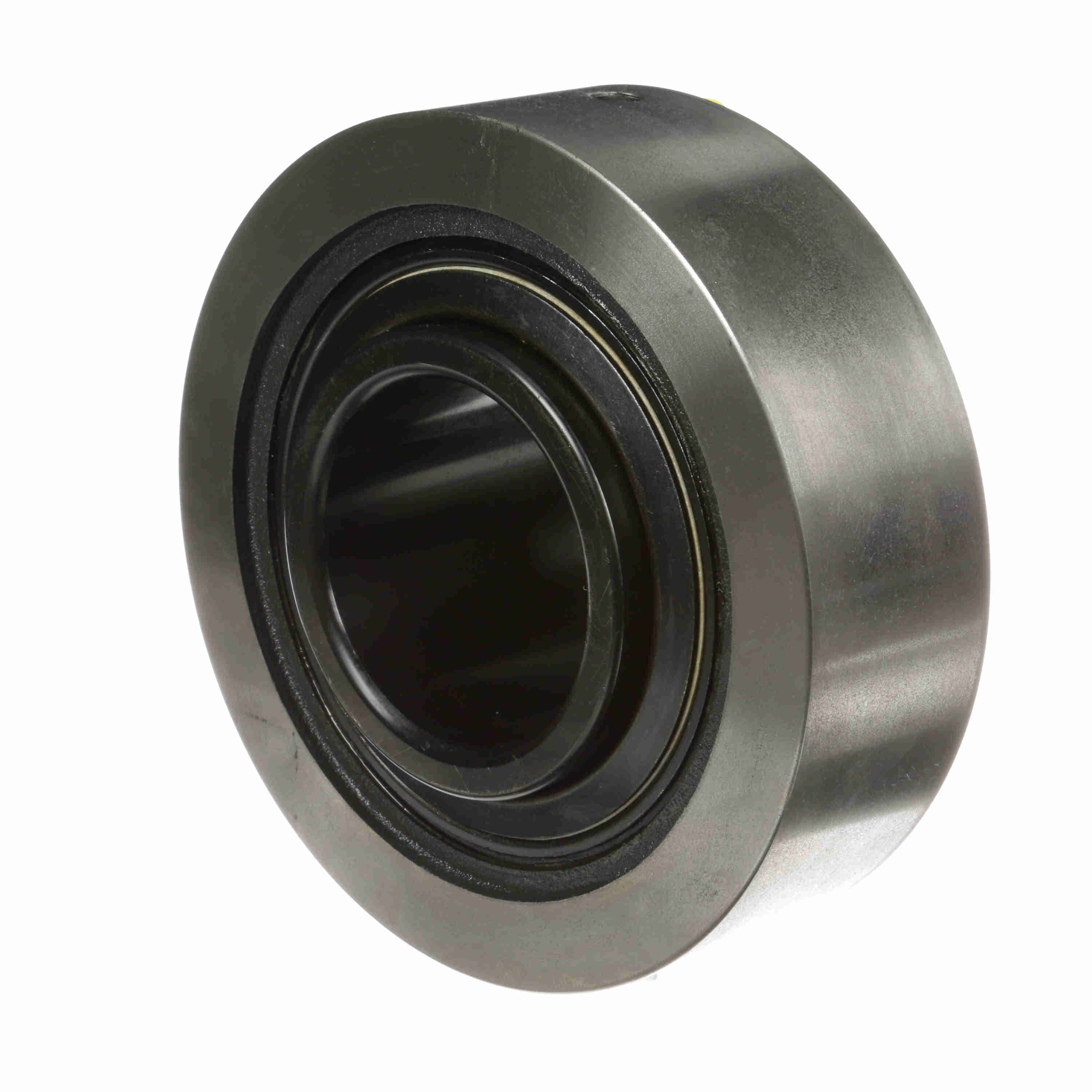

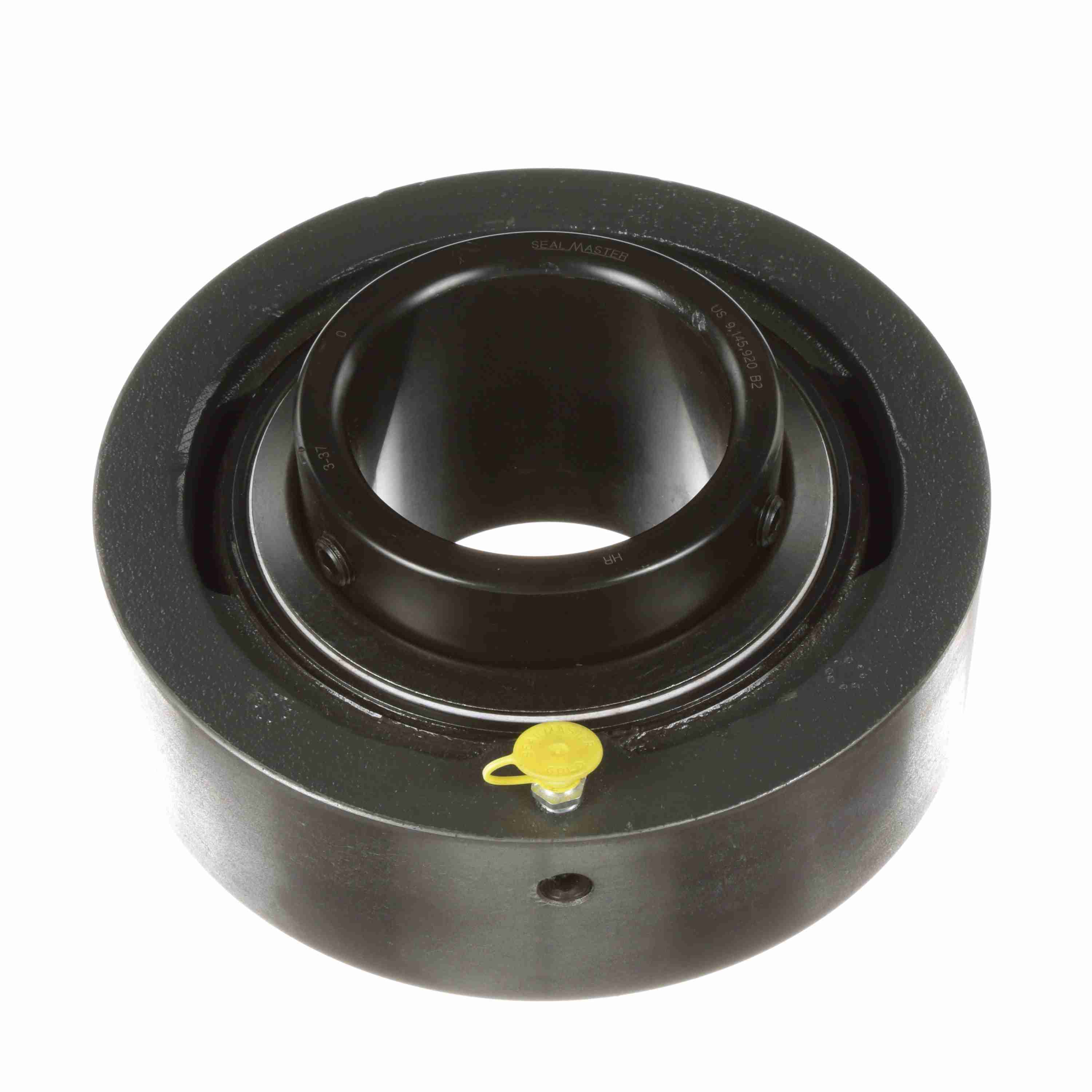

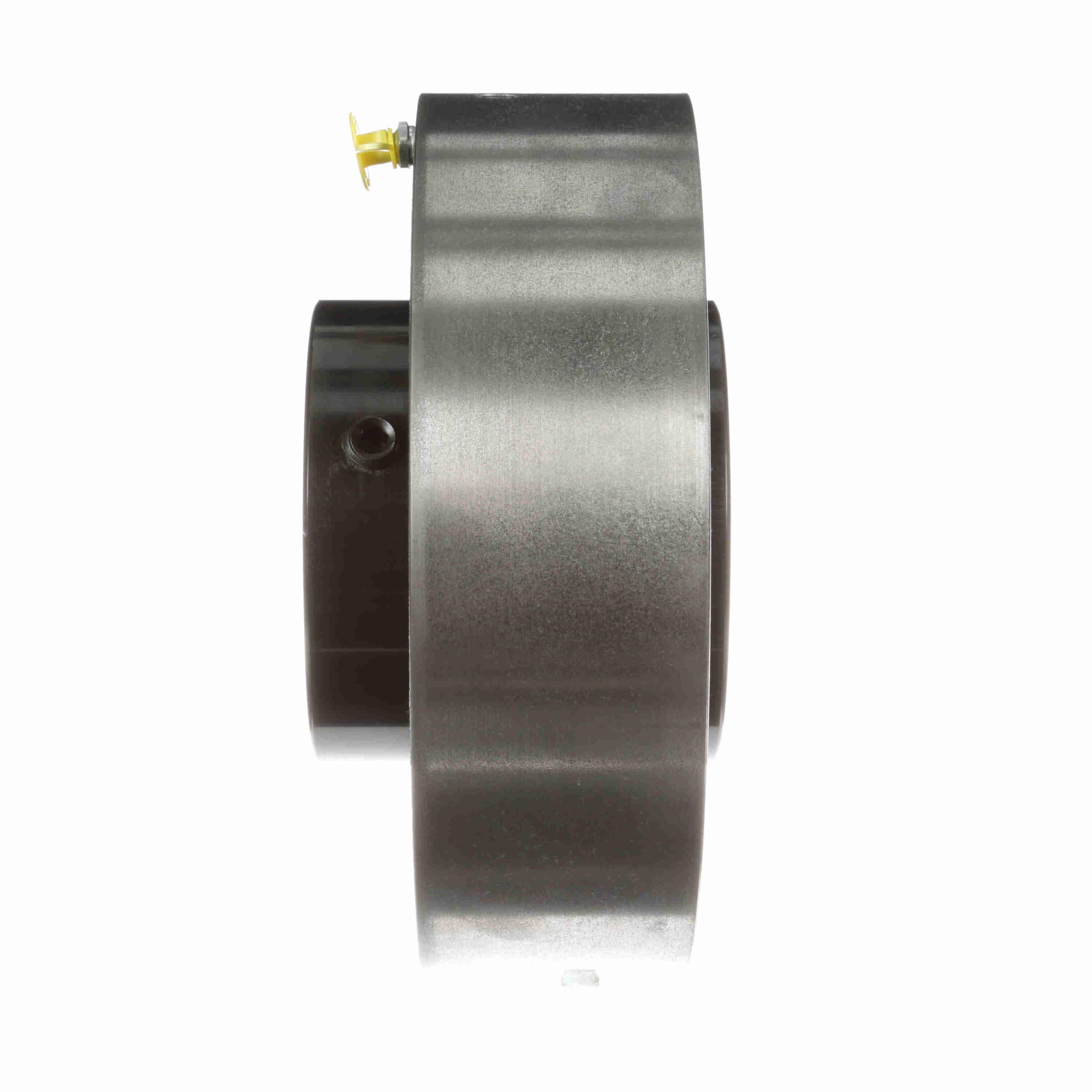

GEN GOLD SET SCREW
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 701937 |
| Product Name | MSC-55 |
| Brand | Sealmaster |
| Weight | 25.8 lb |
| Package Length | 8.75 in |
| Package Width | 8.56 in |
| Package Height | 4 in |
| Overall Height (in) | 8.19 in |
| Overall Length (in) | 8.19 in |
| Overall Width (in) | 3.78 in |
| Bore Diameter (in) | 3.4375 in |
| Length Through Bore (in) | 3.781 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $2415.52 | — |
| Centerline to Outermost Bearing Face (in) |
| 2.22 in |
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Housing Color | Gray |
| Outer Ring Land Profile | Standard |
| Series | MSC |
| Cage Material | Brass |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Cartridge, Cylindrical |
| Outside Diameter (in) | 8.188 |
| Housing Style | Cartridge Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Insert | 3-37 |
| Housing Material | Cast Iron |
| Radial Clearance | Standard |
| Static Load Rating (lb) | 16,301 lb |
| End Cap Available | No |
| Bearing Insert Finish | Black Oxide |
| Size Code | 2-38 |
| Grease Fitting Thread Size | 1/8 NPT |
| Dynamic Load Rating (lb) | 21,566 lb |
| Shaft Locking Type | Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Insert Material | 52100 Bearing Steel |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Fixed vs. Expansion | Fixed |
| Maximum Speed (RPM) | 2000 rpm |
| Inner Ring Outside Diameter (in) | 4.391 in |
| Max Operating Temperature (F) | 220 °F |
| Bearing Type | Medium Duty |
| Cage Type | Land Riding Retainer |
| Housing Width (in) | 2.5 in |
| HTC | 8482.10.5056 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-116011 |
| Part NumberiManufacturer catalog number | 701937 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461014462 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
