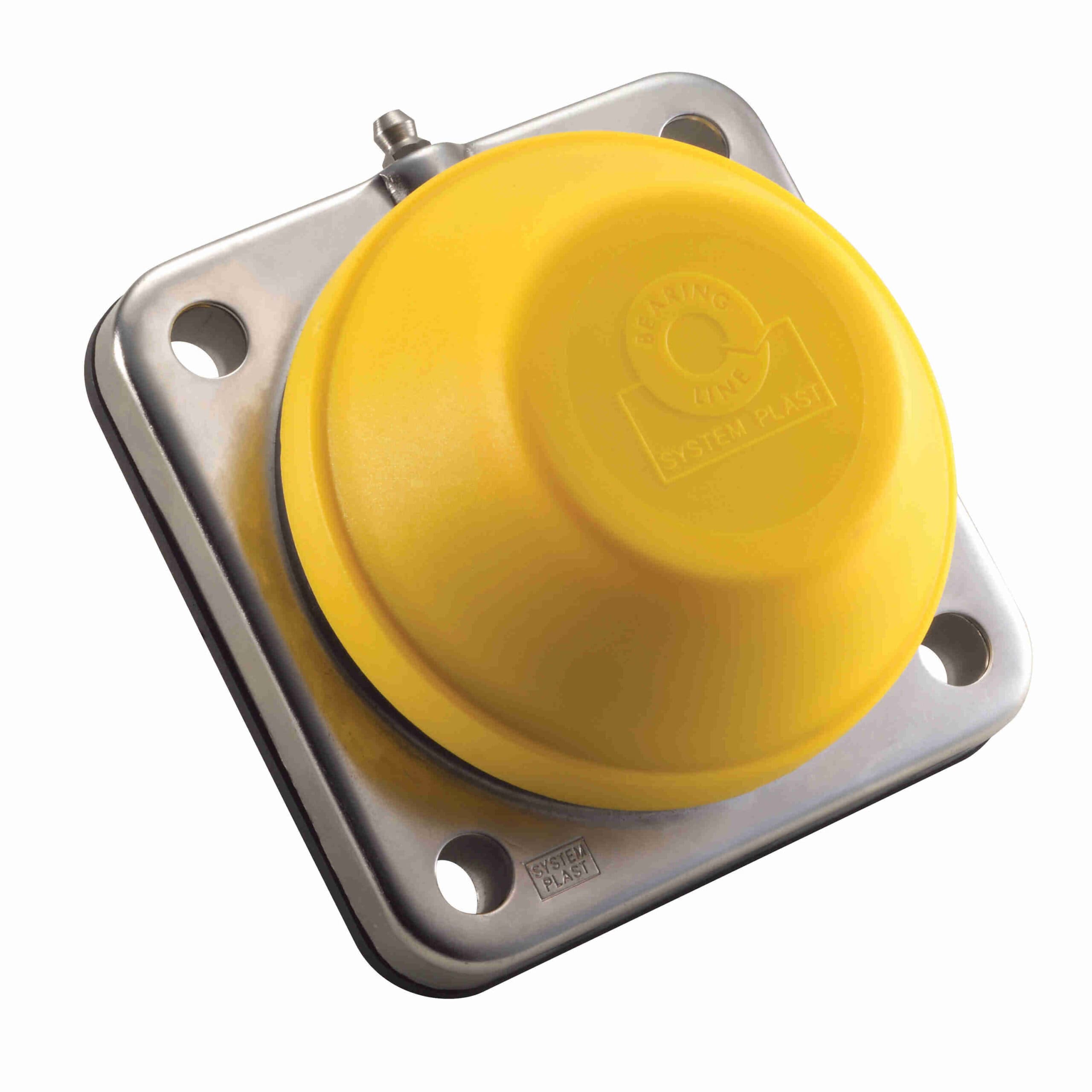

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCFQ206-19-SS-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 70206VR/SS-EC |
| Product Name | UCFQ206-19-SS-CEC |
| Brand | System Plast |
| Weight | 1.1 lb |
| Package Length | 4.52 in |
| Package Width | 4.52 in |
| Package Height | 2.28 in |
| Duty Series | Standard Duty |
| Housing Base | Solid |
| Bore Shape | Straight |
| Expansion | No |
| Speed (Max) | 2900 |
| Housing Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Flange, Four Bolt |
| Retainer Type | Ball Riding Retainer |
| Rolling Element | Ball Bearing |
| Housing Material | Polyamide |
| Insert No. | SS-SB206-19 RG |
| Insert Material | 400 Series Stainless Steel |
| Measure Units | Inch |
| Internal Clearance | Standard |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-116071 |
| Part NumberiManufacturer catalog number | 70206VR/SS-EC |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
