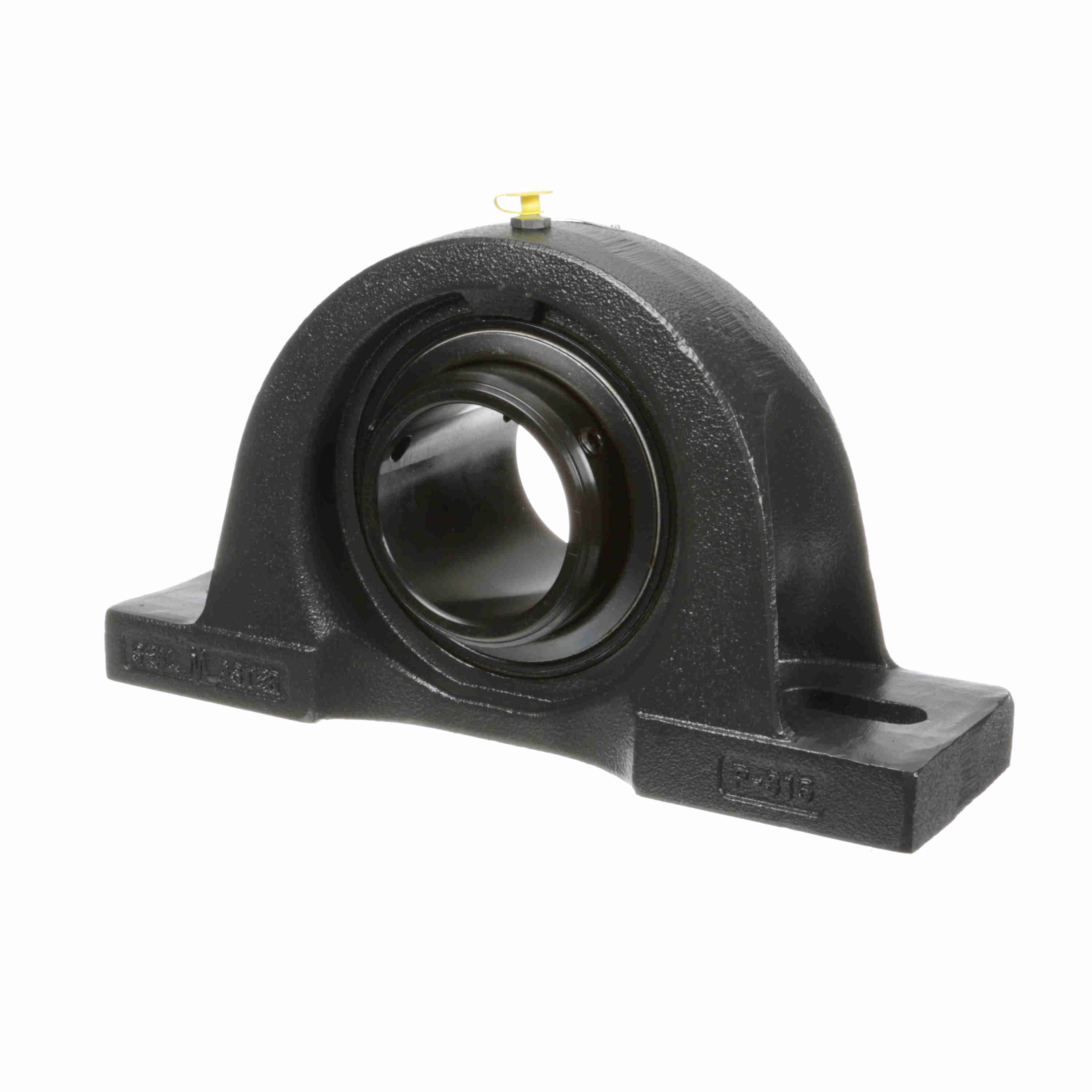

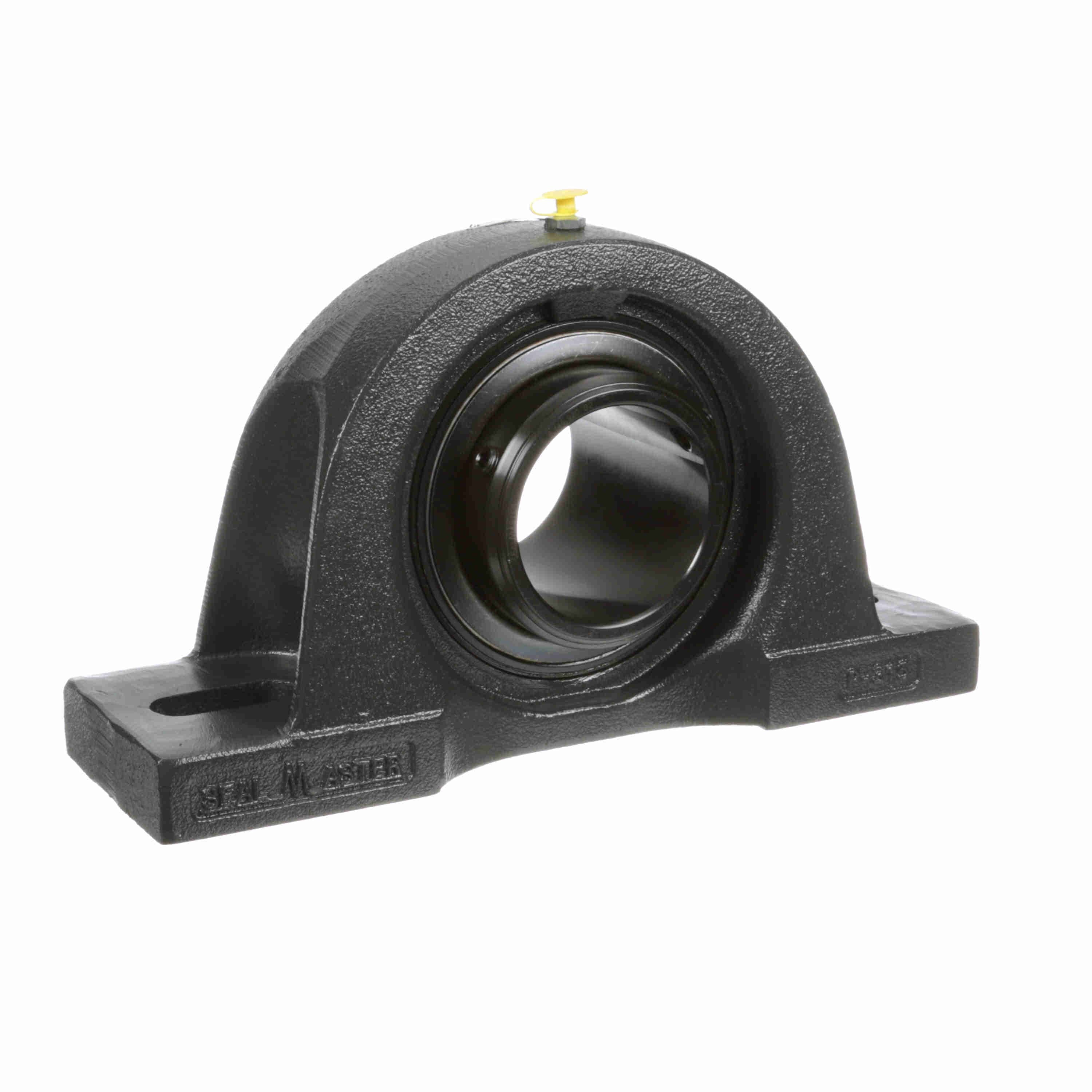

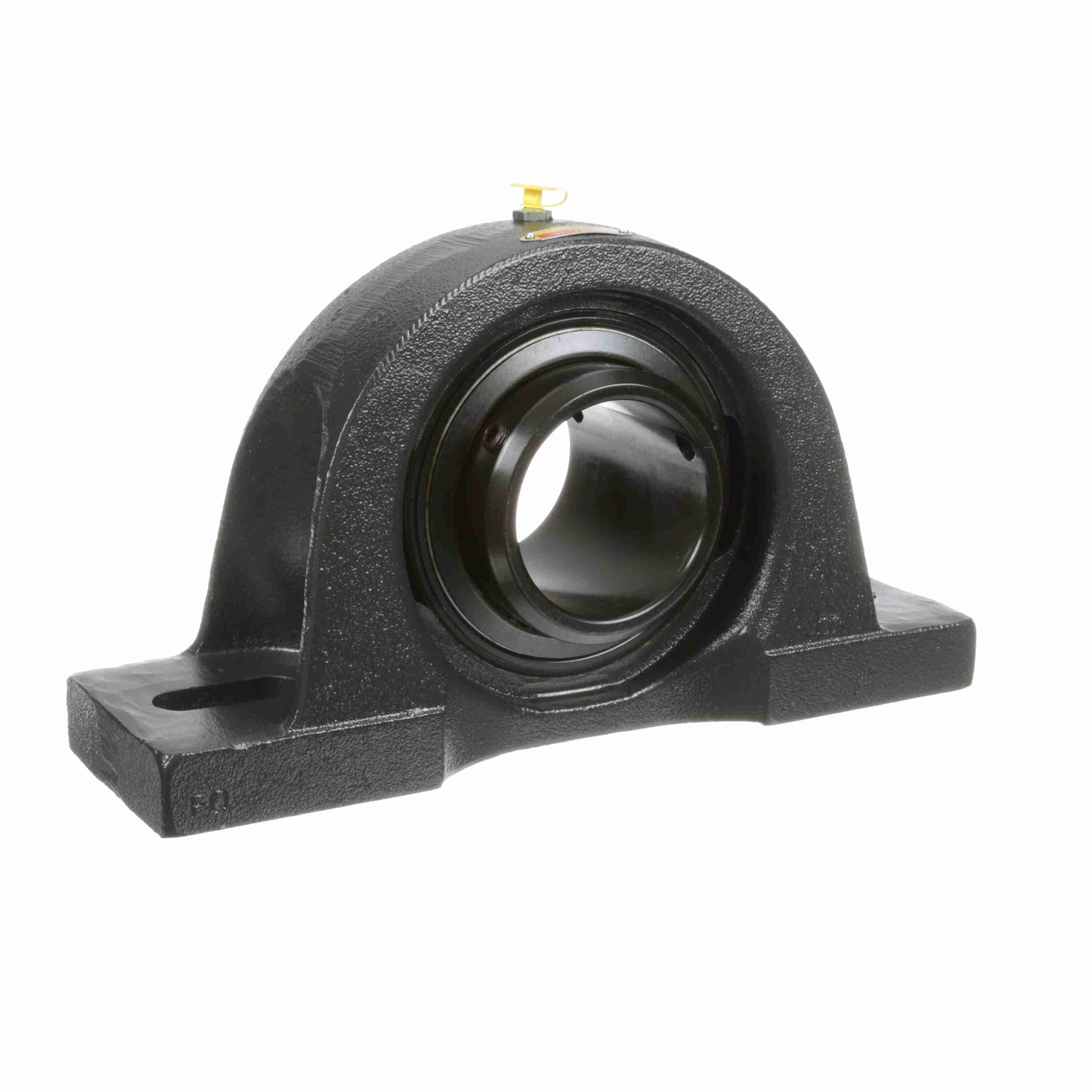

GEN GOLD SET SCREW
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 702317 |
| Product Name | MPD-55 |
| Brand | Sealmaster |
| Weight | 49.89 lb |
| Package Length | 17.25 in |
| Package Width | 9.88 in |
| Package Height | 4.88 in |
| Base Width (in) | 4.38 in |
| Overall Width (in) | 4.44 in |
| Overall Height (in) | 8.25 in |
| Overall Length (in) | 15 in |
| Bolt Size (in) | 7/8 in |
| Bore Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $2285.97 | — |
| 3.4375 in |
| Base to Center Height (in) | 4.0000 in |
| Foot Height (in) | 1.31 in |
| Length Through Bore (in) | 4.438 in |
| Bolt Spacing Max (in) | 12.63 in |
| Centerline to Outermost Bearing Face (in) | 2.219 in |
| Bolt Spacing Min (in) | 9.63 in |
| Rolling Element | Ball Bearing |
| Housing Base | Solid |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Housing Color | Black |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Static Only |
| Cage Material | Brass |
| Housing Type | Pillow Block, Two Bolt |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Pillow Block |
| Setscrew Torque (in-lbs) | 500-650 in/lbs |
| Ability to Relubricate | Yes |
| Inner Race Heat Treat Method | Zone-Hardened |
| Size Code | 2-38 |
| Inner Ring Outside Diameter (in) | 4.391 in |
| Vibration Frequency Roller Spin | 0.0454 cps |
| Shaft Locking Type | Double Set Screw |
| Cage Type | Land Riding Retainer |
| Bearing Insert Finish | Black Oxide |
| Housing Material | Cast Iron |
| Fixed vs. Expansion | Fixed |
| Vibration Frequency Fundamental Train | 0.0069 cps |
| Static Load Rating (lb) | 16,301 lb |
| Bearing Type | Medium Duty |
| Base Length (in) | 15.00 in |
| Housing Coating | Powder Coated |
| Bearing Insert Material | 52100 Bearing Steel |
| Insert | 3-37D |
| Vibration Frequency Outer Ring Defect | 0.0685 cps |
| Dynamic Load Rating (lb) | 21,566 lb |
| Lubricant | Lithium Complex NLGI 2 Grease |
| End Cap Available | No |
| Grease Fitting Thread Size | 1/4 NPT |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (F) | 220 °F |
| Vibration Frequency Inner Ring Defect | 0.0981 cps |
| Maximum Speed (RPM) | 2800 rpm |
| Radial Clearance | Standard |
| HTC | 8483.20.8040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-116162 |
| Part NumberiManufacturer catalog number | 702317 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461016855 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
