GEN GOLD SET SCREW
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 703505 |

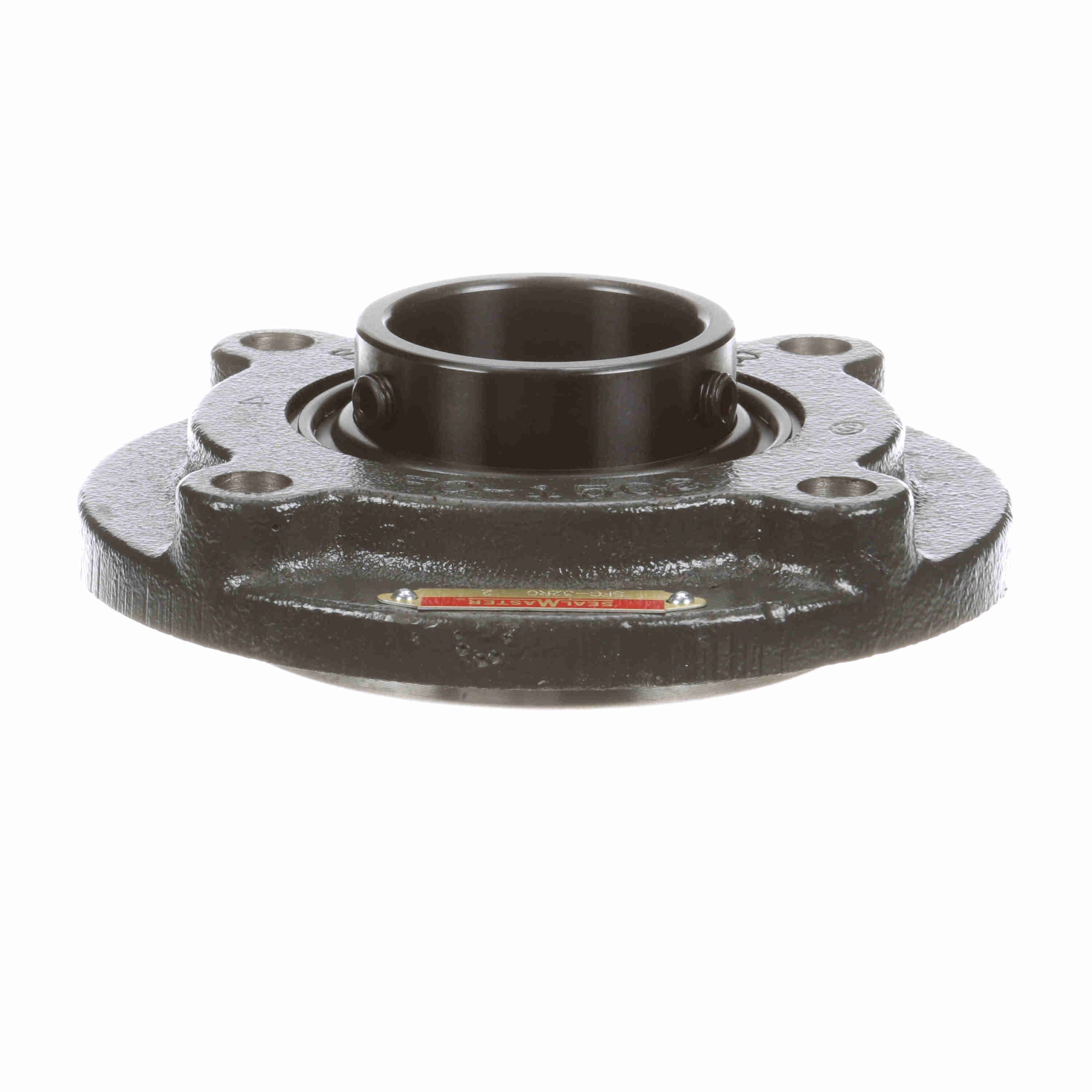

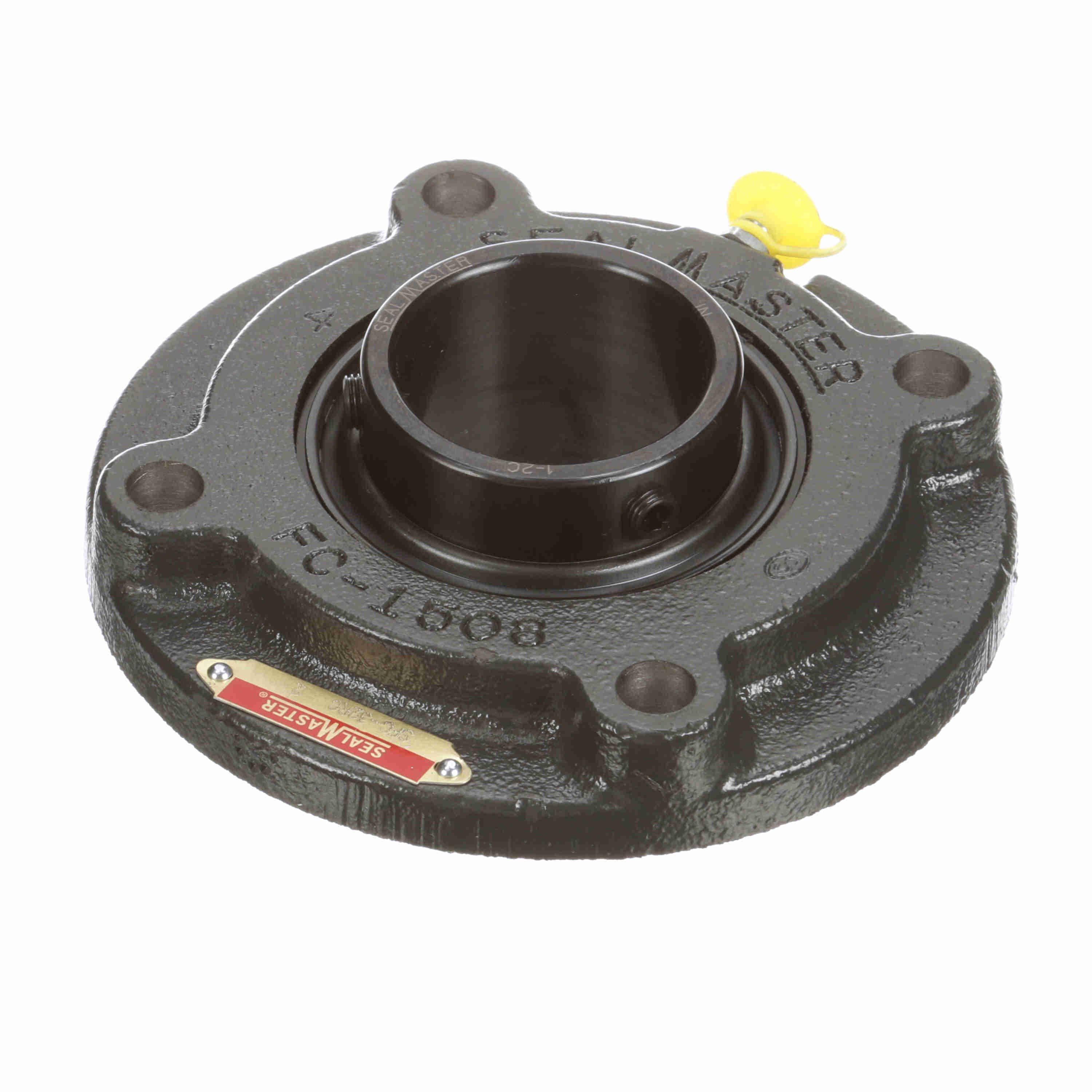

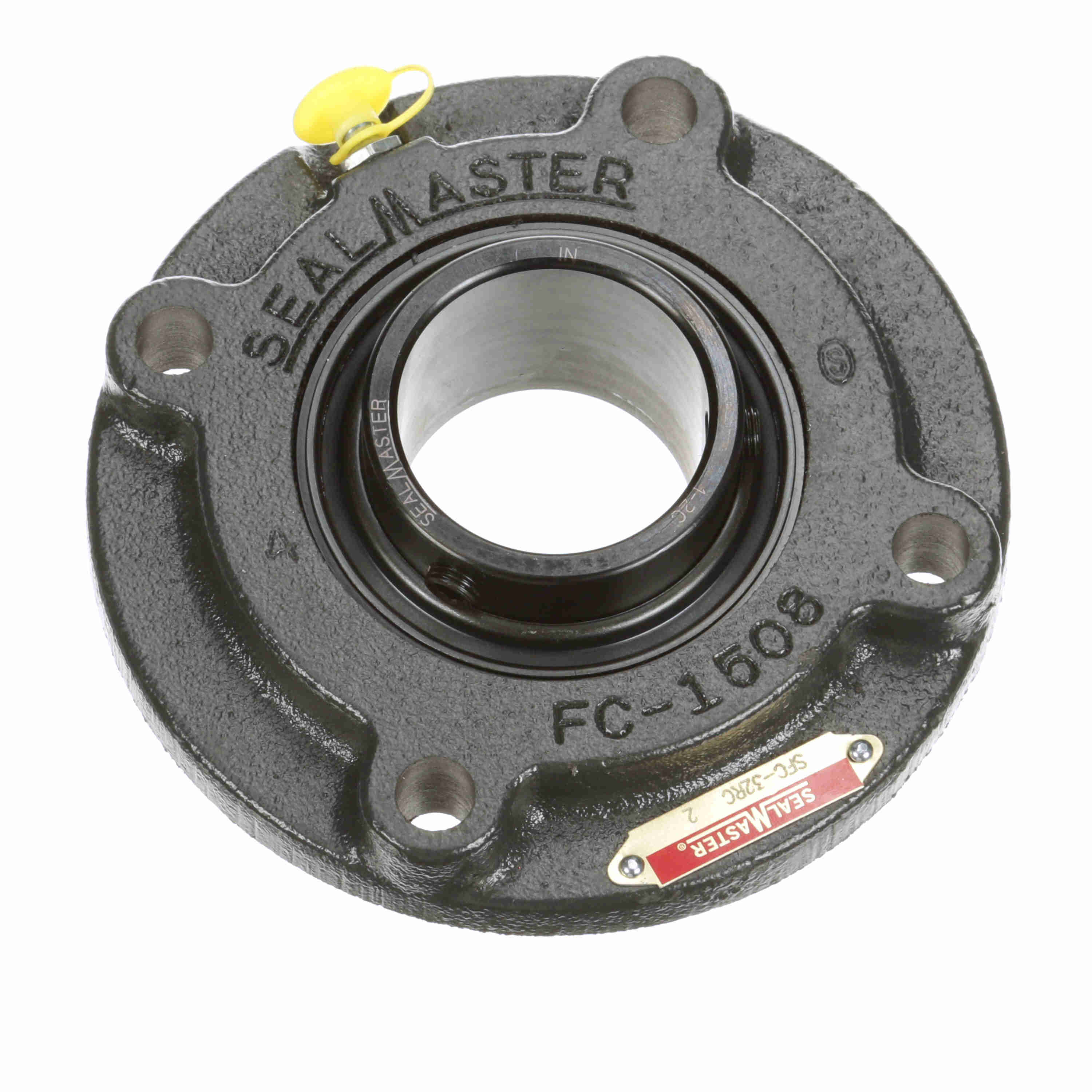

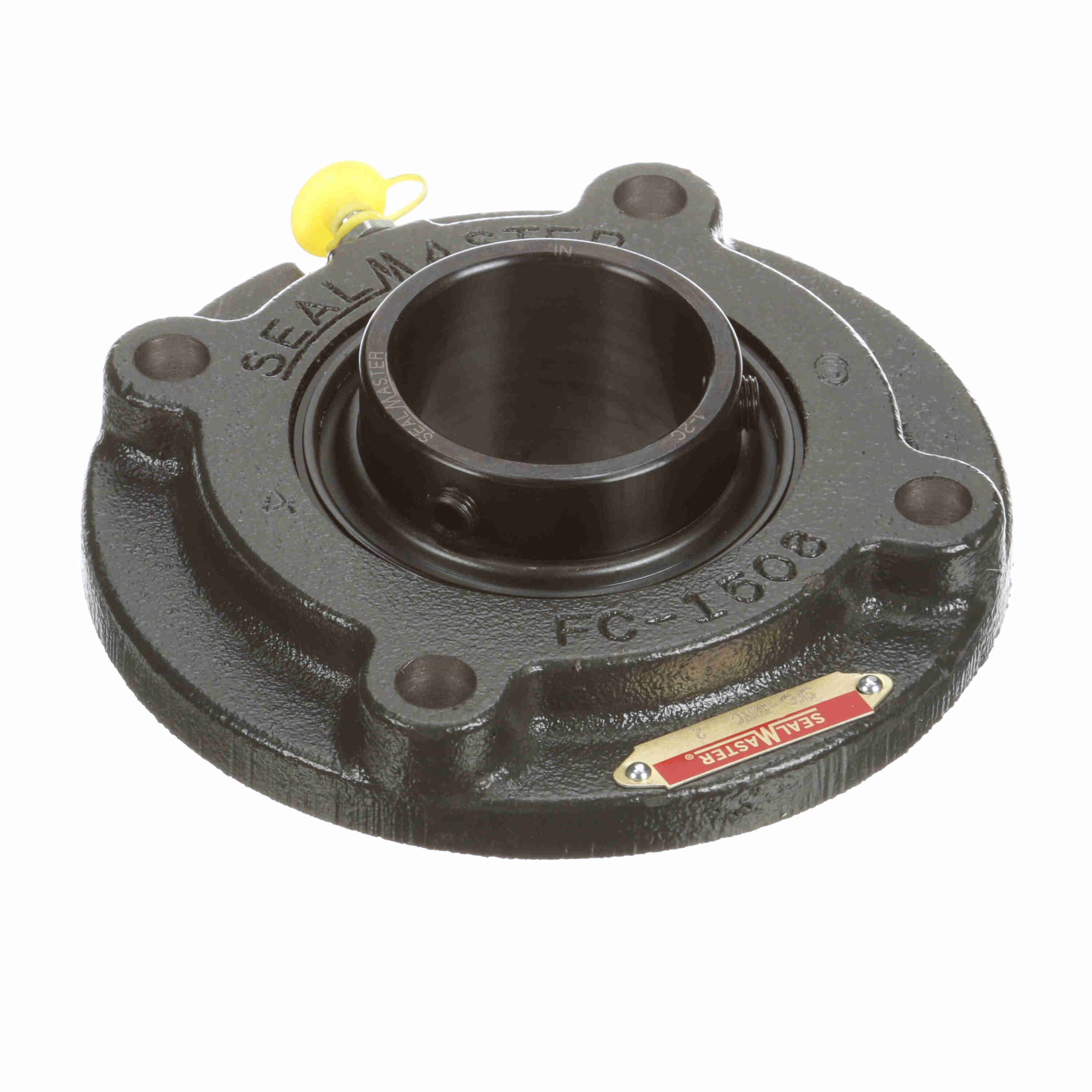

| Product Name | SFC-32RC |
| Brand | Sealmaster |
| Weight | 6.365 lb |
| Package Length | 6.75 in |
| Package Width | 6.5 in |
| Package Height | 2.44 in |
| Overall Width (in) | 6.13 in |
| Bolt Size (in) | 7/16 in |
| Overall Height (in) | 2.03 in |
| Overall Length (in) | 6.13 in |
| Bore Diameter (in) | 2 in |
| Foot Height (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $531.20 | — |
| 0.44 in |
| Pilot Diameter (in) | 4.25 in |
| Length Through Bore (in) | 2.029 in |
| Housing Outside Diameter (in) | 6.13 in |
| Bolt Circle (in) | 5.125 in |
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Outer Ring Land Profile | Standard |
| Cage Material | PPS - Polyphenylene Sulfide |
| Housing Type | Piloted Flange Cartridge |
| Seal Type | Single Lip Contact Seal |
| Housing Style | Flange Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Pilot Depth (in) | 0.44 in |
| Ability to Relubricate | Yes |
| Max Operating Temperature (F) | 220 °F |
| Shaft Locking Type | Set Screw |
| Inner Ring Outside Diameter (in) | 2.469 in |
| Static Load Rating (lb) | 5,216 lb |
| Bearing Insert Material | 52100 Bearing Steel |
| Grease Fitting Thread Size | 1/8 NPT |
| Housing Coating | Powder Coated |
| Vibration Frequency Roller Spin | 0.0445 cps |
| End Cap Available | No |
| Insert | 1-2C SFB |
| Maximum Speed (RPM) | 3550 rpm |
| Size Code | 2-115 |
| Vibration Frequency Inner Ring Defect | 0.0984 cps |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Type | Standard Duty |
| Cage Type | Land Riding Retainer |
| Fixed vs. Expansion | Fixed |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Vibration Frequency Outer Ring Defect | 0.0683 cps |
| Dynamic Load Rating (lb) | 7,889 lb |
| Radial Clearance | Standard |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Bearing Insert Finish | Black Oxide |
| Housing Material | Cast Iron |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
