GOLD BRGS UNIT MATL
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 703938 |

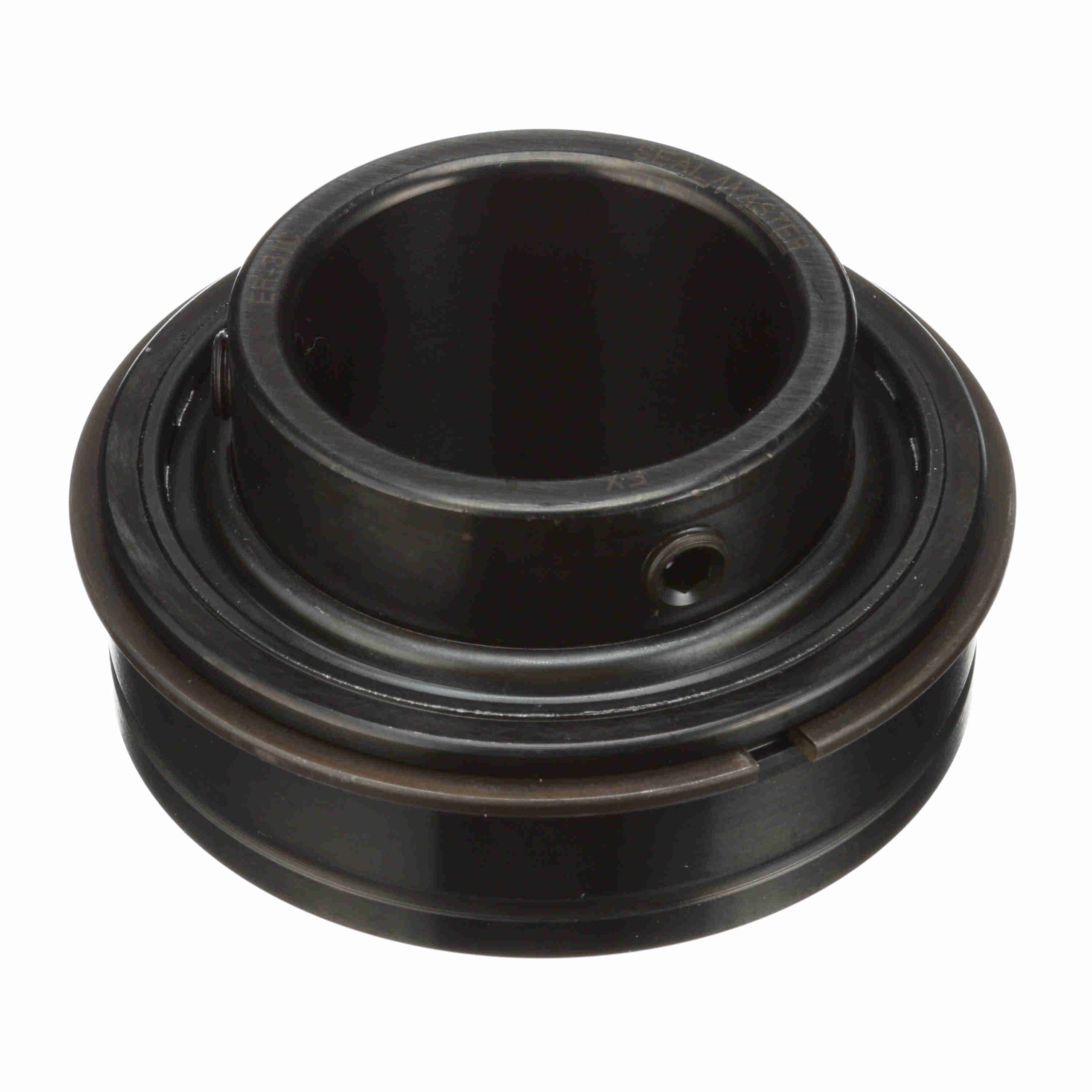

| Product Name | ER-36C |
| Brand | Sealmaster |
| Weight | 4.3 lb |
| Package Length | 4.75 in |
| Package Width | 2.63 in |
| Package Height | 4.81 in |
| Overall Width (in) | 2.56 in |
| Bore Size (in) | 2.25 in |
| Outer Race OD (mm) | 110 mm |
| Centerline to Front Face (in) | 1.563 in |
| Outer Race OD (in) | 4.3307 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $678.76 | — |
| Inner Ring OD (in) |
| 2.984 in |
| Outer Race Width (in) | 1.25 in |
| Length Through Bore (in) | 2.563 in |
| Outer Race Width (mm) | 31.8 mm |
| Bore Shape | Straight |
| Set Screw Thread | 3/8-24 UNF |
| Insert Material | 52100 Bearing Steel |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Housing Type | Insert (ER Style) |
| Measure Units | Inch |
| Misalignment | None |
| Expansion | No |
| Internal Clearance | Standard |
| Platform | Gold Line Ball Bearing |
| End Cap | No |
| Outer Ring Land Profile | Tapered Lands |
| Misalignment Type | Static Only |
| Bearing Insert Coating | Black Oxide |
| Precision Rating | ABEC 1 |
| Cage Material | PPS - Polyphenylene Sulfide |
| Inner Race Profile | Wide Inner Ring |
| Outer Race Profile | Cylindrical |
| Setscrew Torque (in-lbs) | 230-300 in/lbs |
| Vibration Frequency Roller Spin | 0.0432 cps |
| Duty/Status | Standard |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Series | Unmounted Replacement Bearings |
| Vibration Frequency Outer Ring Defect | 0.0678 cps |
| Locking Type | Set Screw |
| Inner Race Heat Treat Method | Zone-Hardened |
| Vibration Frequency Inner Ring Defect | 0.0989 cps |
| Inner Ring Fillet Radius (in) | 0.08 in |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Ability to Relubricate | Yes |
| Maximum Operating Temperature (F) | 220 °F |
| Size Code | 2-27 |
| Maximum Speed (rpm) | 2550 rpm |
| Cage Type | Land Riding Retainer |
| Static Load Rating (lb) | 8,150 lb |
| Dynamic Load Rating (lb) | 11,789 lb |
| HTC | 8482.10.5056 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-116483 |
| Part NumberiManufacturer catalog number | 703938 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461025000 |
| CategoryiCatalog classification | Bearings |
