Ball Bearings

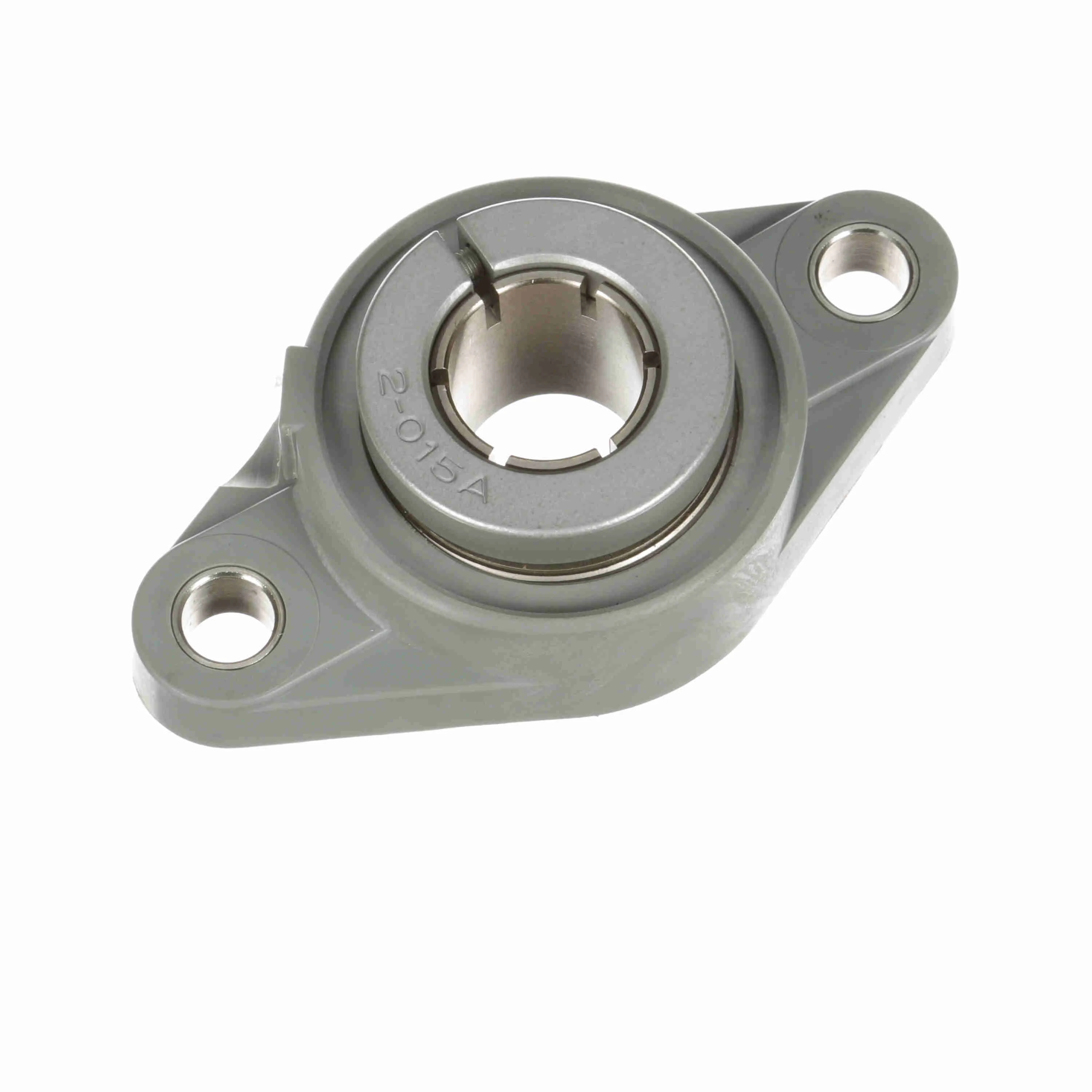

CRFTC-PN12T RMW

Name: CRFTC-PN12T RMW
Brand: Sealmaster
SKU: 704998
Price: 983.65 USD
Availability: OutOfStock

PN GOLD

Part Number704998

GDS #GDS-116746

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Always verify dimensions, load ratings, material, and seal type before ordering.

GDS #iGDS internal part number	GDS-116746
Part Numberi

Quantity	Price Each	Save
1+	$983.65	—

Datasheets, CAD drawings, and installation instructions are available on request.
