GOLD BRGS UNIT MATL
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 705613 |

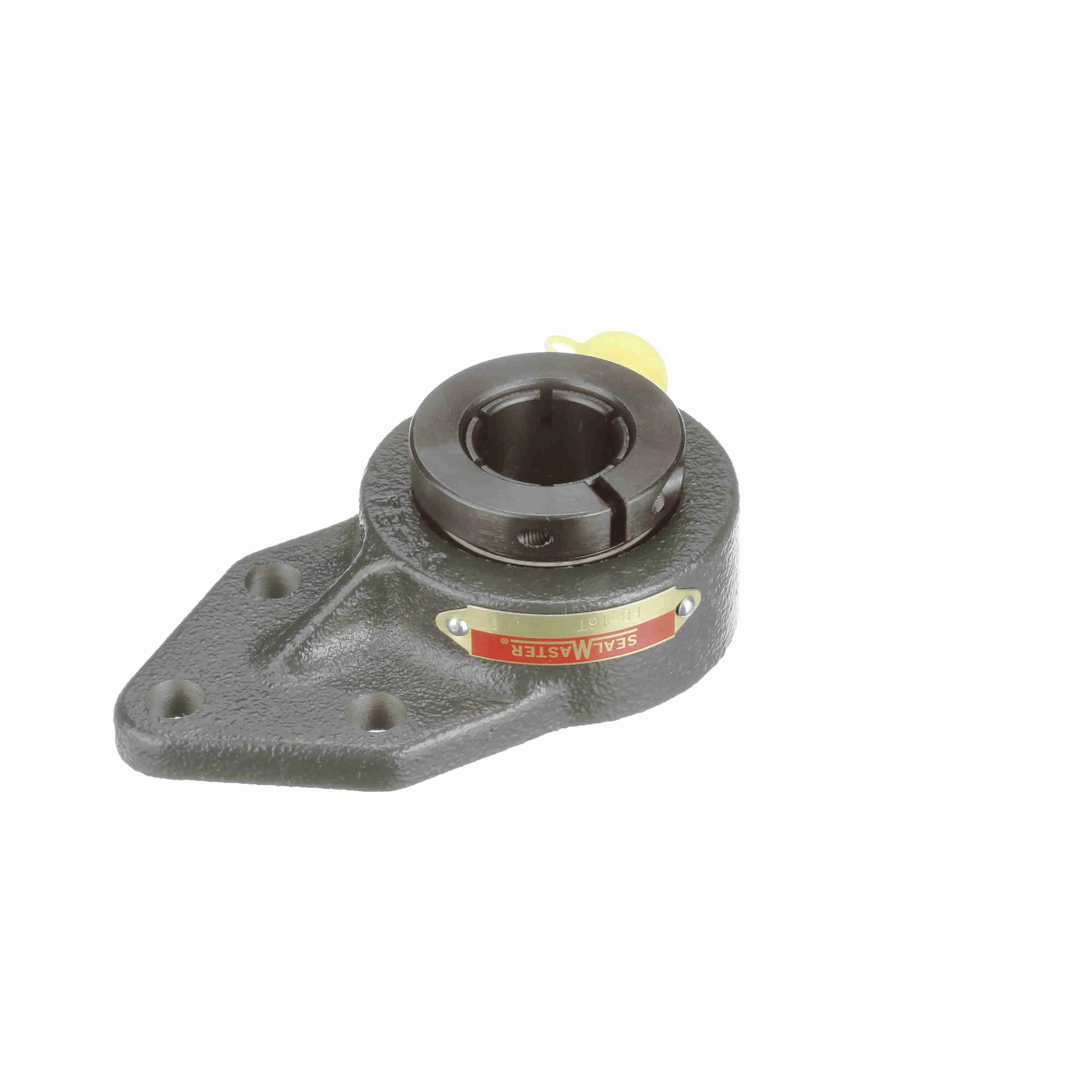

| Product Name | FB-15T |
| Brand | Sealmaster |
| Weight | 2 lb |
| Package Length | 3.19 in |
| Package Width | 1.69 in |
| Package Height | 5.25 in |
| Overall Width (in) | 2.75 in |
| Bolt Size (in) | 3/8 in |
| Overall Height (in) | 1.61 in |
| Overall Length (in) | 4.75 in |
| Bore Diameter (in) | 0.9375 in |
| Base to Center Height (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1021.73 | — |
| 3.38 in |
| Foot Height (in) | 0.38 in |
| Length Through Bore (in) | 1.48 in |
| Bolt Spacing (in) | 1.6250 in |
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| Misalignment Type | Static Only |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Style | Flange Block |
| Ability to Relubricate | Yes |
| Locking Collar Outside Diameter (in) | 1.98 in |
| Inner Race Heat Treat Method | Zone-Hardened |
| Vibration Frequency Outer Ring Defect | 0.0682 cps |
| Vibration Frequency Roller Spin | 0.0442 cps |
| Housing Material | Cast Iron |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Shaft Locking Type | Concentric |
| Bolt Spacing Height Direction (in) | 1.125 in |
| Static Load Rating (lb) | 1,651 lb |
| Radial Clearance | Standard |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Dynamic Load Rating (lb) | 2,801 lb |
| Bearing Insert Material | 52100 Bearing Steel |
| Bearing Centerline to Bolt Hole Center (in) | 1.8125 in |
| Max Operating Temperature (F) | 220 °F |
| Cage Type | Land Riding Retainer |
| Bearing Insert Finish | Black Oxide |
| End Cap Available | No |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Vibration Frequency Inner Ring Defect | 0.0985 cps |
| Size Code | 2-015 |
| Insert | 2-015T |
| Maximum Speed (RPM) | 9000 rpm |
| Bearing Type | Standard Duty |
| Grease Fitting Thread Size | 1/4-28 |
| Fixed vs. Expansion | Fixed |
| Inner Ring Outside Diameter (in) | 1.375 in |
| Housing Coating | Powder Coated |
| Housing Width (in) | 2.75 in |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-117022 |
| Part NumberiManufacturer catalog number | 705613 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461031582 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
