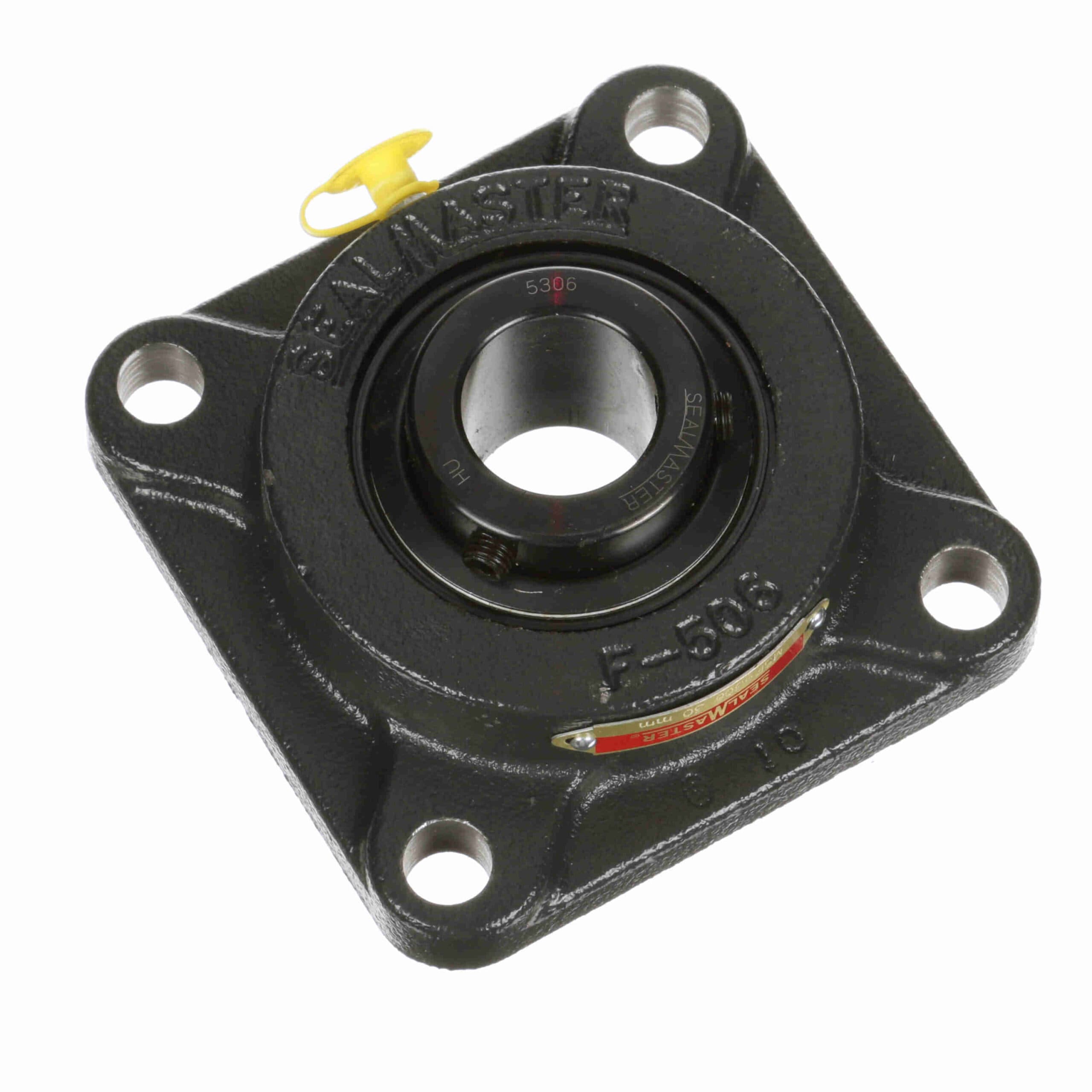

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - MSF-306
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 710173 |
| Product Name | MSF-306 |
| Brand | Sealmaster |
| Weight | 4.1 lb |
| Package Length | 2 in |
| Package Width | 5 in |
| Package Height | 5 in |
| Bore Shape | Straight |
| Seal Type | Felt Labyrinth Seal |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Measure Units | Metric |
| Rolling Element | Ball Bearing |
| Housing Base |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Solid |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Misalignment | ±2.0° Misalignment - Static Only |
| Internal Clearance | Standard |
| Outer Ring Land Profile | Standard |
| Housing Color | Gray |
| Replaceable Insert | Yes |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-117583 |
| Part NumberiManufacturer catalog number | 710173 |
| BrandiManufacturer or product brand | Sealmaster |
| CategoryiCatalog classification | Bearings > Flange Units |
