PN GOLD
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 711172 |

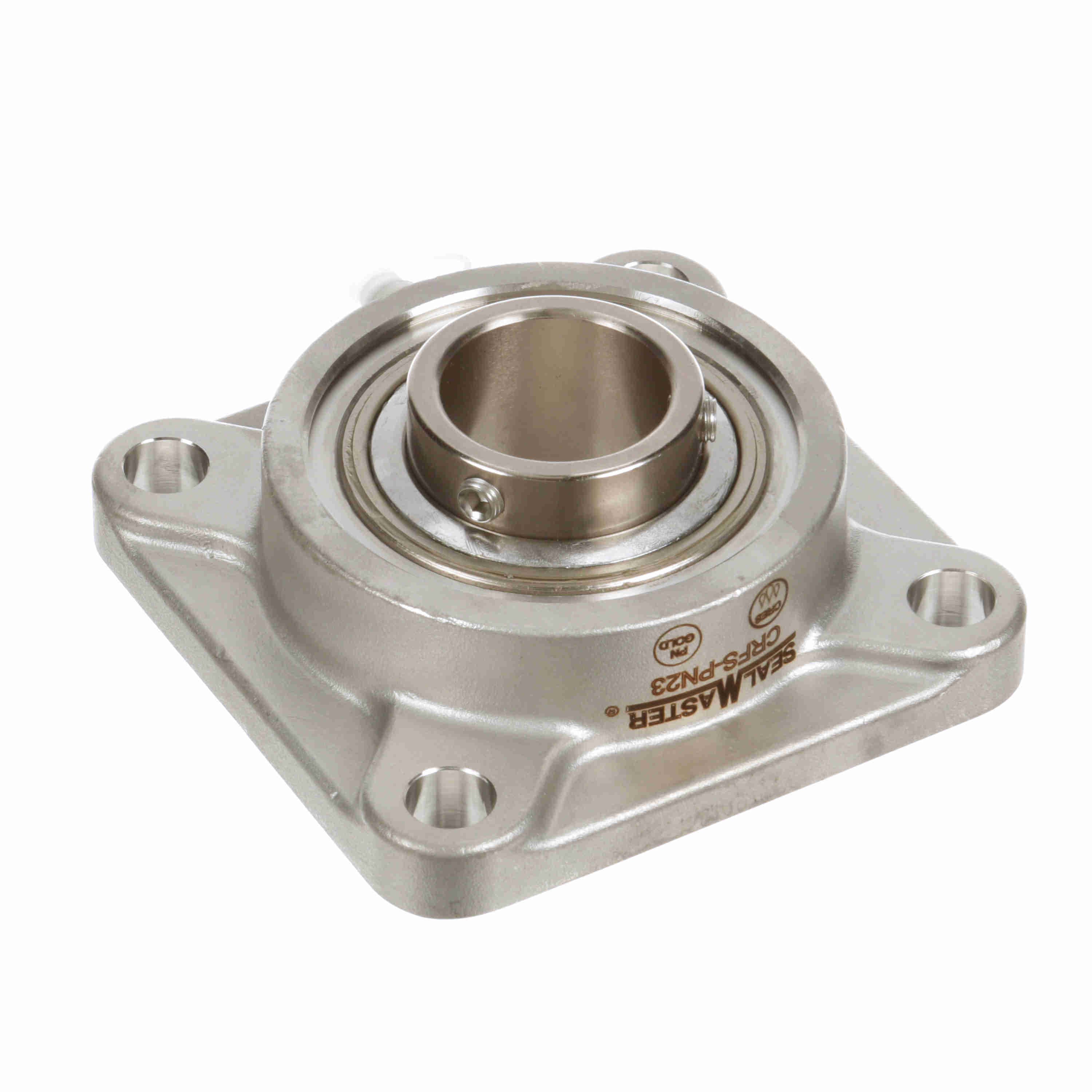

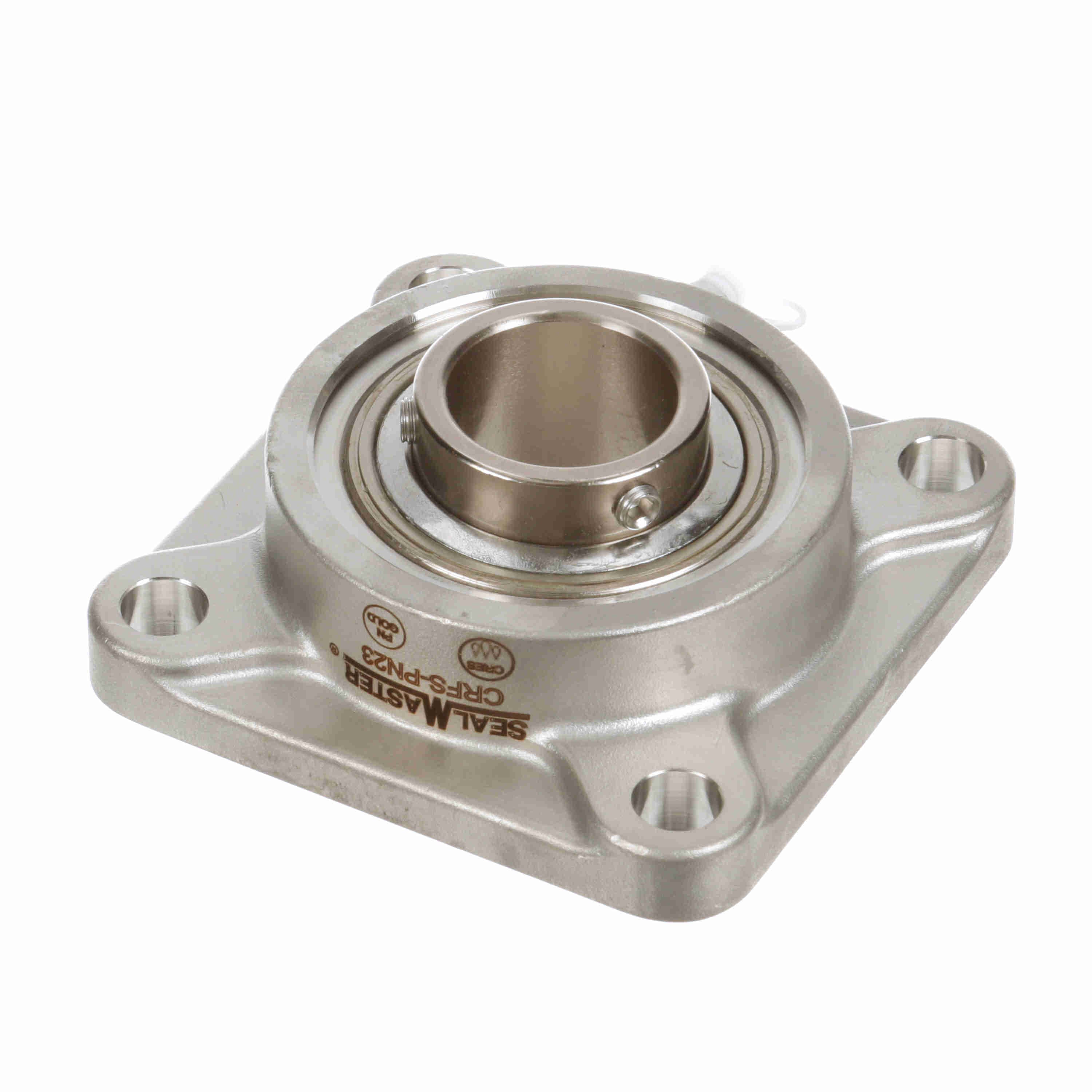

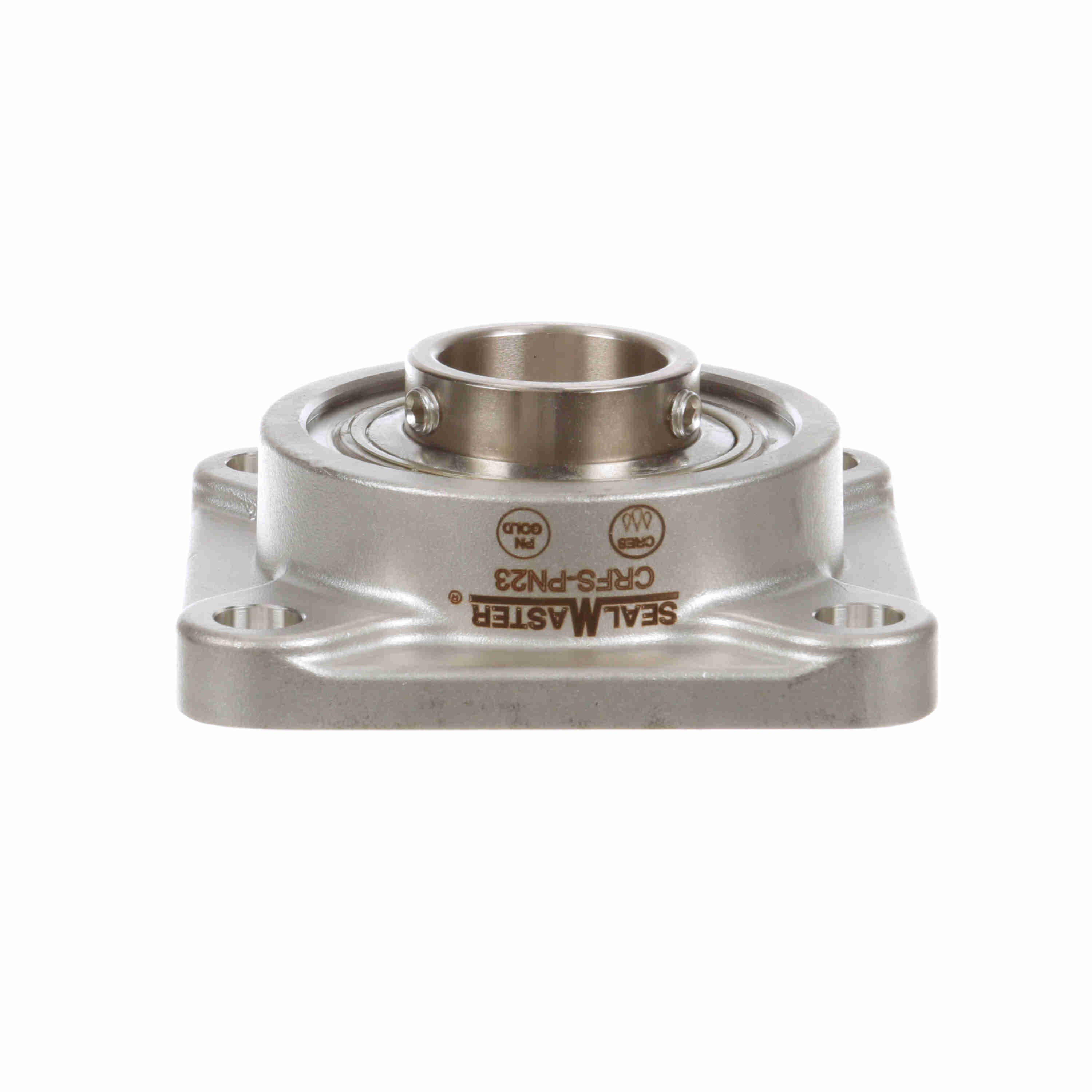

| Product Name | CRFS-PN23 |
| Brand | Sealmaster |
| Weight | 4 lb |
| Package Length | 5 in |
| Package Width | 2 in |
| Package Height | 5 in |
| Bolt Size (in) | 1/2 in |
| Overall Width (in) | 4.63 in |
| Overall Height (in) | 1.75 in |
| Overall Length (in) | 4.63 in |
| Bore Diameter (in) | 1.4375 in |
| Foot Height (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $550.73 | — |
| 0.56 in |
| Length Through Bore (in) | 1.69 in |
| Bolt Spacing (in) | 3.6250 in |
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Housing Color | Silver |
| Backside Shield/Seal | Optional backside shield available order separate |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Options | Corrosion Resistant |
| Certifications | IP69K |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Multi-Lip Contact Seal |
| Housing Type | Flange, Four Bolt |
| Housing Style | Flange Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Housing Backside Inner Diameter | 3.31 |
| End Cap Available | Yes |
| Maximum Speed (RPM) | 2000 rpm |
| Cage Type | Land Riding Retainer |
| Vibration Frequency Outer Ring Defect | 0.0595 cps |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Radial Clearance | Standard |
| Dynamic Load Rating (lb) | 5,782 lb |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (F) | 220 °F |
| Grease Fitting Thread Size | 1/4-28 |
| Lubricant | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Size Code | 2-17 |
| Bearing Insert Material | 52100 Bearing Steel |
| Housing Material | Stainless Steel |
| Fixed vs. Expansion | Fixed |
| Vibration Frequency Roller Spin | 0.0386 cps |
| Bearing Type | Standard Duty |
| Shaft Locking Type | Set Screw |
| Vibration Frequency Inner Ring Defect | 0.0905 cps |
| Static Load Rating (lb) | 3,493 lb |
| Inner Ring Outside Diameter (in) | 1.86 in |
| Insert | PN-23 |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-117773 |
| Part NumberiManufacturer catalog number | 711172 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461337455 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
