Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

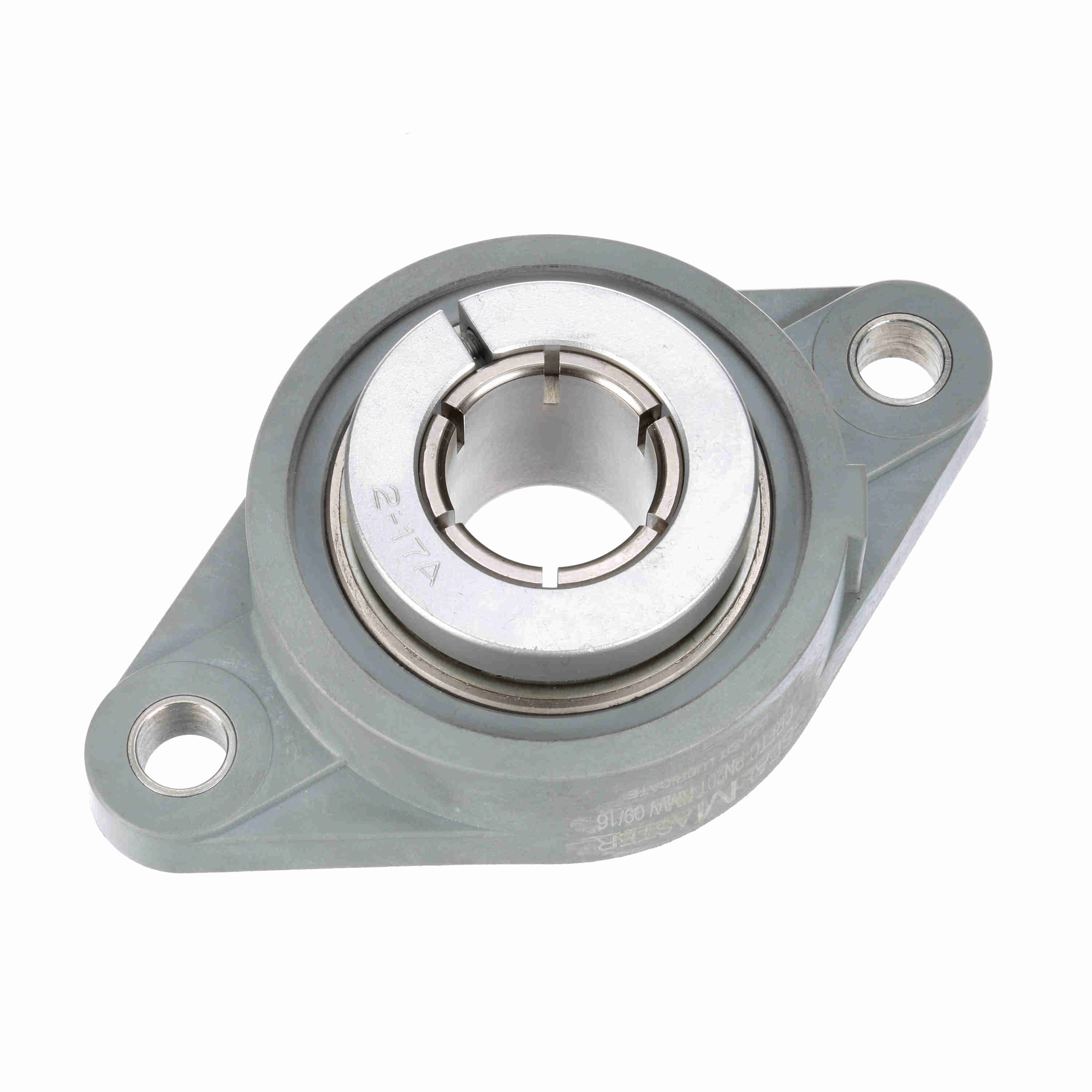

| Part Number | 712024 |
| Product Name | CRFTC-PN23T RMW |
| Brand | Sealmaster |
| Weight | 1.9683 lb |
| Package Length | 4.38 in |
| Package Width | 2.06 in |
| Package Height | 6.81 in |
| Bolt Size (in) | 1/2 in |
| Overall Width (in) | 3.70 in |
| Overall Length (in) | 6.36 in |
| Overall Height (in) | 1.81 in |
| Bore Diameter (in) | 1.4375 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $752.38 | — |
| Foot Height (in) |
| 0.56 in |
| Overall Height to End Cap (in) | 2.94 in |
| Length Through Bore (in) | 1.81 in |
| Bolt Spacing (in) | 5.1250 in |
| Rolling Element | Ball Bearing |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Bore Shape | Straight |
| Backside Shield/Seal | Optional backside shield available order separate |
| Options | Corrosion Resistant - Reduced Maintenance - Lubed for Life |
| Misalignment Type | Static Only |
| Housing Color | Light Gray |
| Outer Ring Land Profile | Tapered Lands |
| Certifications | IP69K |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Multi-Lip Contact Seal |
| Housing Type | Flange, Two Bolt |
| Housing Style | Flange Block |
| Locking Collar Outside Diameter (in) | 2.56 in |
| Ability to Relubricate | No |
| Inner Race Heat Treat Method | Zone-Hardened |
| Lubricant | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Cage Type | Land Riding Retainer |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Static Load Rating (lb) | 3,493 lb |
| Bearing Type | Standard Duty |
| End Cap Available | Yes |
| Bearing Insert Material | 52100 Bearing Steel |
| Max Operating Temperature (F) | 220 °F |
| Dynamic Load Rating (lb) | 5,782 lb |
| Grease Fitting Thread Size | 1/4-28 |
| Vibration Frequency Roller Spin | 0.0386 cps |
| Vibration Frequency Inner Ring Defect | 0.0905 cps |
| Maximum Speed (RPM) | 2000 rpm |
| Fixed vs. Expansion | Fixed |
| Vibration Frequency Outer Ring Defect | 0.0595 cps |
| Insert | PN-23T |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Housing Material | Composite |
| Shaft Locking Type | Concentric |
| Radial Clearance | Standard |
| Inner Ring Outside Diameter (in) | 1.859 in |
| Size Code | 2-17 |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-118017 |
| Part NumberiManufacturer catalog number | 712024 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662461343838 |
| CategoryiCatalog classification | Bearings > Ball Bearings |
