Ball Bearings

BSFT-20RTH RMD

Name: BSFT-20RTH RMD
Brand: Sealmaster
SKU: 713940
Price: 632.07 USD
Availability: OutOfStock

BEV DRY

Part Number713940

GDS #GDS-118359

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

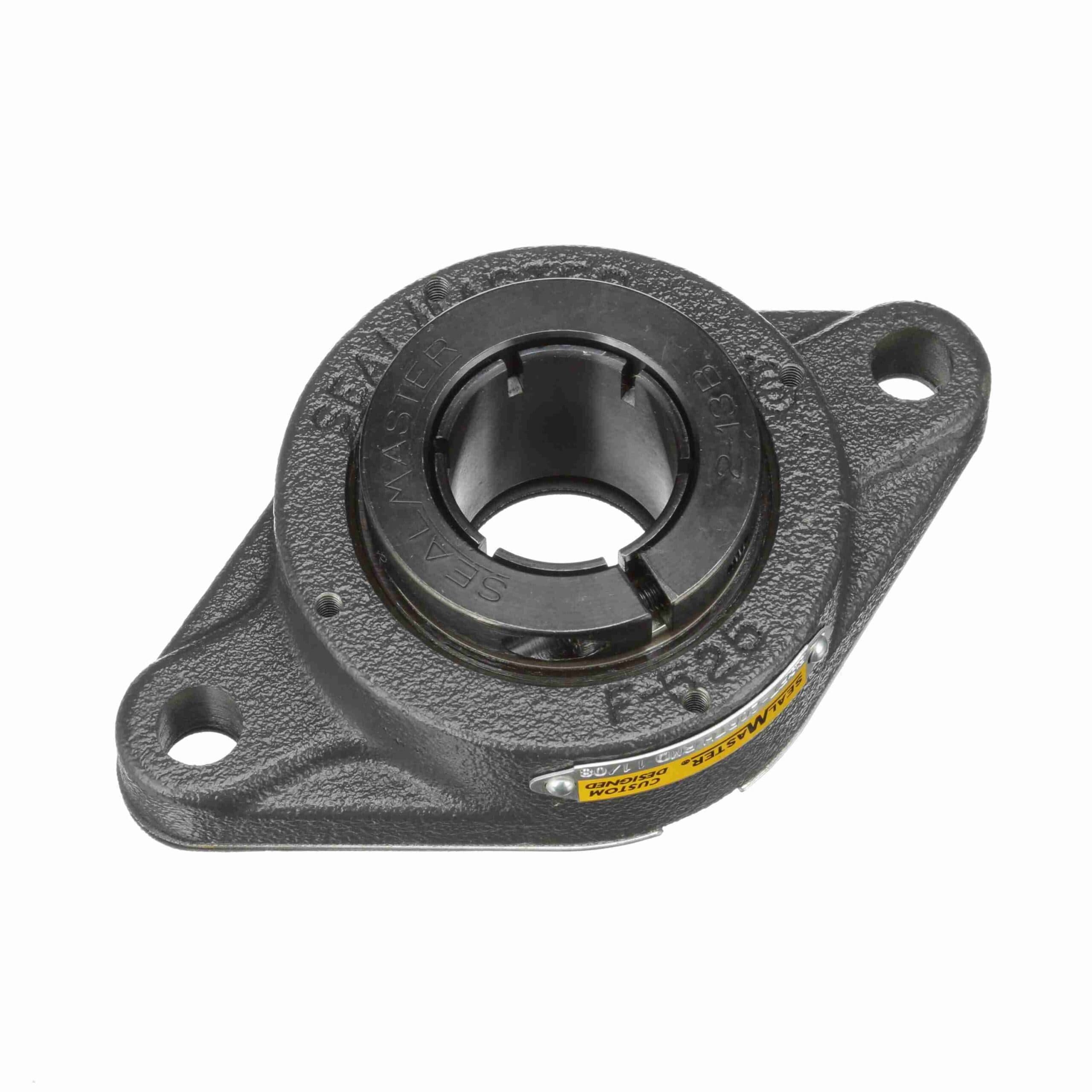

Sealmaster® Bev Dry™ cast iron housing with bolt on end cap and back side shield for optimal protection
Skwezloc® concentric locking for near perfect concentricity
High performance triple contact seal design provide multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain relubrication
Tapered land outer ring ensures that lubricant will be easily directed back to the raceway
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Always verify dimensions, load ratings, material, and seal type before ordering.

GDS #iGDS internal part number	GDS-118359
Part Numberi

Quantity	Price Each	Save
1+	$632.07	—

Datasheets, CAD drawings, and installation instructions are available on request.
