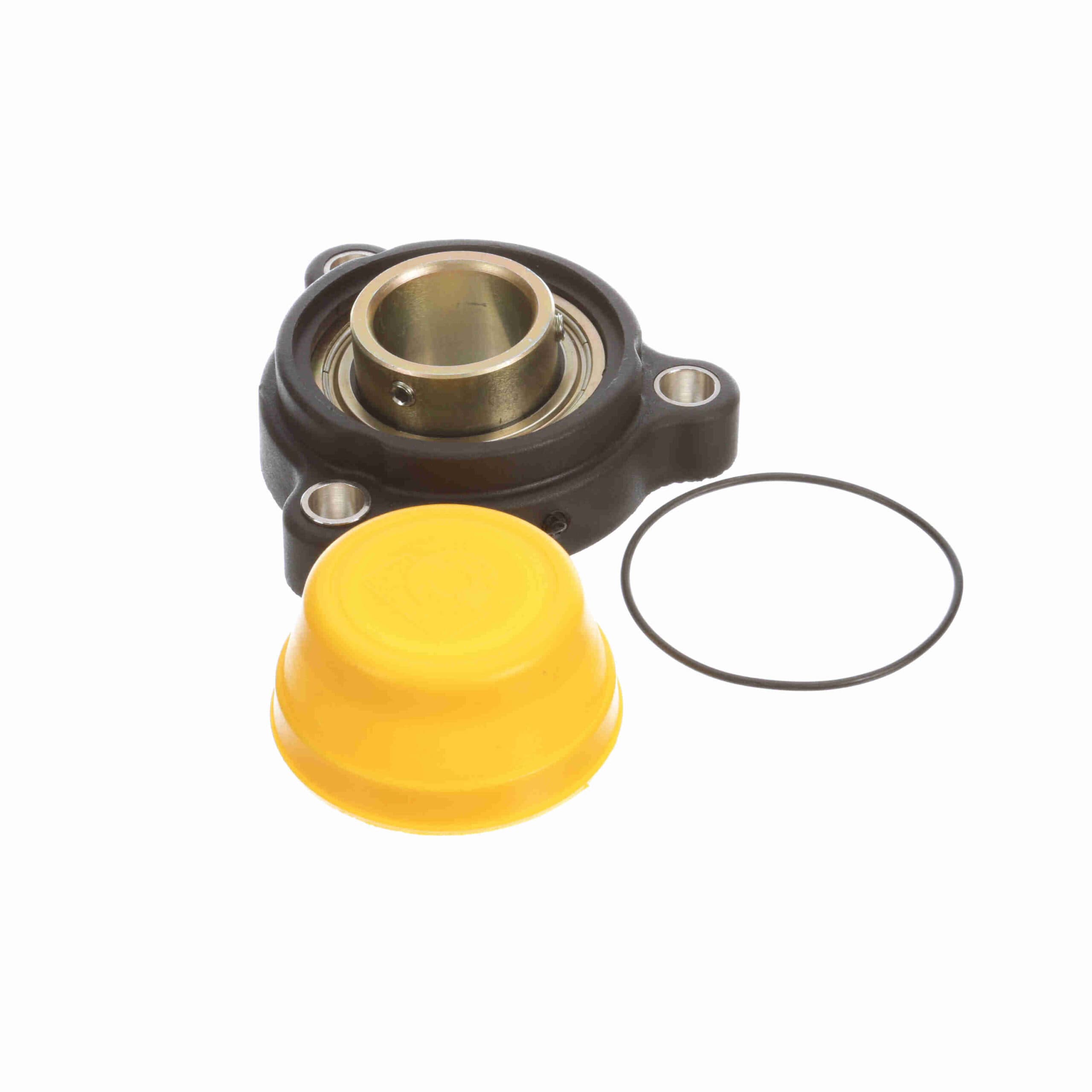

System Plast Mounted Polyamide Three Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCFG206-20-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 72206GRA |
| Product Name | UCFG206-20-CEC |
| Brand | System Plast |
| Weight | 0.77 lb |
| Package Length | 4.45 in |
| Package Width | 4.45 in |
| Package Height | 2.2 in |
| Insert Material | 52100 Bearing Steel |
| Housing Type | Flange, Three Bolt |
| Bore Shape | Straight |
| Insert No. | SB206-20 RG |
| Housing Material | Polyamide |
| Expansion |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| No |
| Rolling Element | Ball Bearing |
| Housing Base | Solid |
| Speed (Max) | 2900 |
| Retainer Type | Ball Riding Retainer |
| Measure Units | Inch |
| Duty Series | Standard Duty |
| Internal Clearance | Standard |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-118813 |
| Part NumberiManufacturer catalog number | 72206GRA |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
