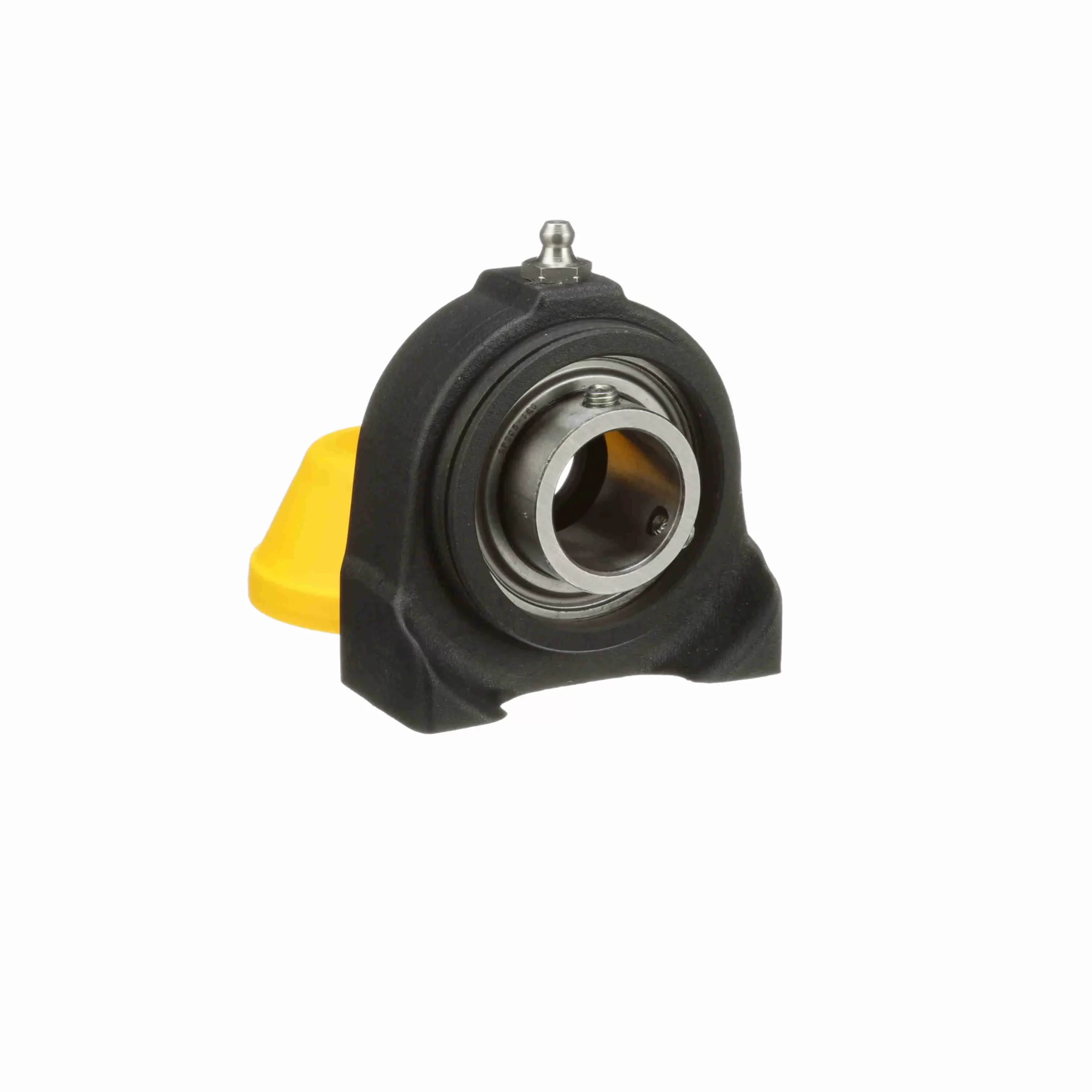

System Plast Mounted Polyamide Tapped Base Pillow Block Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Closed End Cap/Back Seal included - UCPA206-19-SS-CEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 73206BR/SS-U |
| Product Name | UCPA206-19-SS-CEC |
| Brand | System Plast |
| Weight | 1.15 lb |
| Package Length | 3.88 in |
| Package Width | 2.4 in |
| Package Height | 3.35 in |
| Retainer Type | Ball Riding Retainer |
| Housing Material | Polyamide |
| Measure Units | Inch |
| Rolling Element | Ball Bearing |
| Speed (Max) | 2900 |
| Duty Series |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Standard Duty |
| Insert Material | 400 Series Stainless Steel |
| Expansion | No |
| Housing Base | Solid |
| Internal Clearance | Standard |
| Housing Type | Pillow Block, Tapped Base |
| Insert No. | SS-SB206-19 RG |
| Radial Dynamic Load Capacity (lb) | 2, 529 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-119394 |
| Part NumberiManufacturer catalog number | 73206BR/SS-U |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
