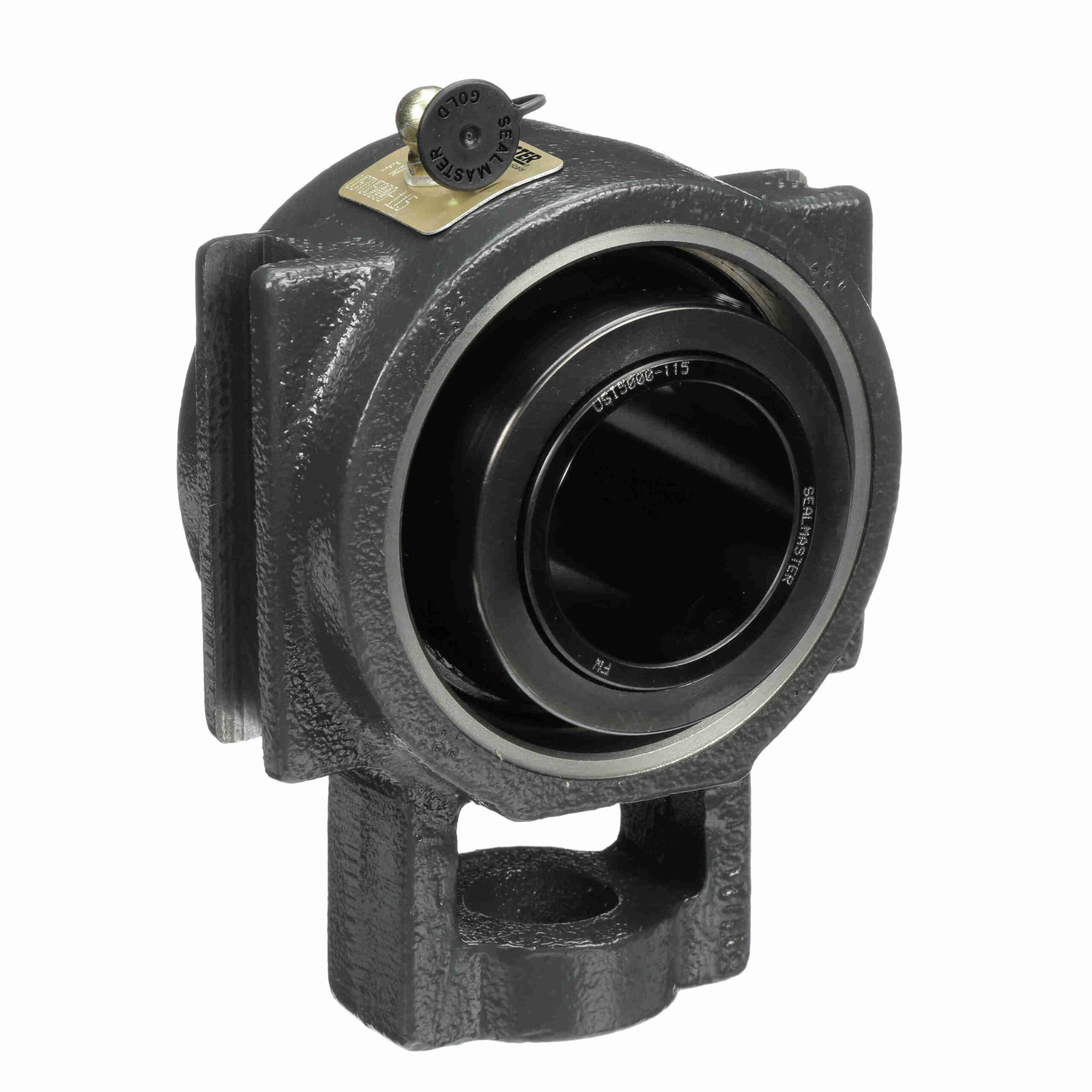

Sealmaster Mounted Cast Iron Wide Slot Take Up Spherical Roller - 52100 Bearing Steel, Black Oxided - Collar Mount Lock - USTU5000-300
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 737396 |
| Product Name | USTU5000-300 |
| Brand | Sealmaster |
| Weight | 23.05 lb |
| Package Length | 8.88 in |
| Package Width | 8.88 in |
| Package Height | 3.88 in |
| Speed [Max] (RPM) | 3000 rpm |
| Measure Units | Inch |
| Seal Type | Felt Labyrinth Seal |
| Rolling Element | Spherical Roller |
| Insert Material | 52100 Bearing Steel, Black Oxided |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Housing Construction |
| Solid |
| Misalignment | ±2.0° Misalignment - Dynamic |
| Bore Shape | Straight |
| Frame Type | Center Pull Wide Slot |
| Misalignment Type | Dynamic |
| Outer Ring Land Profile | Standard |
| Housing Color | Gray |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-119529 |
| Part NumberiManufacturer catalog number | 737396 |
| BrandiManufacturer or product brand | Sealmaster |
| CategoryiCatalog classification | Bearings > Take-ups |
