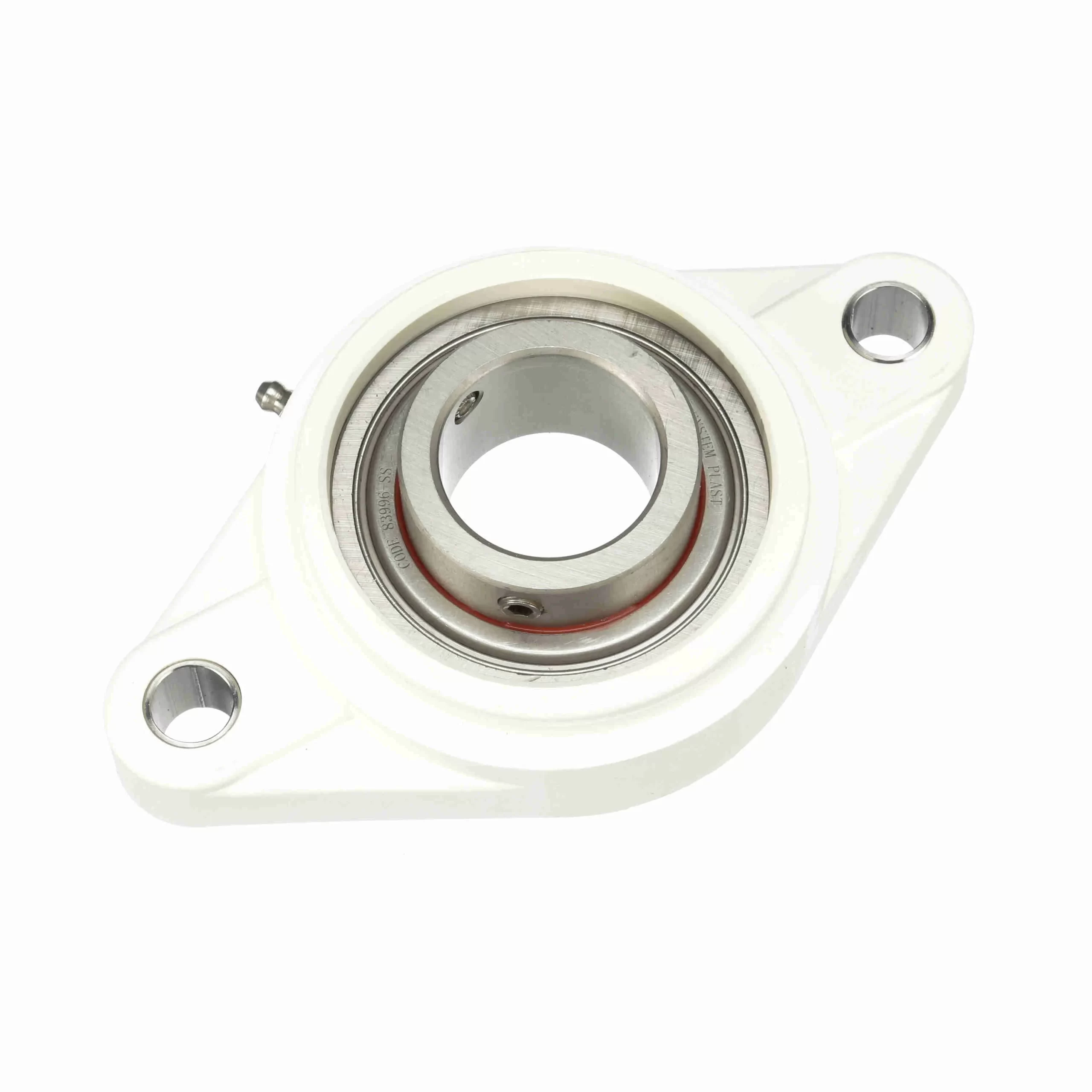

System Plast Mounted Nolu-Clean Tapped Base Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - UCFH208-24-SS-NC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 74208CG/SS-EC |
| Product Name | UCFH208-24-SS-NC |
| Brand | System Plast |
| Weight | 1.53 lb |
| Package Length | 6.4 in |
| Package Width | 4.9 in |
| Package Height | 1.85 in |
| Measure Units | Inch |
| Insert No. | SS-SB208-24 RG |
| Duty Series | Standard Duty |
| Housing Base | Solid |
| Internal Clearance | Standard |
| Expansion |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| No |
| Rolling Element | Ball Bearing |
| Housing Material | Nolu-Clean |
| Retainer Type | Ball Riding Retainer |
| Housing Type | Flange, Two Bolt |
| Relubricatable | Yes |
| Insert Material | 400 Series Stainless Steel |
| Radial Dynamic Load Capacity (lb) | 3, 777 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-119942 |
| Part NumberiManufacturer catalog number | 74208CG/SS-EC |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
