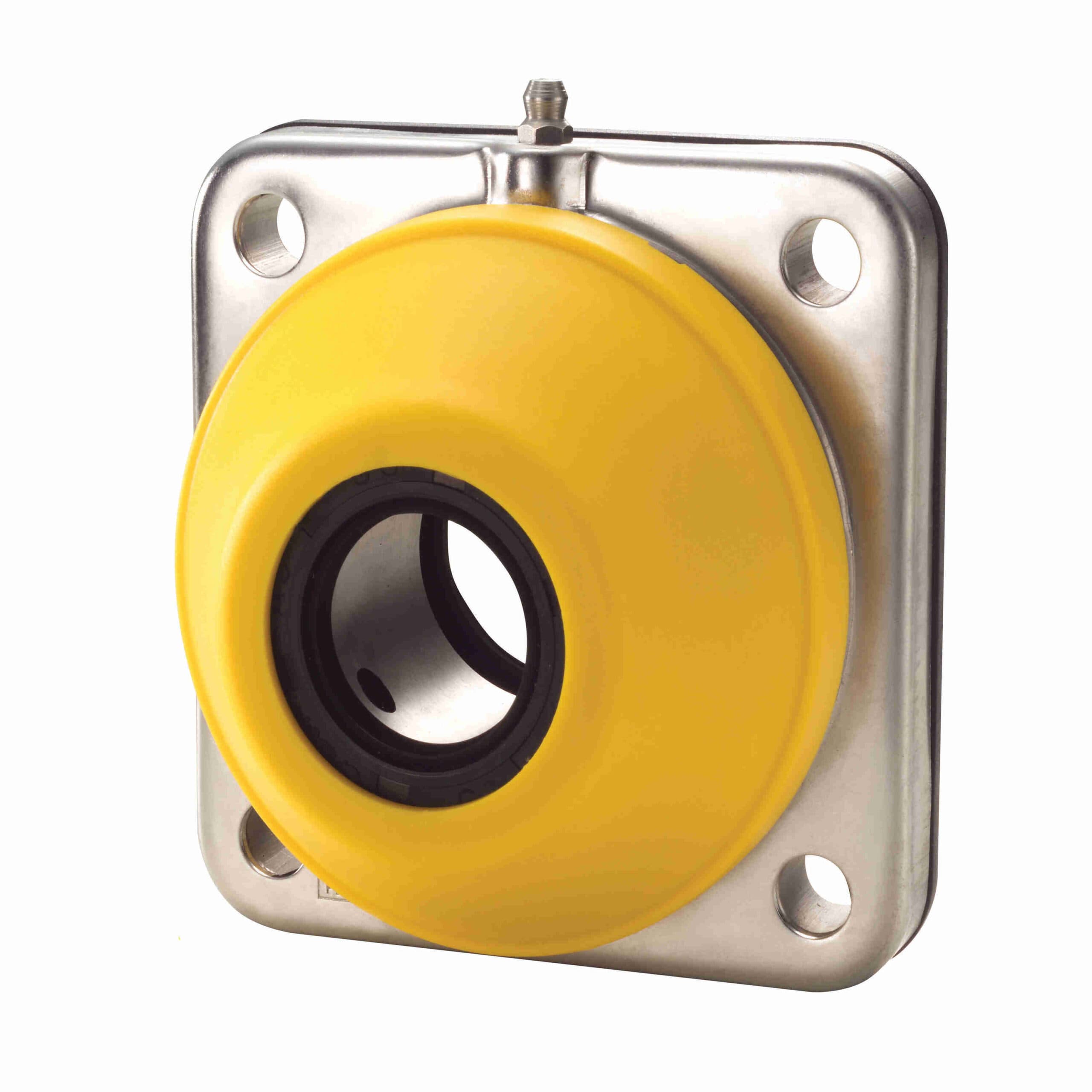

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Open End Cap/Back Seal included - UCFQ204-12-SS-OEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 75204VR/SS-EC |
| Product Name | UCFQ204-12-SS-OEC |
| Brand | System Plast |
| Weight | 0.51 lb |
| Package Length | 3.39 in |
| Package Width | 3.39 in |
| Package Height | 1.97 in |
| Internal Clearance | Standard |
| Measure Units | Inch |
| Housing Base | Solid |
| Speed (Max) | 4200 |
| Rolling Element | Ball Bearing |
| Retainer Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Ball Riding Retainer |
| Duty Series | Standard Duty |
| Insert No. | SS-SB204-12 RG |
| Insert Material | 400 Series Stainless Steel |
| Housing Material | Polyamide |
| Expansion | No |
| Housing Type | Flange, Four Bolt |
| Bore Shape | Straight |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-119951 |
| Part NumberiManufacturer catalog number | 75204VR/SS-EC |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
