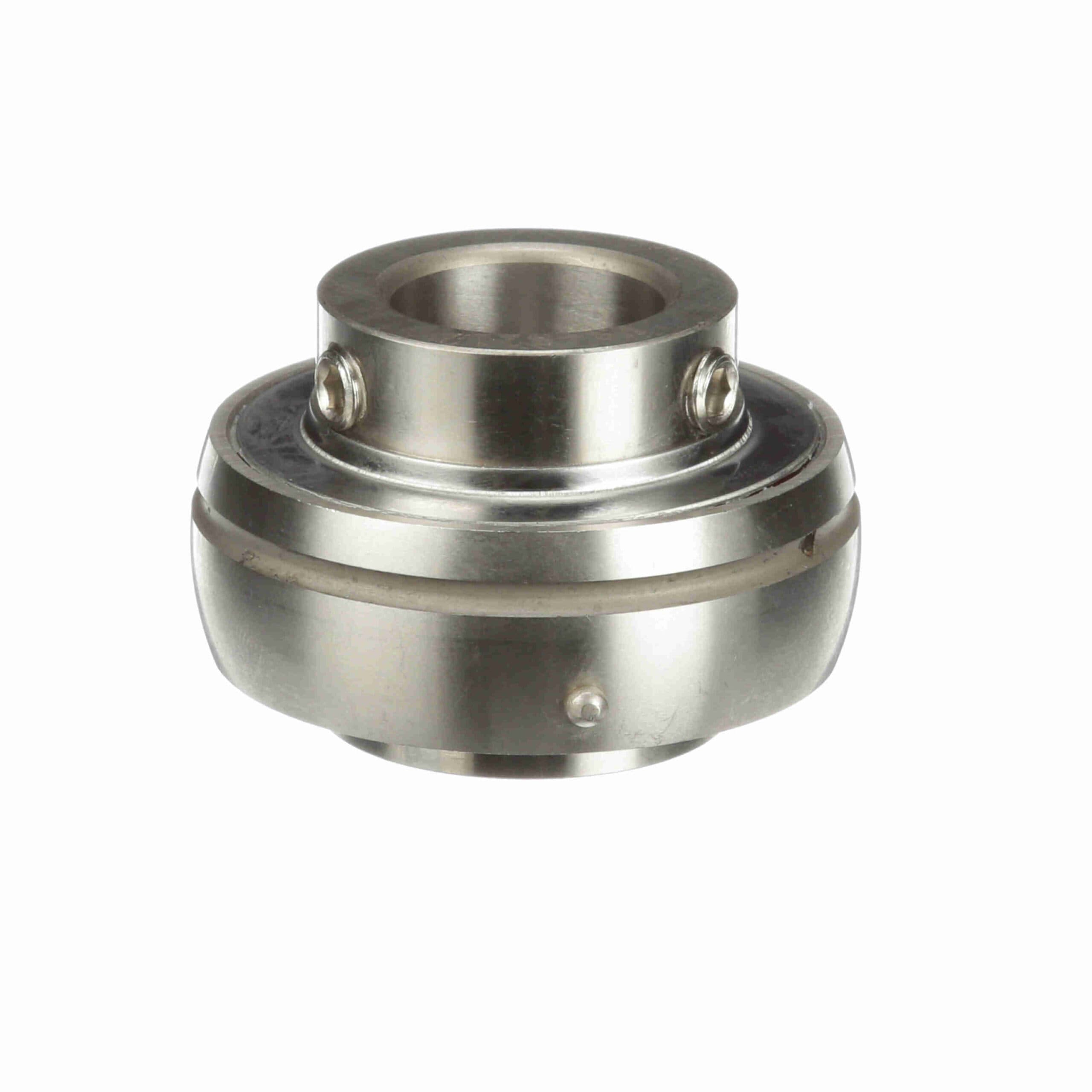

Browning Mounted insert Only Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant - VS-S222
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 764500 |
| Product Name | VS-S222 |
| Brand | Browning |
| Weight | 1 lb |
| Package Length | 3.13 in |
| Package Width | 1.75 in |
| Package Height | 3.13 in |
| Bore Shape | Straight |
| Maximum Operating Temperature | 200 °F |
| Seal Type | Single Lip Contact Seal with Flinger |
| Measure Units | Inch |
| Duty Series | Standard |
| Radius |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $374.24 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 0.04 |
| Rolling Element | Ball Bearing |
| Set Screw Thread | 5/16-24 |
| Housing Type | Insert Only |
| Inner-Race Heat-Treat Method | Zone-Hardened |
| Insert Material | 400 Series Stainless Steel |
| Retainer Type | Ball Riding Retainer |
| Speed (Max) | 4000 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120151 |
| Part NumberiManufacturer catalog number | 764500 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Bearing Inserts |
