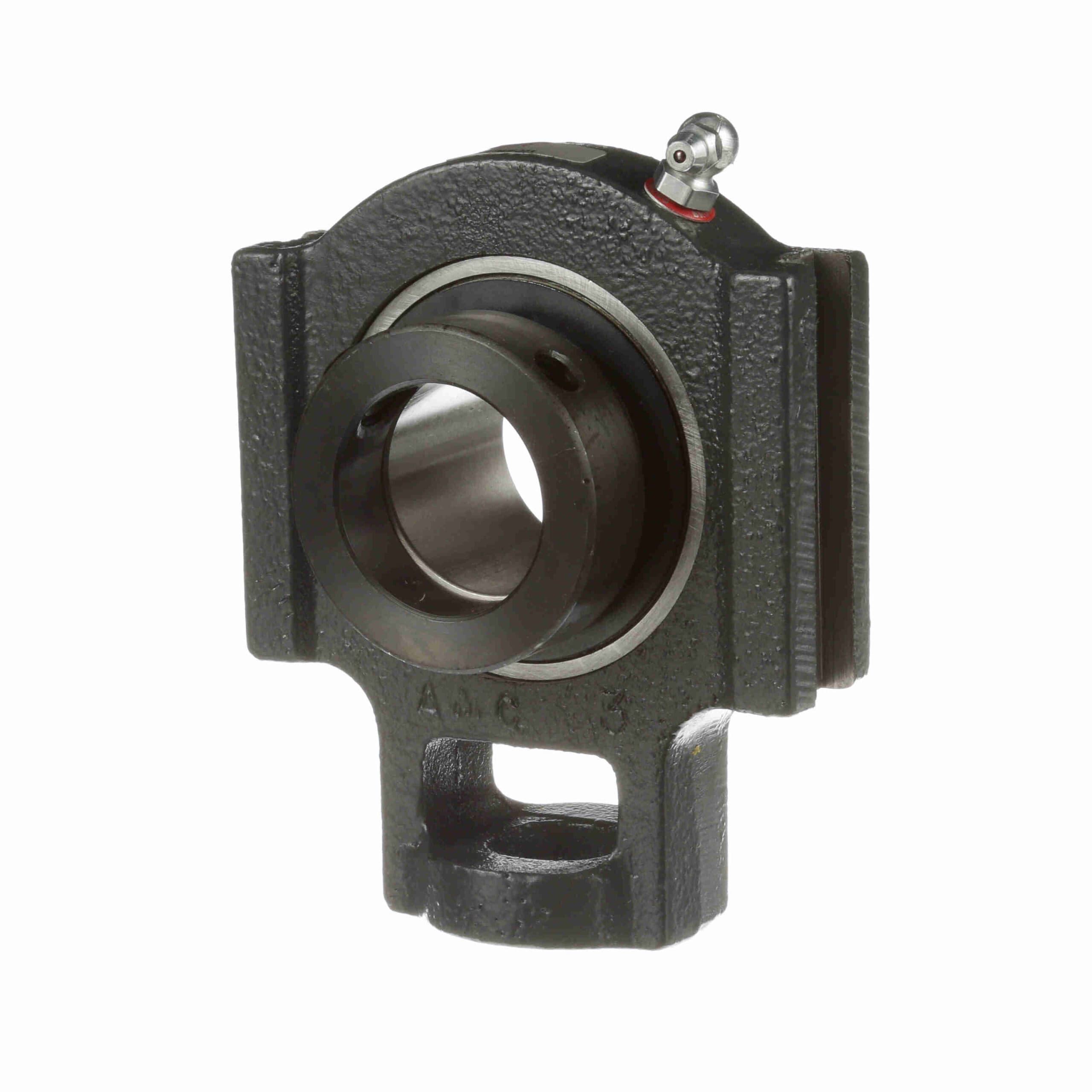

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Eccentric Lock - VTWE-239
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 767546 |
| Product Name | VTWE-239 |
| Brand | Browning |
| Weight | 9.54 lb |
| Package Length | 7.5 in |
| Package Width | 7.38 in |
| Package Height | 2.63 in |
| Seal Type | Single Lip Contact Seal with Flinger |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Measure Units | Inch |
| Rolling Element | Ball Bearing |
| Internal Clearance | Standard |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Housing Construction |
| One Piece |
| Bore Shape | Straight |
| Misalignment | ±1.5° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb) | 11, 789 lb |
| Housing Color | Gray |
| Replaceable Insert | Yes |
| Misalignment Type | Static Only |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120483 |
| Part NumberiManufacturer catalog number | 767546 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Take-ups |
