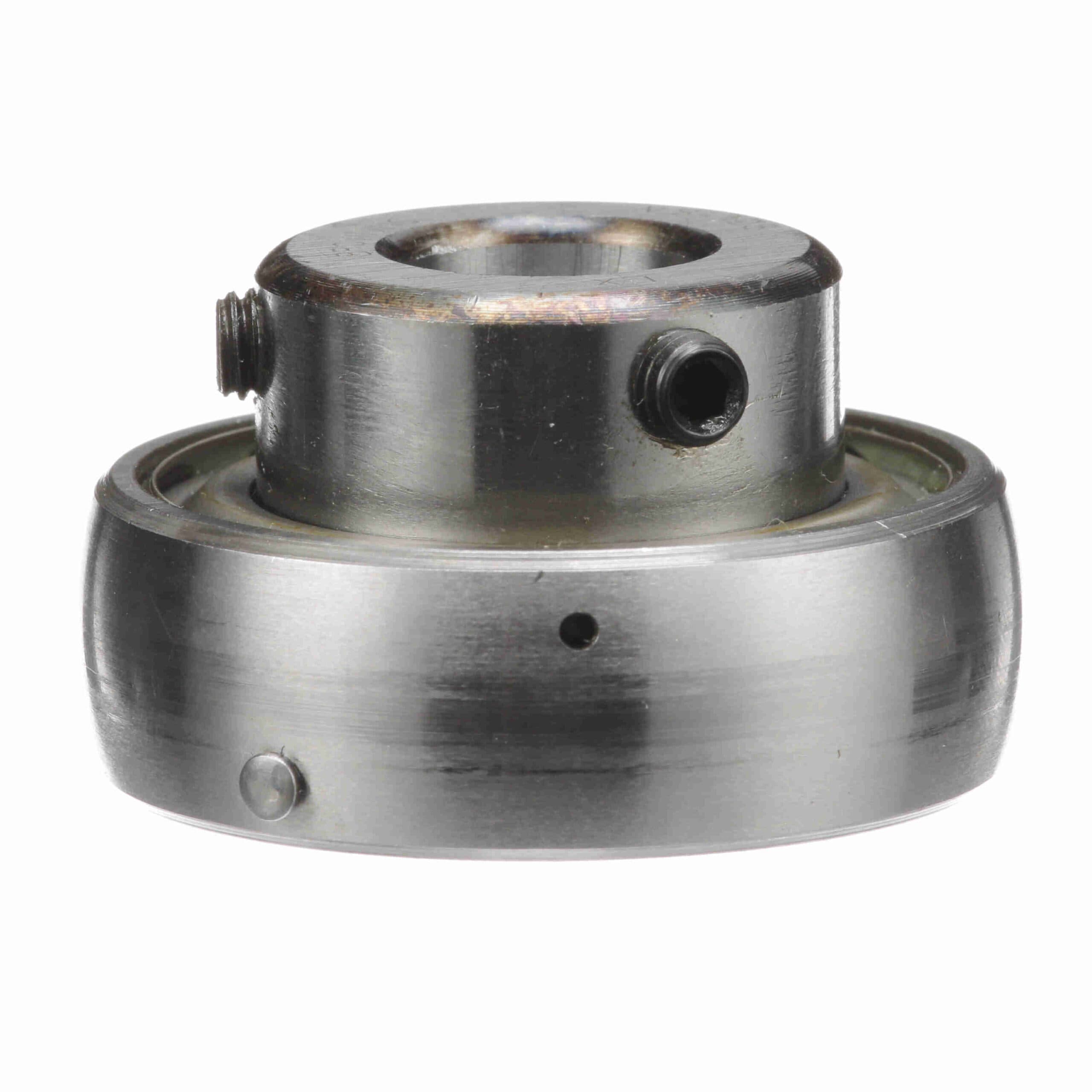

Browning Mounted Insert Only Ball Bearing - 52100 Bearing Steel - Setscrew Lock - VS-108
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 767567 |
| Product Name | VS-108 |
| Brand | Browning |
| Weight | 0.26 lb |
| Package Length | 2.4 in |
| Package Width | 2.4 in |
| Package Height | 1.4 in |
| Radius | 0.055 |
| Inner-Race Heat-Treat Method | Zone-Hardened |
| Insert Material | 52100 Bearing Steel |
| Duty Series | Intermediate |
| Seal Type | Single Lip Contact Seal |
| Rolling Element |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $141.59 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Ball Bearing |
| Housing Type | Insert Only |
| Retainer Type | Ball Riding Retainer |
| Measure Units | Inch |
| Bore Shape | Straight |
| Set Screw Thread | 10-32 |
| Maximum Operating Temperature | 200 °F |
| Locking Type | Setscrew |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120493 |
| Part NumberiManufacturer catalog number | 767567 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Bearing Inserts |
