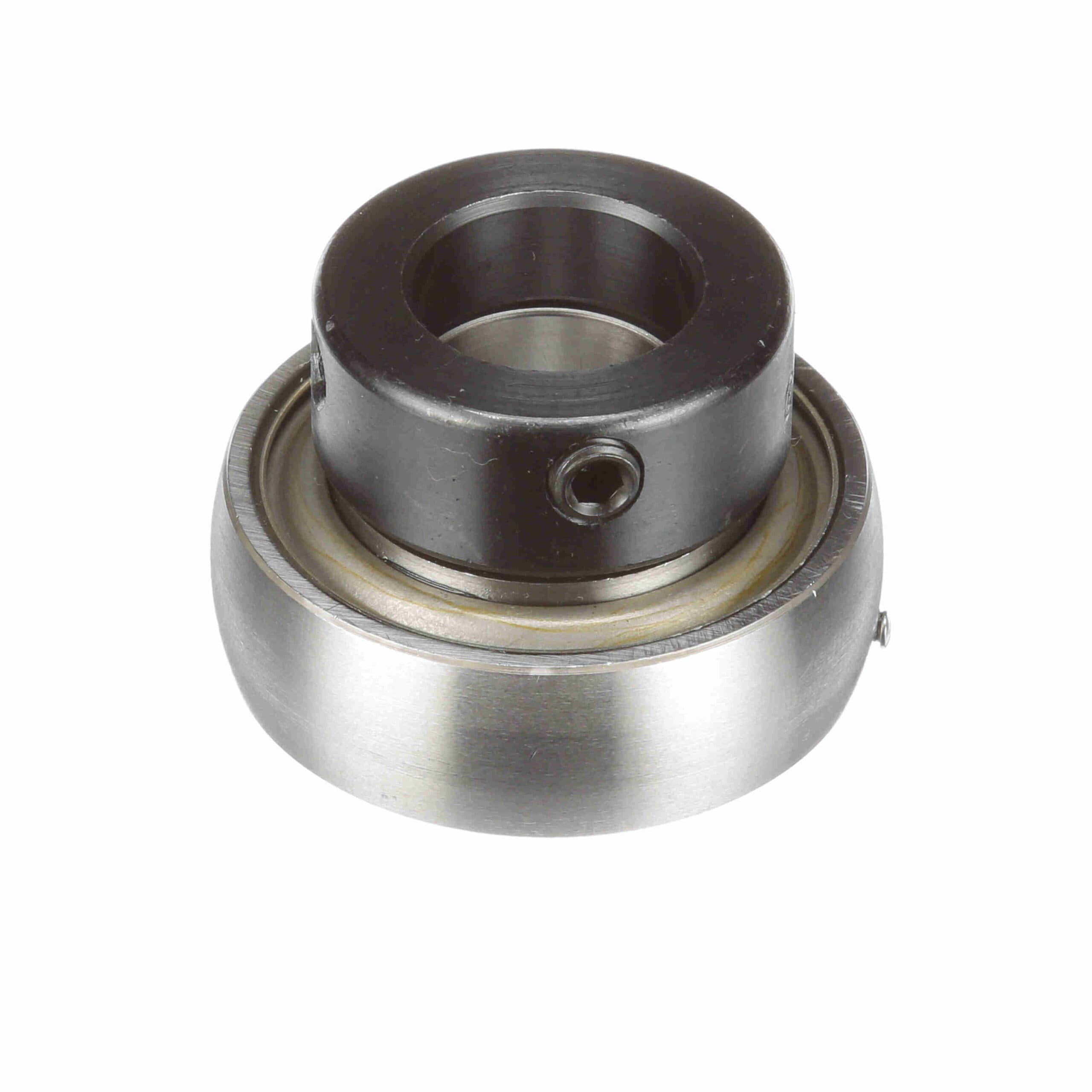

Browning Mounted Insert Only Ball Bearing - 52100 Bearing Steel - Eccentric Lock - VE-112
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 767741 |
| Product Name | VE-112 |
| Brand | Browning |
| Weight | 0.44 lb |
| Package Length | 2.5 in |
| Package Width | 2.5 in |
| Package Height | 1.4 in |
| Set Screw Thread | 46844 |
| Insert Material | 52100 Bearing Steel |
| Radius | 0.07 |
| Housing Type | Insert Only |
| Rolling Element | Ball Bearing |
| Bore Shape |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Straight |
| Measure Units | Inch |
| Radial Dynamic Load Capacity (lb) | 2, 611 lb |
| Speed (Max) (RPM) | 4000 rpm |
| Internal Clearance | Standard |
| Misalignment | ±1.5° Misalignment - Static Only |
| Misalignment Type | Static Only |
| Bearing Insert Coating | Uncoated |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120585 |
| Part NumberiManufacturer catalog number | 767741 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Bearing Inserts |
