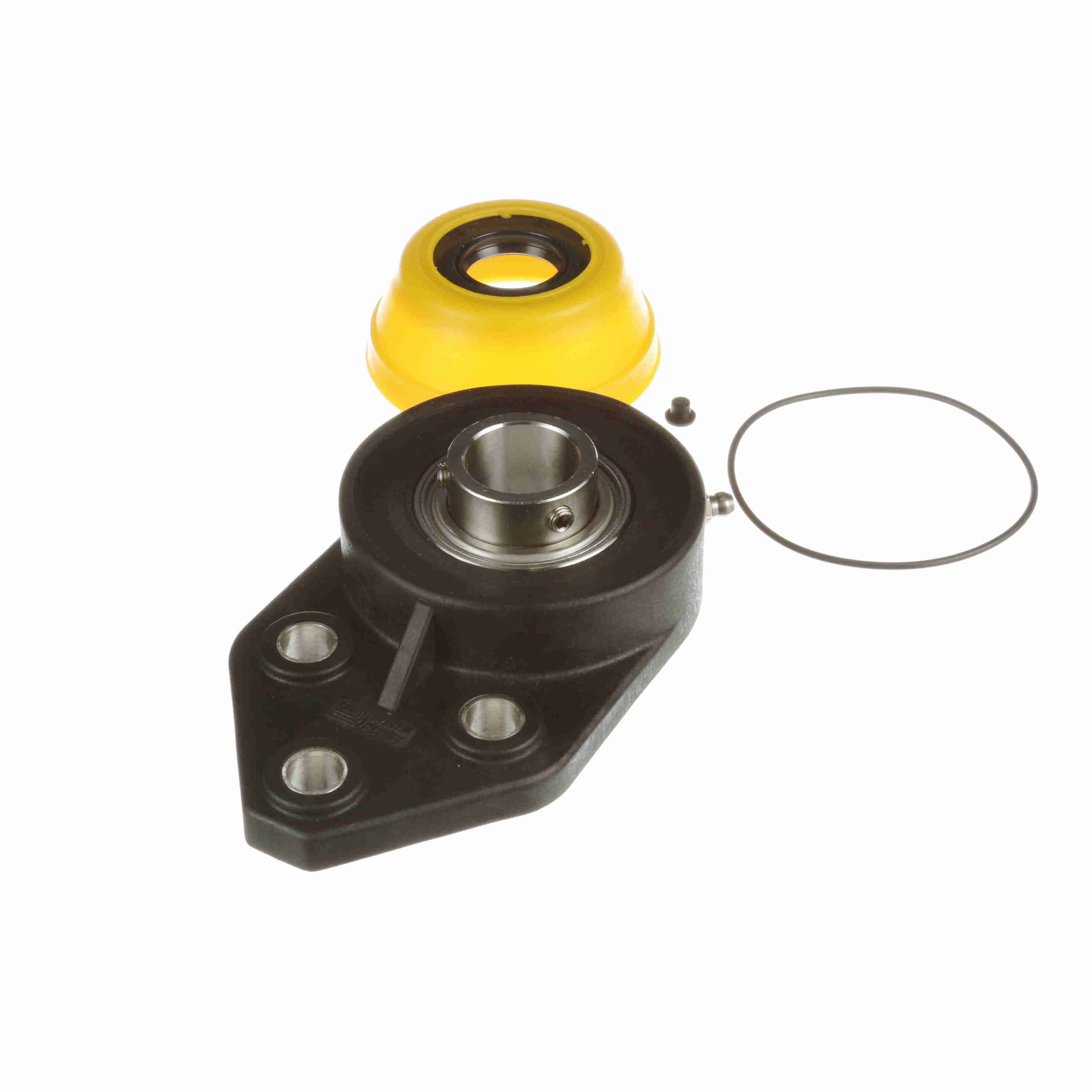

System Plast Mounted Polyamide Three Bolt Flange Ball Bearing - 400 Series Stainless Steel - Setscrew Lock - Open End Cap/Back Seal included - UCFBZ205-16-SS-OEC
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 77206FRA/SS |
| Product Name | UCFBZ205-16-SS-OEC |
| Brand | System Plast |
| Weight | 1.39 lb |
| Package Length | 5.3 in |
| Package Width | 4.8 in |
| Package Height | 2.8 in |
| Internal Clearance | Standard |
| Bore Shape | Straight |
| Retainer Type | Ball Riding Retainer |
| Housing Material | Polyamide |
| Housing Type | Flange, Bracket, Three Bolt |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Insert No. |
| SS-SB205-16 RG |
| Insert Material | 400 Series Stainless Steel |
| Duty Series | Light Duty |
| Rolling Element | Ball Bearing |
| Measure Units | Inch |
| Housing Base | Solid |
| Speed (Max) | 3500 |
| Expansion | No |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120732 |
| Part NumberiManufacturer catalog number | 77206FRA/SS |
| BrandiManufacturer or product brand | System Plast |
| CategoryiCatalog classification | Bearings > Ball Bearings |
