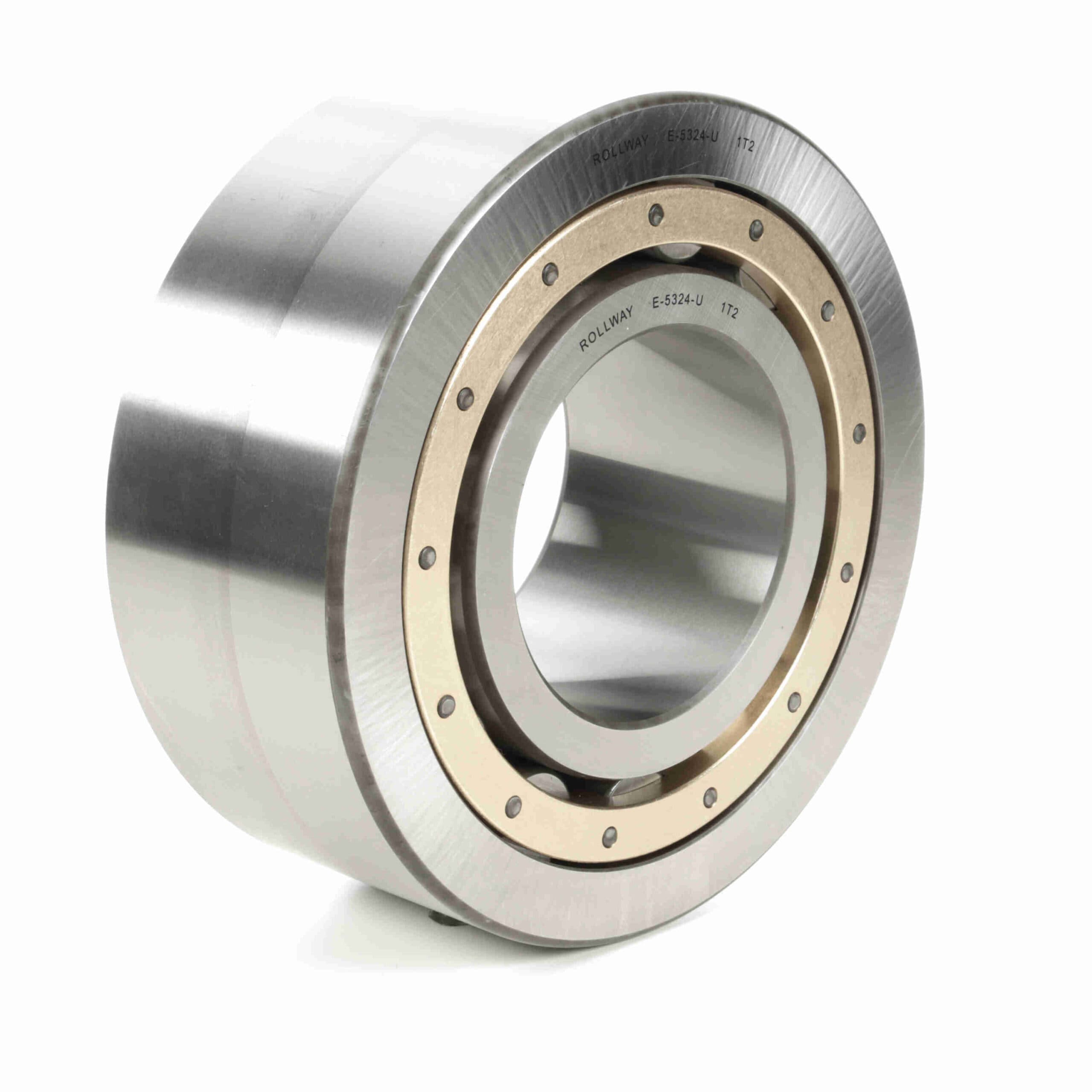

Rollway Radial Cylindrical Roller Bearing – Caged Roller - Straight Bore - Unsealed - E-5324-U
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | E5324U |
| Product Name | E-5324-U |
| Brand | Rollway |
| Material | High Chromium Bearing Steel |
| Weight | 64.1 lb |
| Package Length | 12.25 in |
| Package Width | 12.25 in |
| Package Height | 5 in |
| Static Load Rating (kN) | 1, 226.55262398401 kN |
| Seal Type | Unsealed |
| Inner Race Configuration | Separable Both Directions |
| Outer Race Configuration | Non-Separable |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Dynamic Load Rating (kN) |
| 846.807945992007 kN |
| Flanges | (2) Flanges on Outer Ring |
| Bore Type | Straight |
| Cage Material | Brass |
| Misalignment | No |
| Radial Clearance | Normal |
| Number of Rows | 1 |
| Rolling Element | Cylindrical Roller |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-121000 |
| Part NumberiManufacturer catalog number | E5324U |
| BrandiManufacturer or product brand | Rollway |
| CategoryiCatalog classification | Bearings > Cylindrical Bearings |
