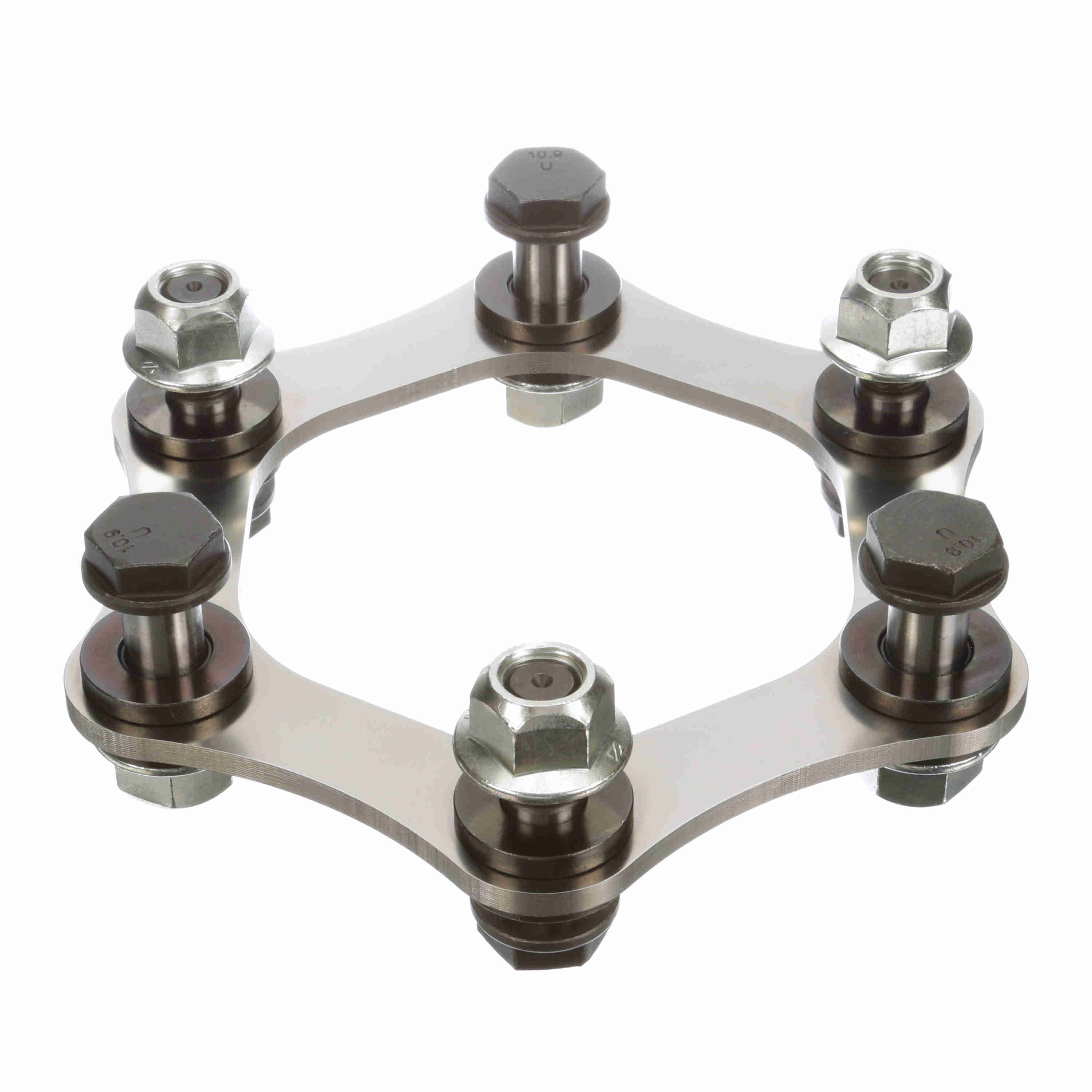

LAMIDISC DISC PACK KIT SX 278-6

Name: LAMIDISC DISC PACK KIT SX 278-6
Brand: Jaure
SKU: KTLA0010029
Price: 1311.60 USD
Availability: OutOfStock

SPARE COMPONENTS

Part NumberKTLA0010029

GDS #GDS-121311

Angular Misalignment, ±ΔKw (2) - deg

0.33 °

Component Type

Disc Pack Assembly

Coupling Size

278

Disc Shape

Scalloped

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

Special convoluted disc design to reduce disc stresses and restoring forces.
Discs made of high - grade stainless steel (AISI-301), ensuring high strength, high endurance to fatigue and resistance to most environmental conditions. Possibility to supply coated discs.
Unitized disc packs and designed with special metric high grade bolts and nuts with incorporated washers. Reduced tightening torque JS nuts available for large sizes and high bolt torques.

Part Number	KTLA0010029
Product Name	LAMIDISC DISC PACK KIT SX 278-6
Brand	Jaure
Weight	8.505 lb
Angular Misalignment, ±ΔKw (2) - deg	0.33 °
Component Type	Disc Pack Assembly
Coupling Size	278
Disc Shape	Scalloped
Number of Bolt Holes	6
Style	Lamidisc™
Torque Rating (N⋅m)	14,200 N·m
HTC	8483.90.8010

Quantity	Price Each	Save
1+	$1311.60	—

Datasheets, CAD drawings, and installation instructions are available on request.

GDS #iGDS internal part number	GDS-121311
Part NumberiManufacturer catalog number	KTLA0010029
BrandiManufacturer or product brand	Jaure
UPCiUniversal Product Code	662384000207
CategoryiCatalog classification	Couplings > Disc Couplings
