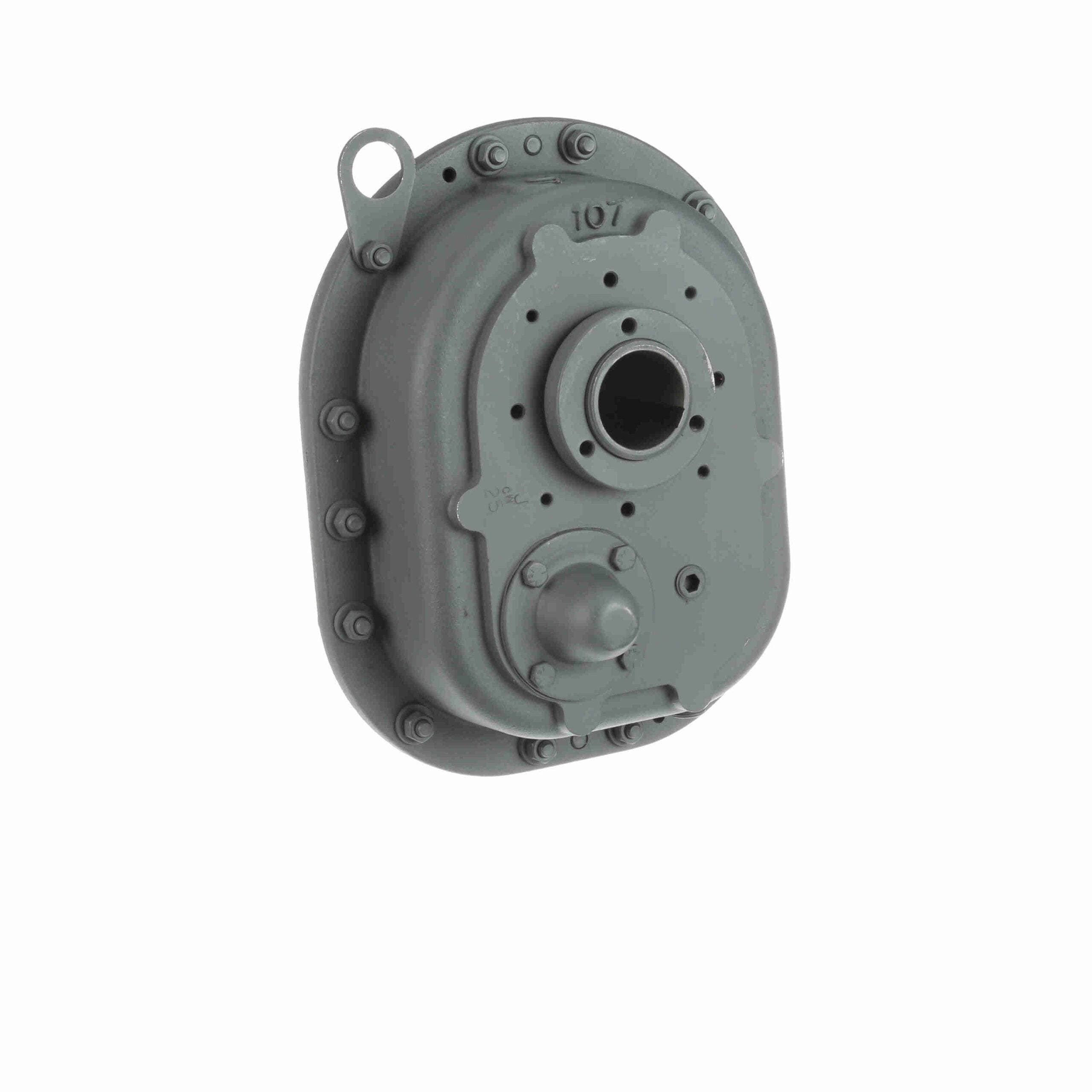

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer - 107SMTP25
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | PB0004 |
| Product Name | 107SMTP25 |
| Brand | Browning |
| Weight | 56.85 lb |
| Package Length | 18.5 in |
| Package Width | 12.9 in |
| Package Height | 13.2 in |
| Bolt Size (in) | 0.375 in |
| Input Speed | 1750 |
| Ratio | 25:1 |
| Efficiency | 80 |
| Product Type | TorqTaper Plus (SMTP) |
| Input Torque |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 36.013 in-Lbs @1750 input rpm, 1 HP |
| Output Speed | 70 |
| Housing Height (in) | 12.07 in |
| Housing Width (in) | 9.76 in |
| Housing Length (in) | 7.89 in |
| Standards met | AGMA |
| Maximum Output Size (in) | 1.4375 in |
| Ratio Range | 25:1 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-122100 |
| Part NumberiManufacturer catalog number | PB0004 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
