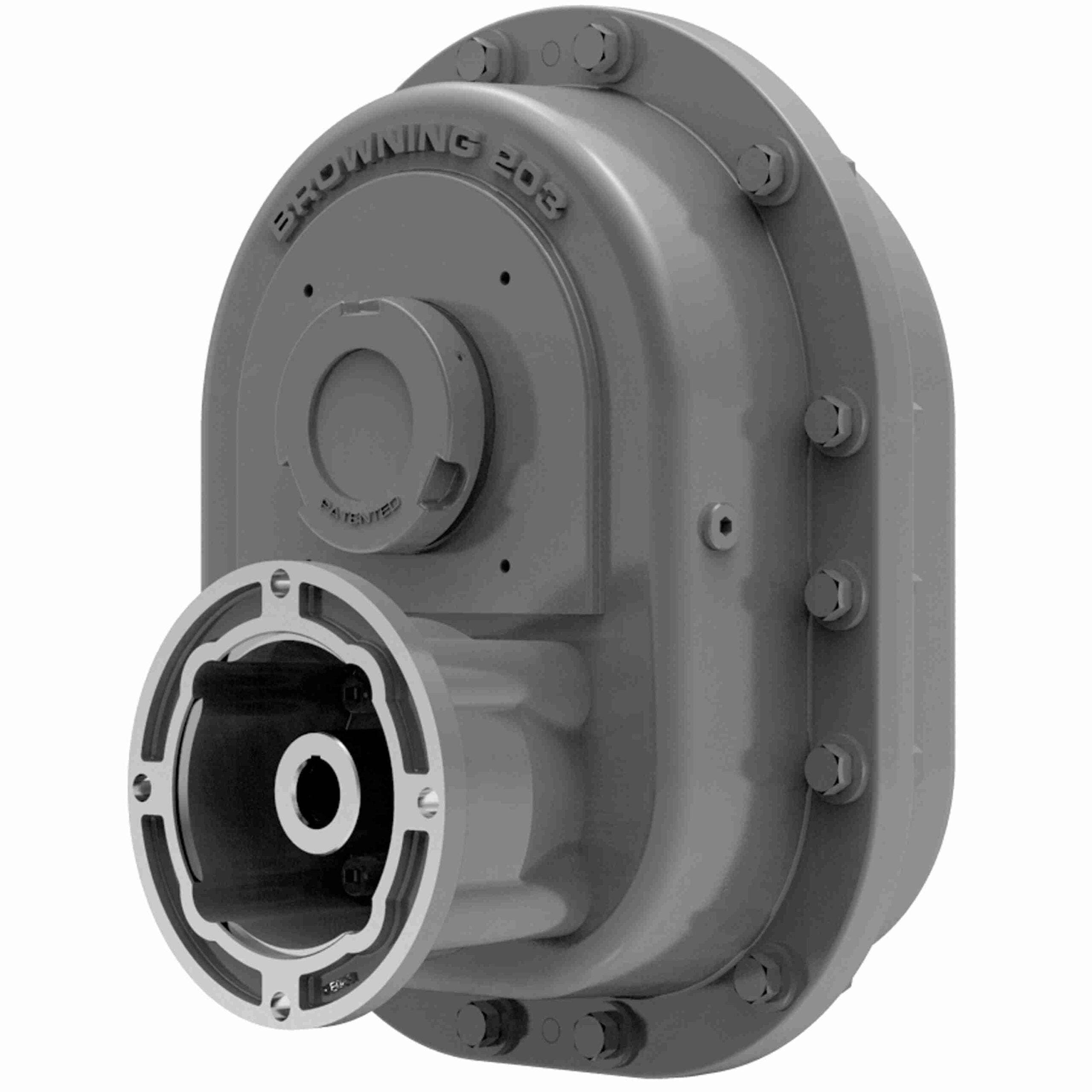

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer - 107CMTP35 Q140
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | PB0019 |
| Product Name | 107CMTP35 Q140 |
| Brand | Browning |
| Weight | 61 lb |
| Package Length | 18.5 in |
| Package Width | 13 in |
| Package Height | 13.5 in |
| Input Speed | 1750 |
| Product Type | C-Face TorqTaper Plus (CMTP) |
| Input Torque | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Ratio | 35:1 |
| Output Speed | 50 |
| Bolt Size (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 0.375 in |
| Efficiency | 80 |
| Mounting Style | Shaft mount |
| Reducer Size | 107 |
| Maximum Output Bore | 1.4375 |
| Ratio Range | 30:1 |
| Gear Type | Helical |
| Input Style | C-Face Quill |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-122106 |
| Part NumberiManufacturer catalog number | PB0019 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
