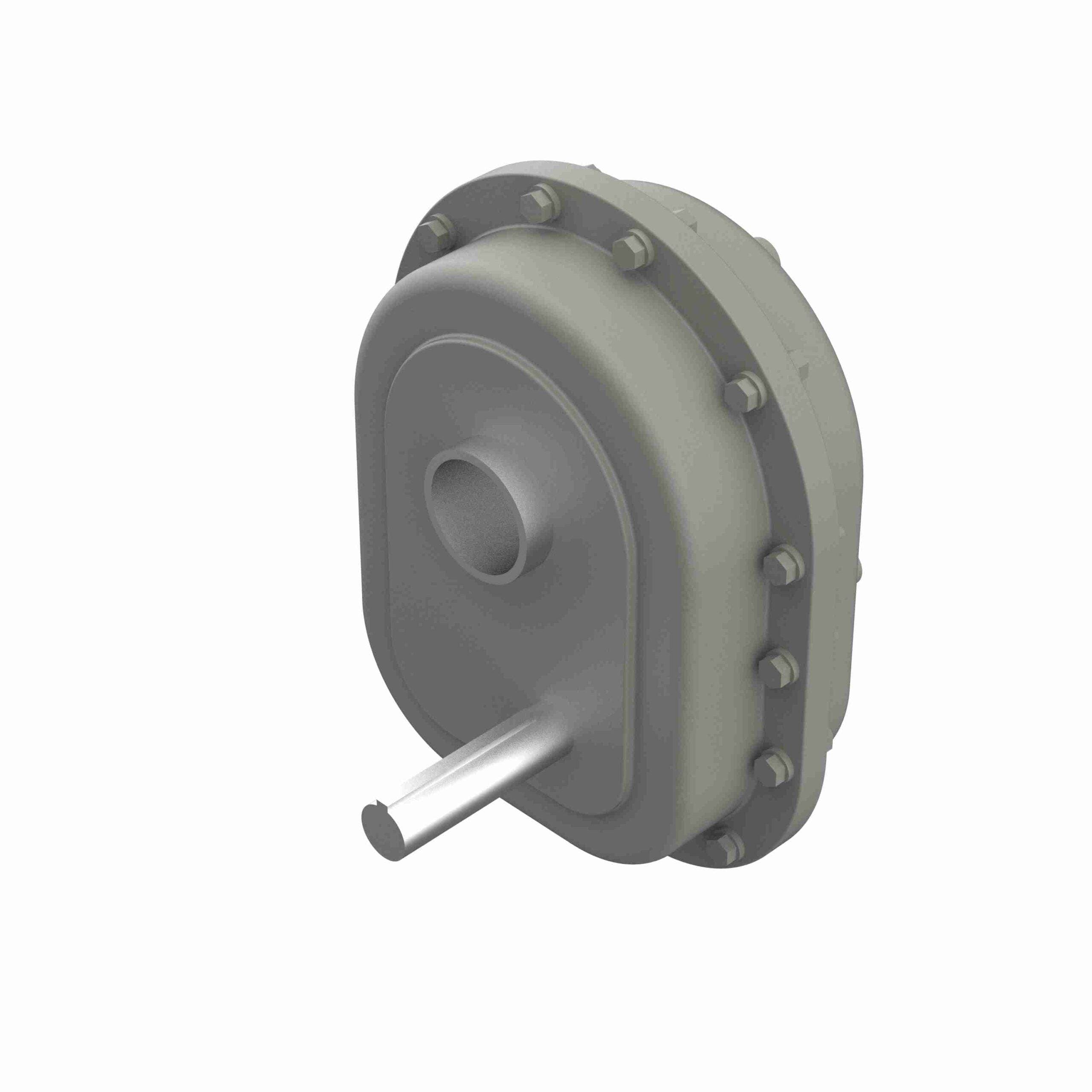

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer - 307SMTP15
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | PG0003 |
| Product Name | 307SMTP15 |
| Brand | Browning |
| Weight | 324 lb |
| Package Length | 27.5 in |
| Package Width | 20 in |
| Package Height | 23.5 in |
| Output Speed | 116.67 |
| Ratio | 15:1 |
| Input Torque | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Product Type | TorqTaper Plus (SMTP) |
| Bolt Size (in) | 0.5 in |
| Efficiency |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 80 |
| Input Speed | 1750 |
| Standards met | AGMA |
| Housing Length (in) | 12.57 in |
| Housing Width (in) | 19.04 in |
| Housing Height (in) | 24.37 in |
| Maximum Output Size (in) | 3.4375 in |
| Mounting Style | Shaft mount |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-122270 |
| Part NumberiManufacturer catalog number | PG0003 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
