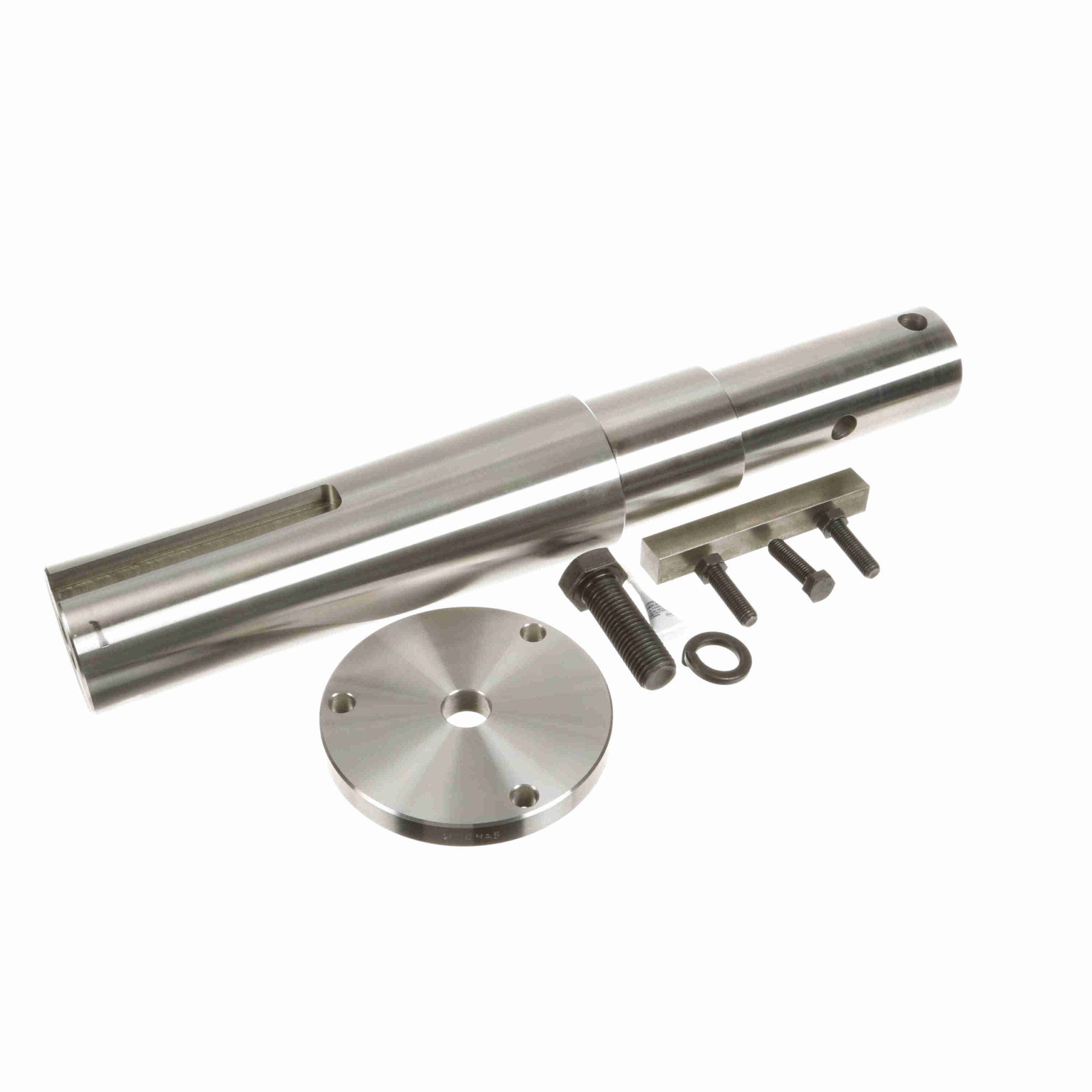

Browning Torque Taper Plus Shaft Mount Reducers Screw Conveyor Accessory - 307DSP300
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | PG9311 |
| Product Name | 307DSP300 |
| Brand | Browning |
| Weight | 87 lb |
| Package Length | 26.88 in |
| Package Width | 6.62 in |
| Package Height | 6.5 in |
| Screw Diameter | 12-20 |
| Product Type | TorqTaper Plus (SMTP) |
| Key | .500 x .500 x 6.5 |
| Drive Shaft Diameter | 3 in |
| Reducer Size | 307 |
| Used Ratio |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5:1, 9:1, 15:1, 25:1 or 35:1 |
| Series | 307DSP |
| Hole Diameter (in) | 0.7813 in |
| Distance between Shaft holes (in) | 3 in |
| Shaft Projecting Length (in) | 6.88 in |
| Accessory Type | Screw Conveyor Accessories |
| Housing Material | Steel |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-122285 |
| Part NumberiManufacturer catalog number | PG9311 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
