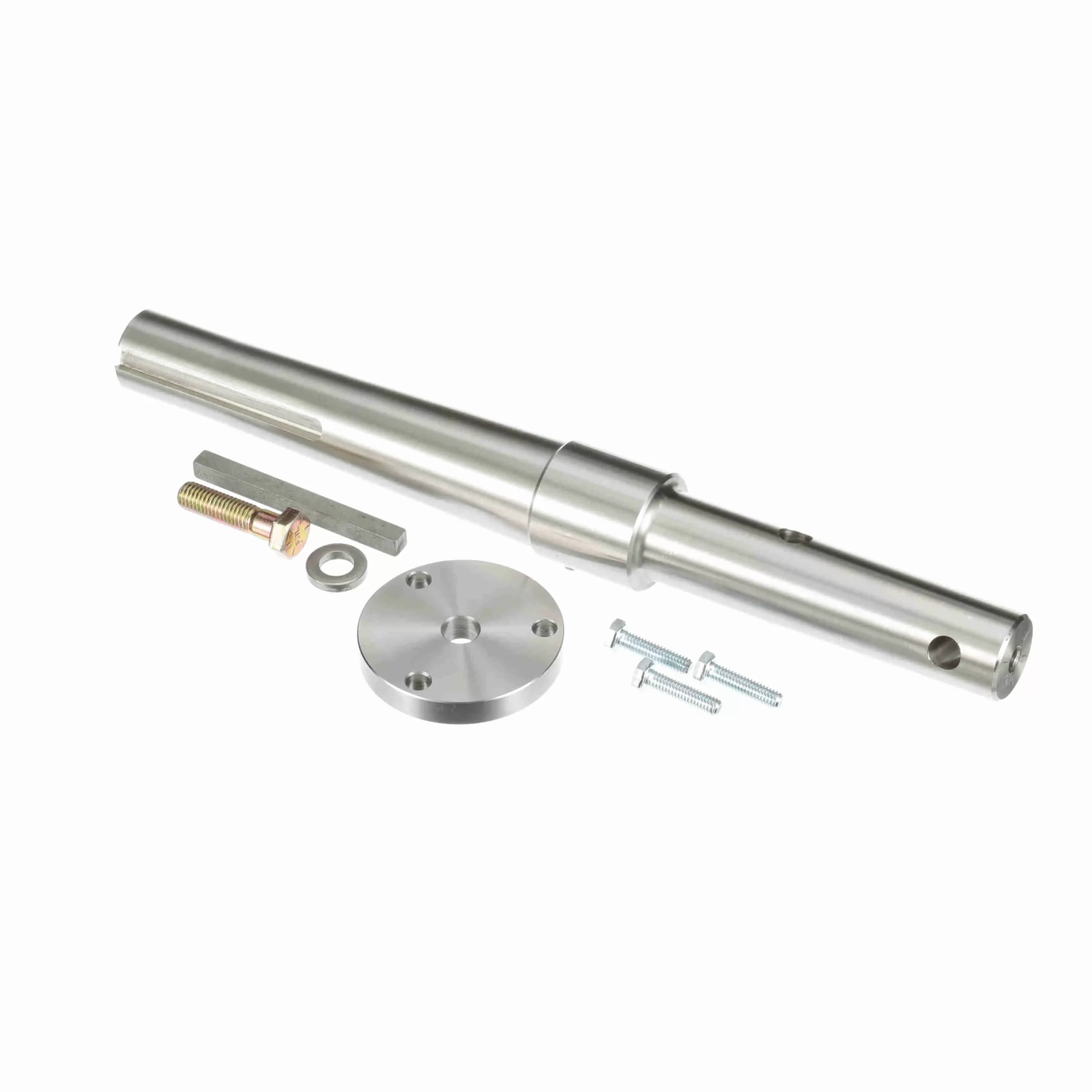

Browning Torque Taper Plus Shaft Mount Reducers Screw Conveyor Accessory - 315DSP307SS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | PH9315 |
| Product Name | 315DSP307SS |
| Brand | Browning |
| Weight | 97 lb |
| Package Length | 28.5 in |
| Package Width | 7.88 in |
| Package Height | 9 in |
| Screw Diameter | 18-24 |
| Key | .500 x .500 x 7.5 |
| Product Type | TorqTaper Plus (SMTP) |
| Reducer Size | 315 |
| Used Ratio | 5:1, 9:1, 15:1, 25:1 or 35:1 |
| Drive Shaft Diameter |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 3.4375 in |
| Distance between Shaft holes (in) | 4 in |
| Series | 315DSP |
| Hole Diameter (in) | 0.9063 in |
| Housing Material | Stainless Steel |
| Accessory Type | Screw Conveyor Accessories |
| Shaft Projecting Length (in) | 9.13 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-122316 |
| Part NumberiManufacturer catalog number | PH9315 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
