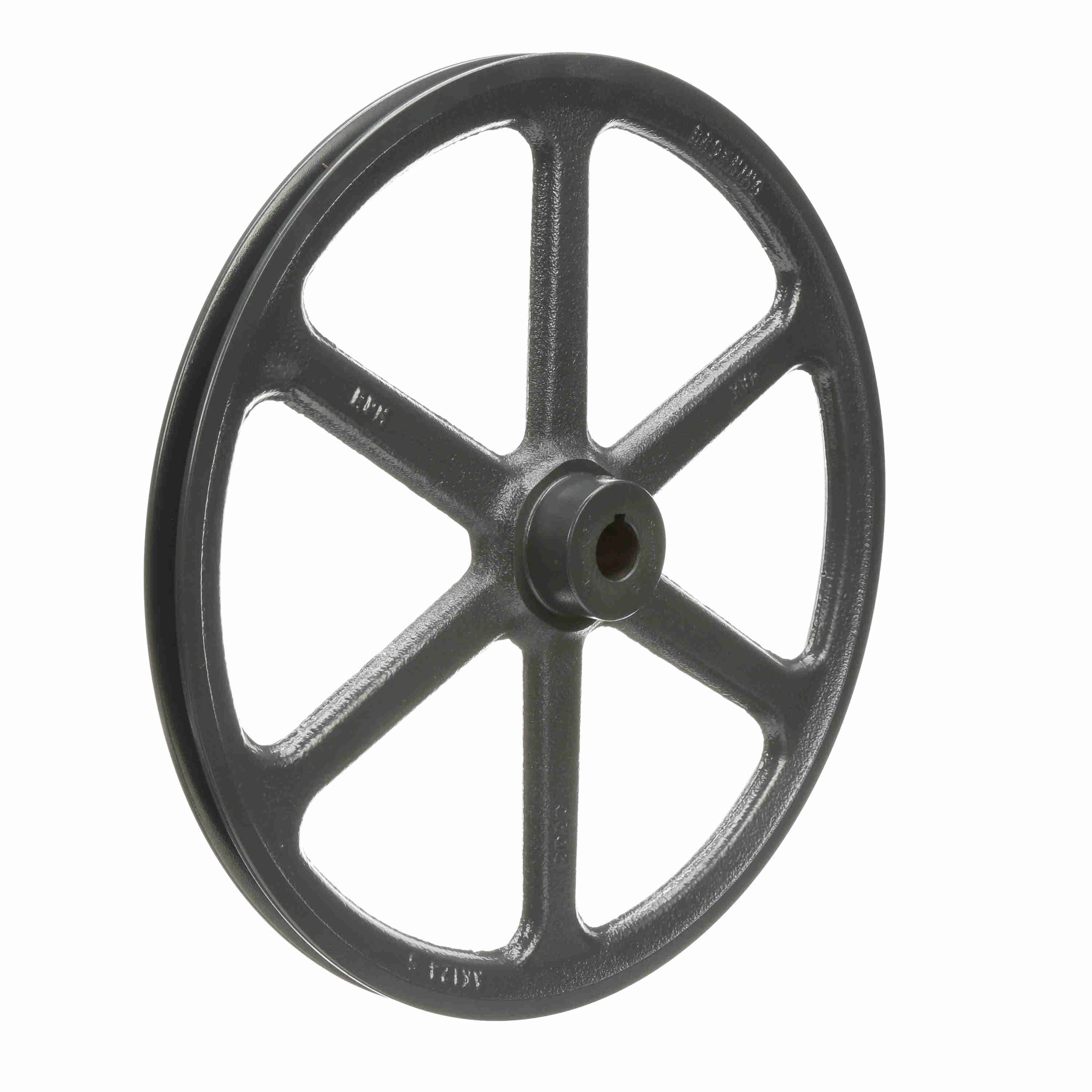

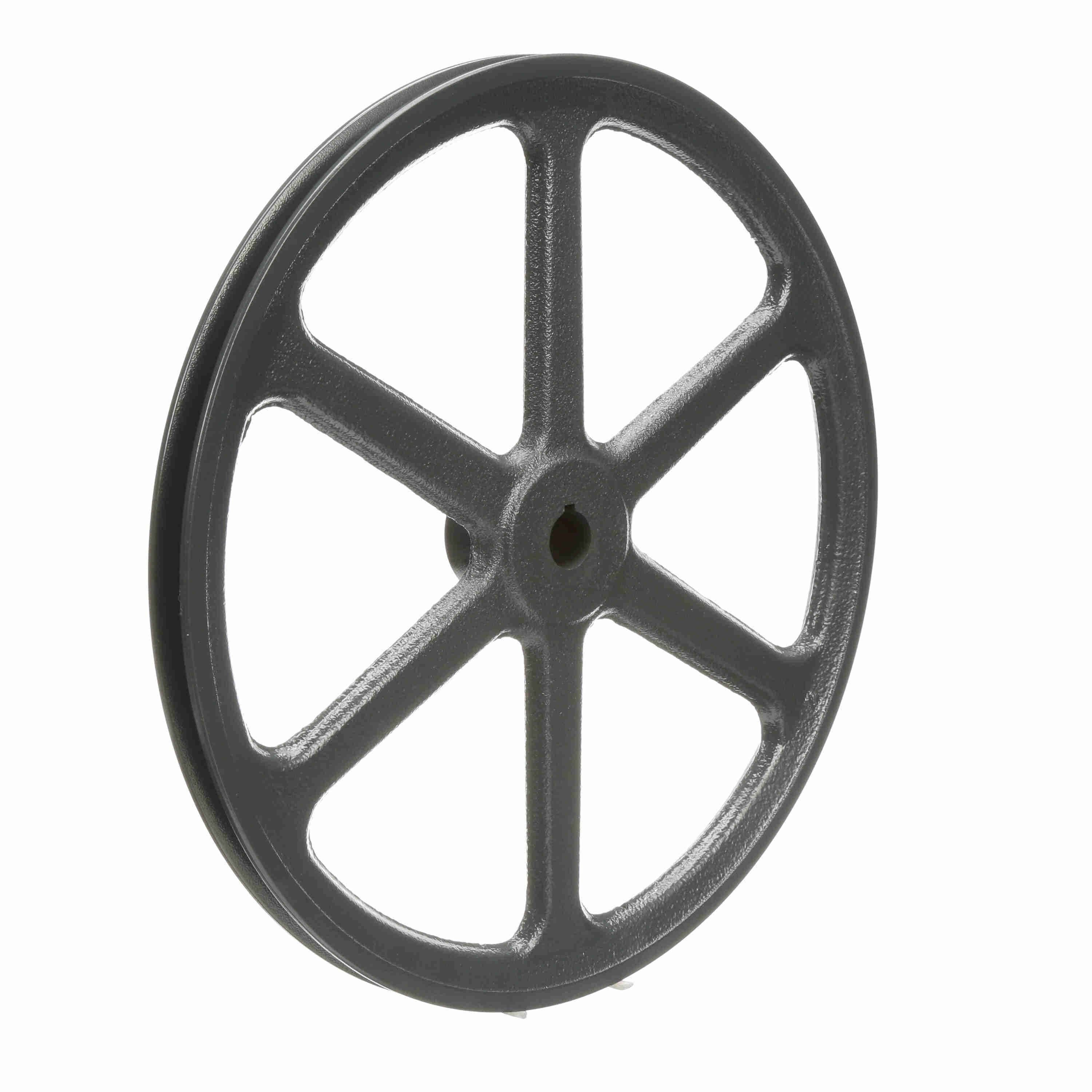

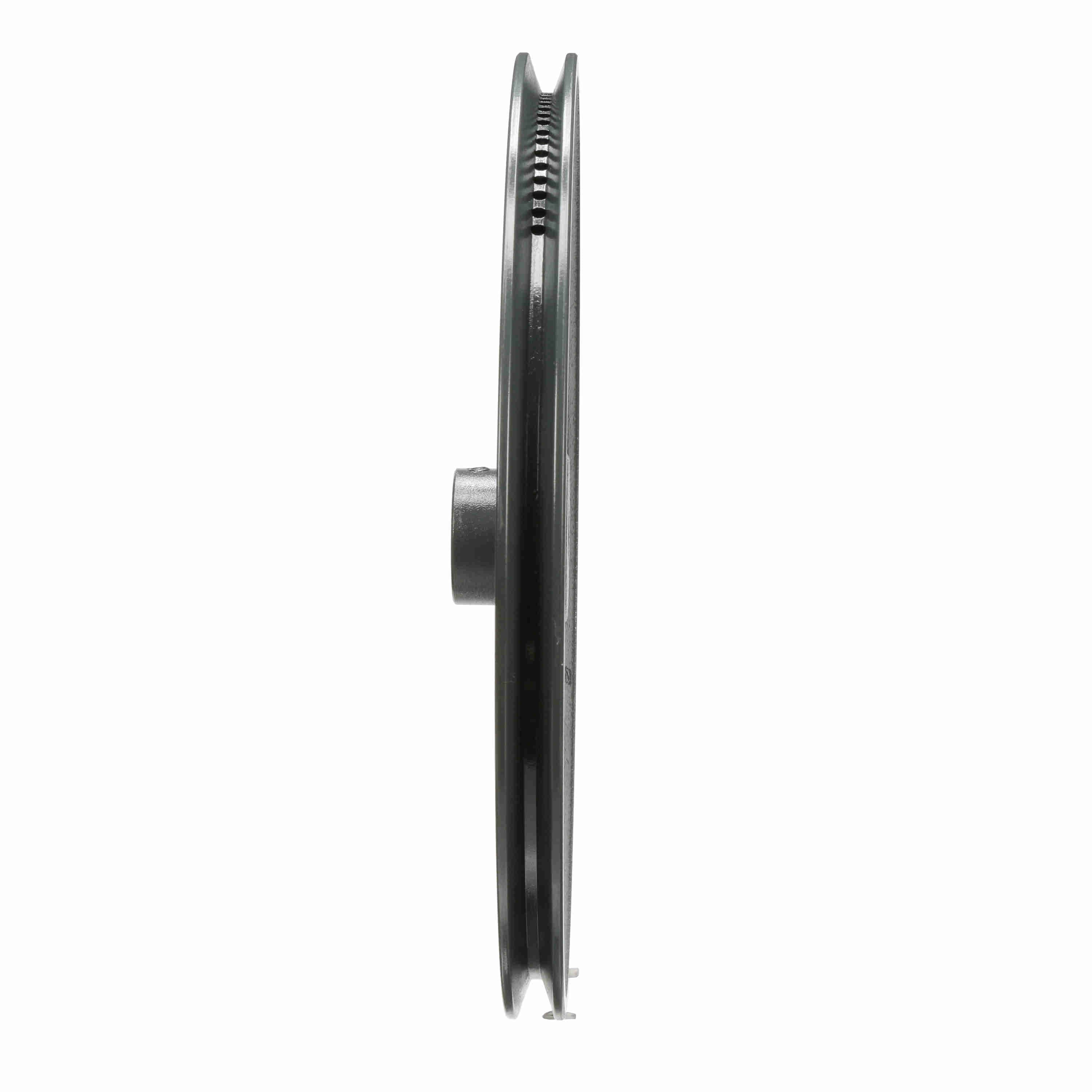

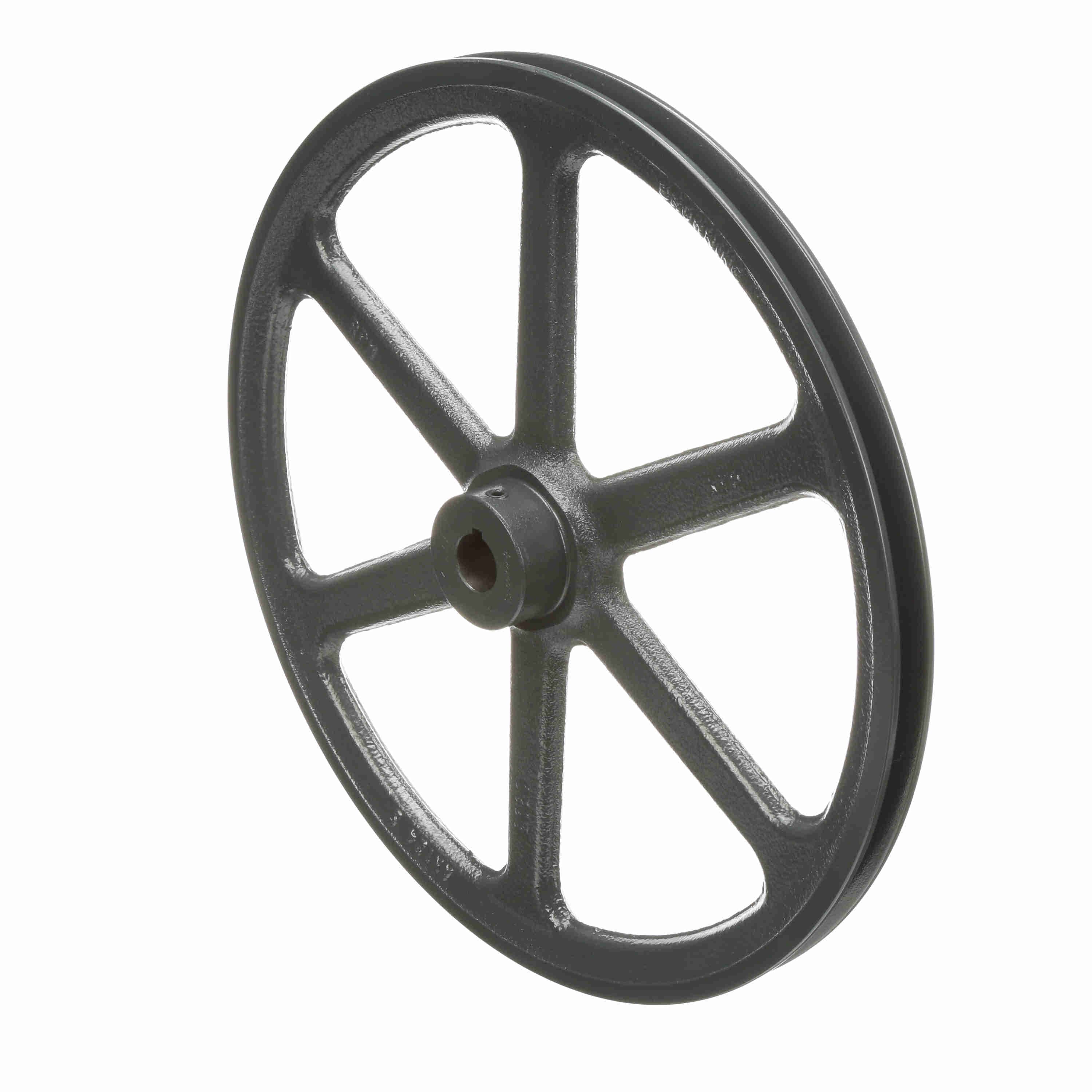

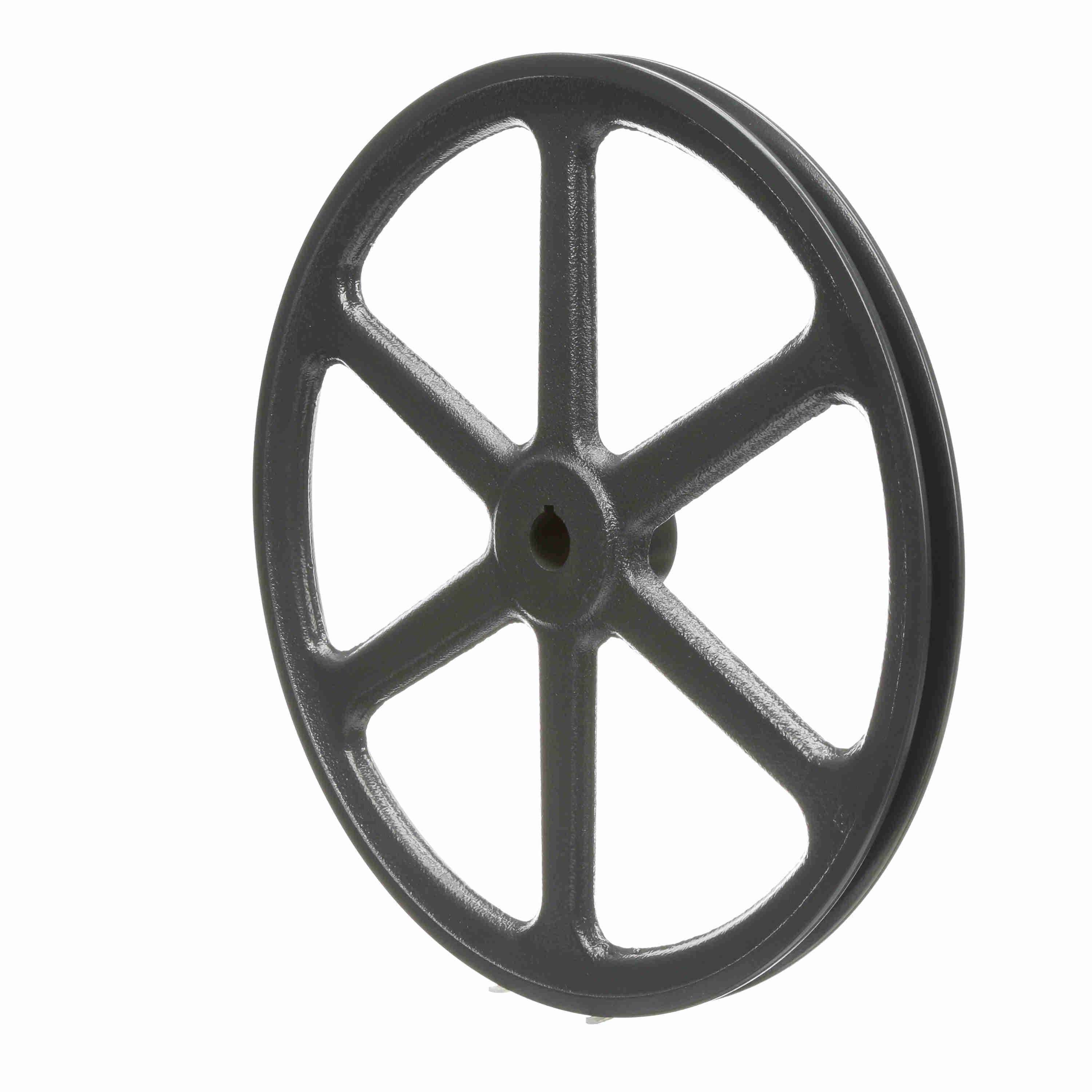

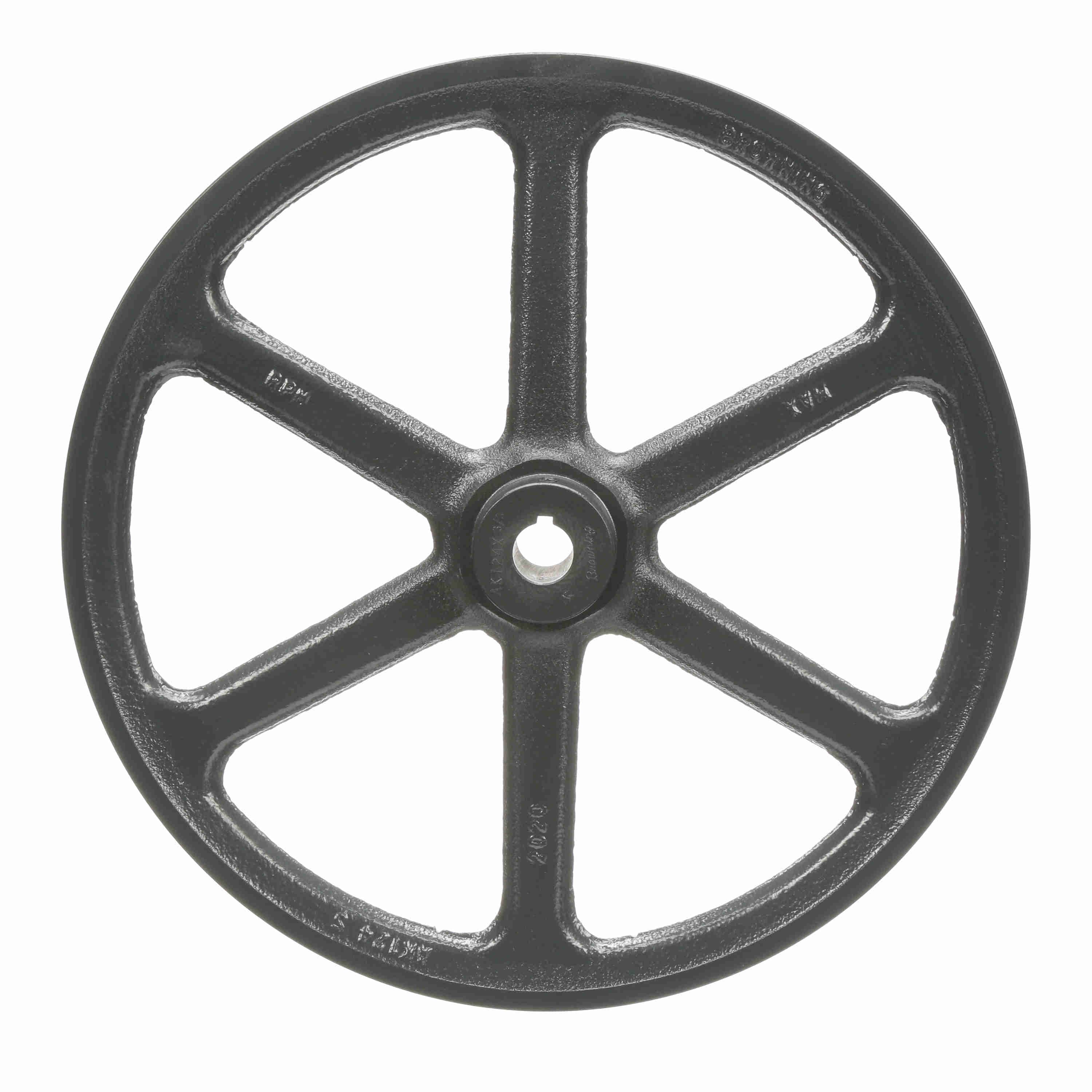

FHP CI F/B SHEAVES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1027572 |
| Product Name | AK124X3/4 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 6.835 lb |
| Package Length | 12.4 in |
| Package Width | 12.5 in |
| Package Height | 1.7 in |
| Number of Grooves | 1 |
| Outside Diameter (in) | 12.25 in |
| Pitch Diameter (A) | 12.2 |
| Model Name | AK_Sheave_Master2 |
| Datum (3L) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $574.27 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 11.66 |
| Warning | Do not use these "AK" sheaves with bores 1" and under with gripnotch belt ratings. |
| Bore (in) | 0.75 in |
| Product Type | FHP - Finished Bore |
| Belt Section | 4L or A, 3L |
| Bore Type | Finished with Keyway and SS |
| Face Width (in) | 0.75 |
| Overall Width (in) | 1.53125 |
| Pulley Construction | Spoked |
| Keyway Size | 3/16 x 3/32 |
| Set Screw Thread | 5/16-18UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb) | 165 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101967 |
| Part NumberiManufacturer catalog number | 1027572 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289207305 |
| CategoryiCatalog classification | FHP Sheaves |
