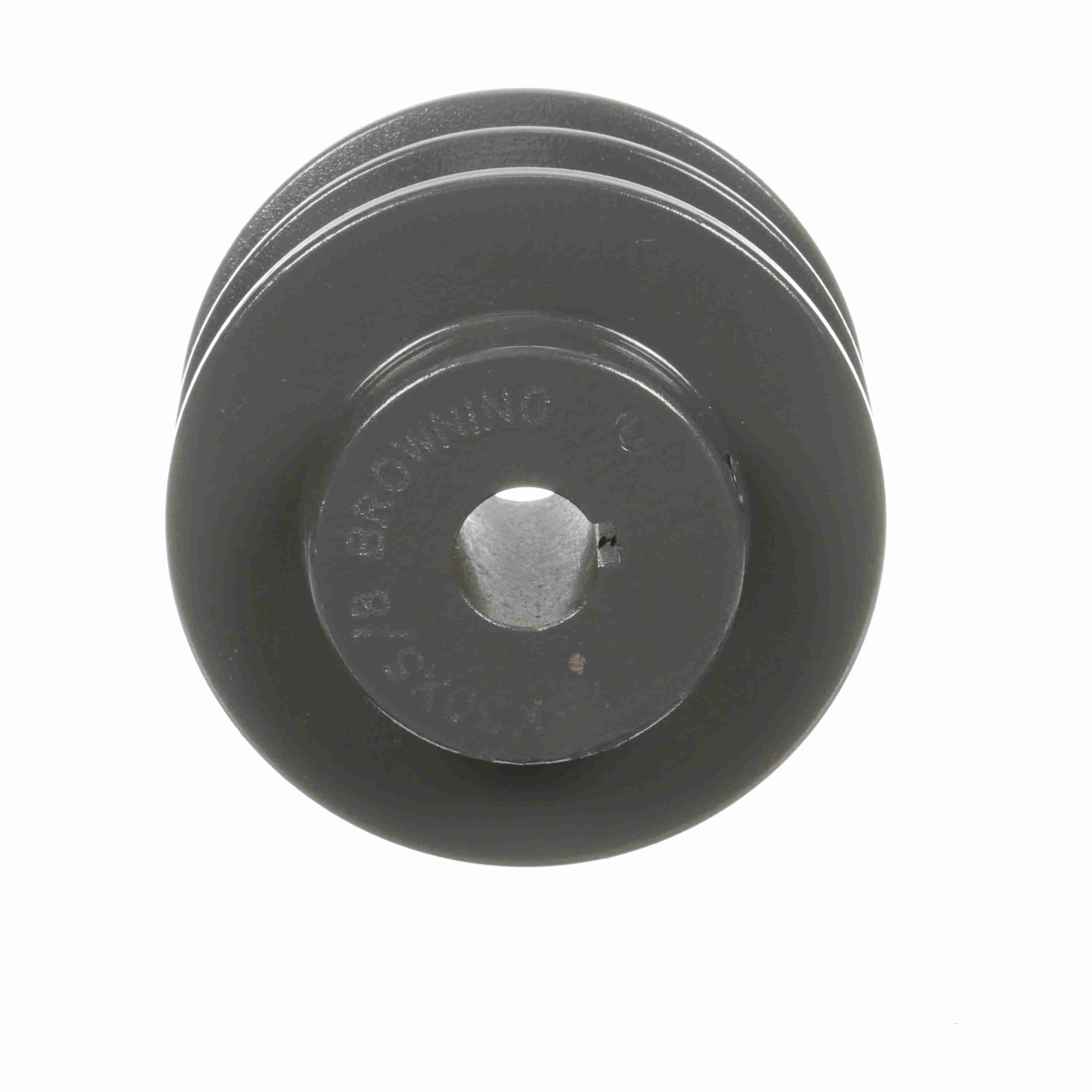

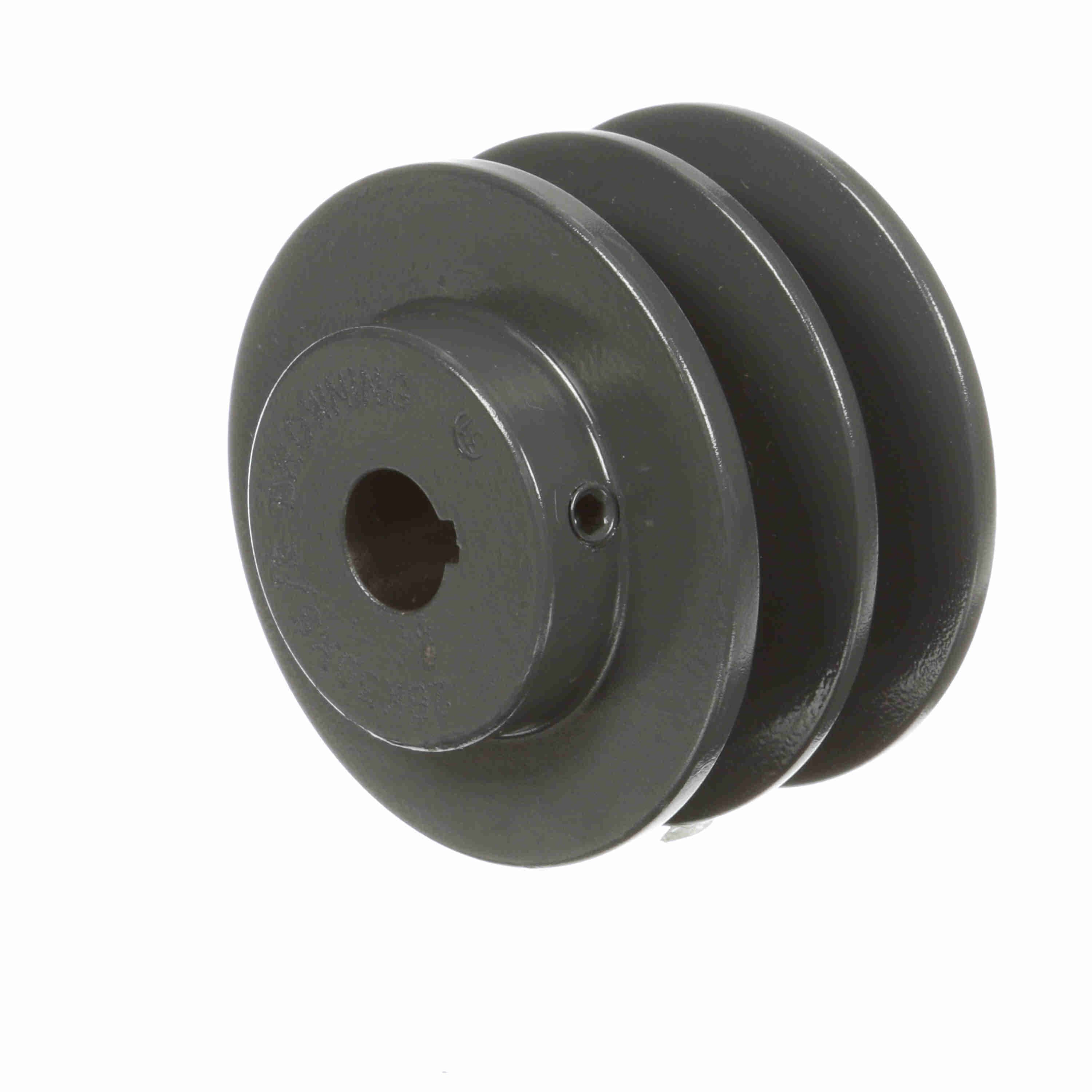

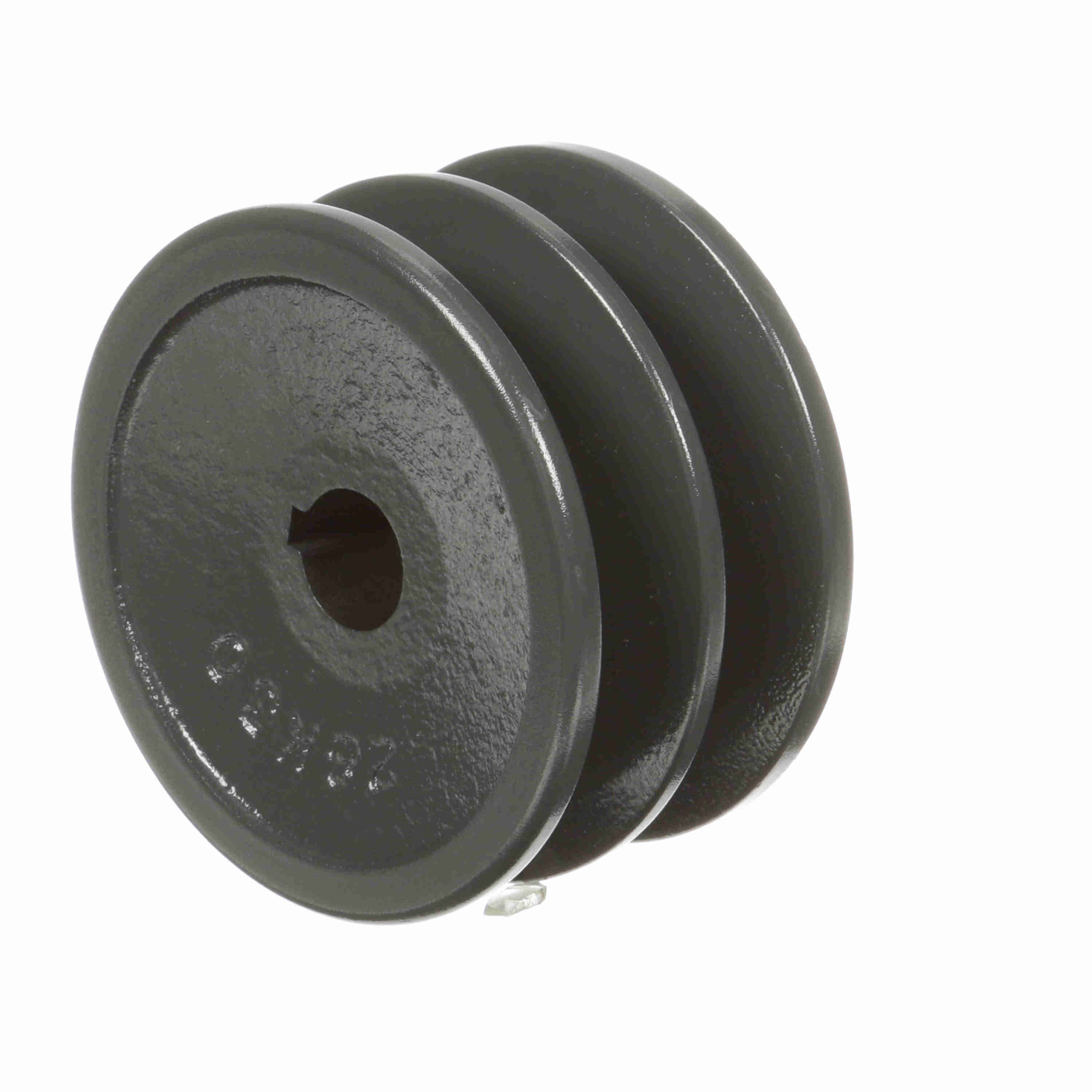

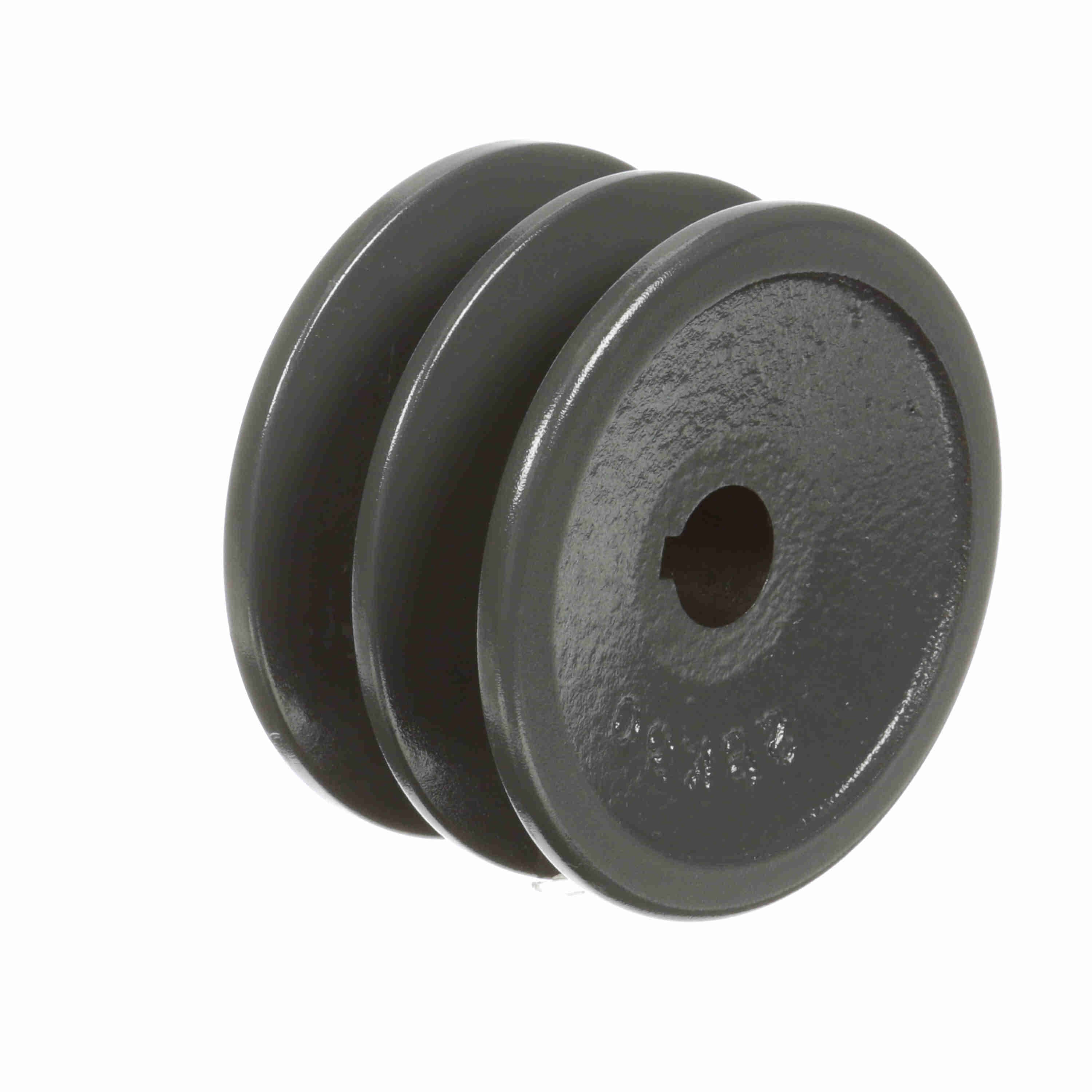

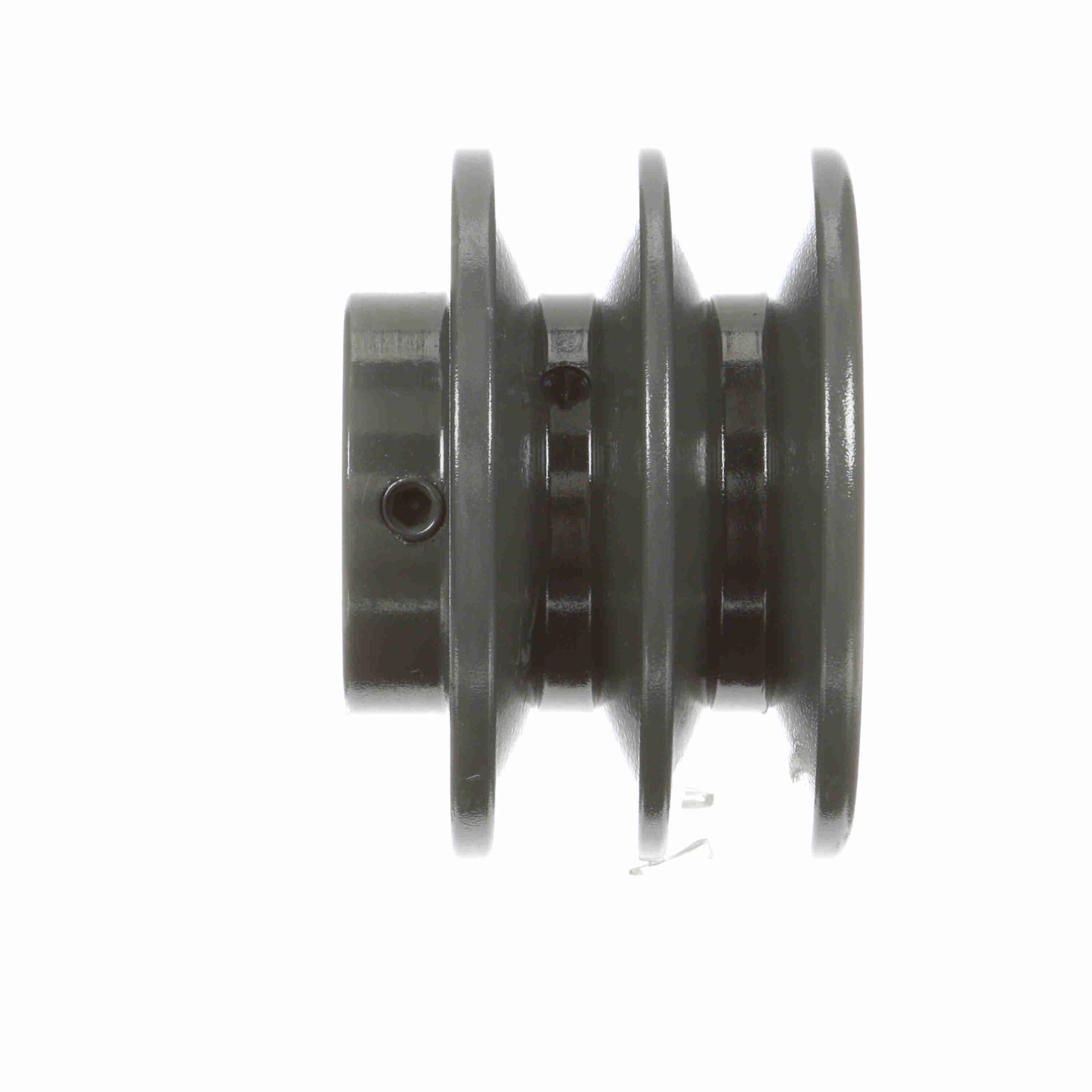

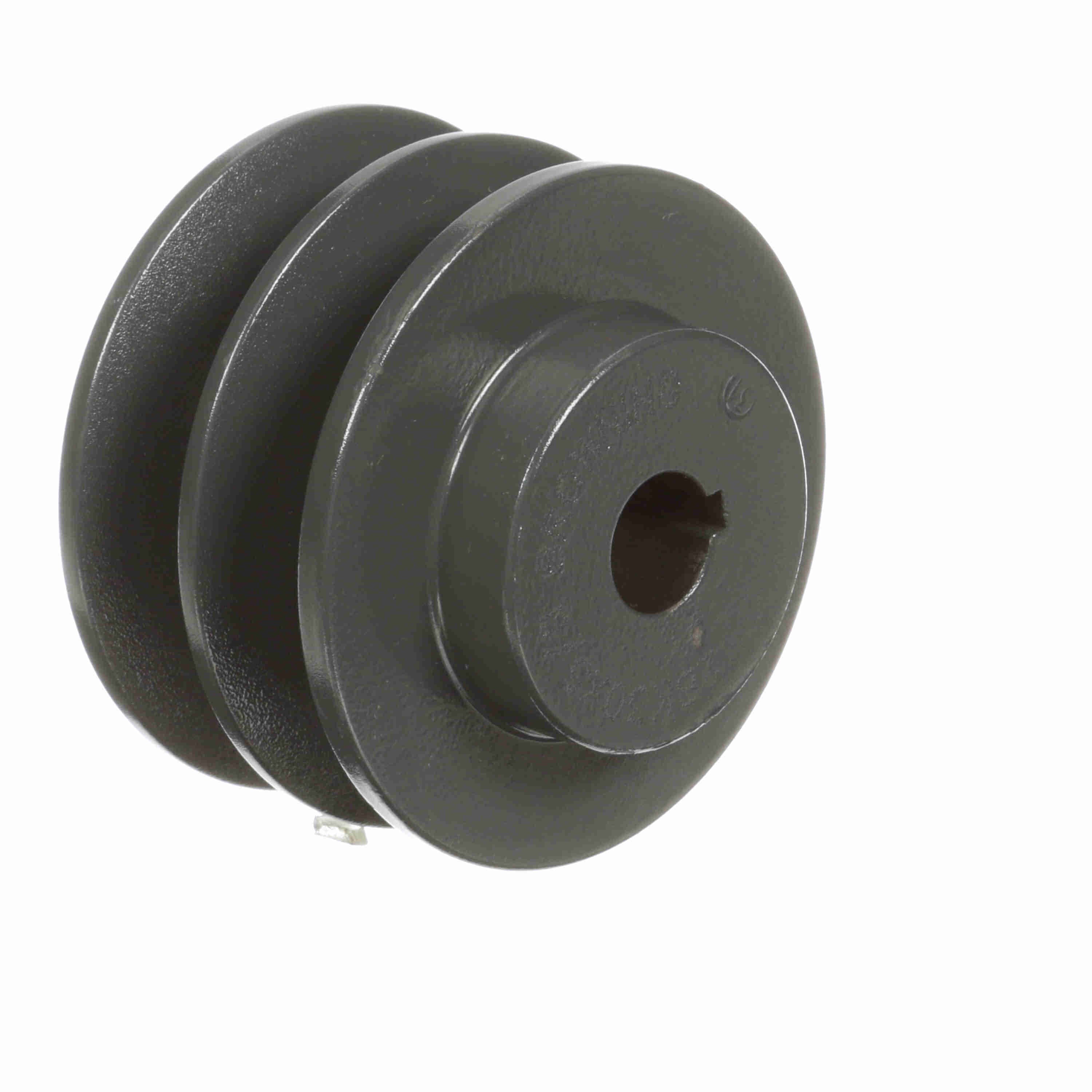

FHP CI F/B SHEAVES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1033174 |
| Product Name | 2BK30X5/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 2.385 lb |
| Package Length | 3.7 in |
| Package Width | 3.8 in |
| Package Height | 2.3 in |
| Pitch Diameter (B) | 3.1 |
| Model Name | 2BK_Sheave_Master2 |
| Pitch Diameter (A) | 2.6 |
| Outside Diameter (in) | 3.15 in |
| Number of Grooves |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $349.44 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2 |
| Bore (in) | 0.625 in |
| Belt Section | 4L or A, 5L or B |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Pulley Construction | Plain |
| Keyway Size | .1875 |
| Face Width (in) | 1.75 |
| Overall Width (in) | 2.21875 |
| Set Screw Tightening Torque (in-lb) | 165 |
| Set Screw Thread | 5/16-18UNC-3AX3/8 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102277 |
| Part NumberiManufacturer catalog number | 1033174 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289200917 |
| CategoryiCatalog classification | FHP Sheaves |
