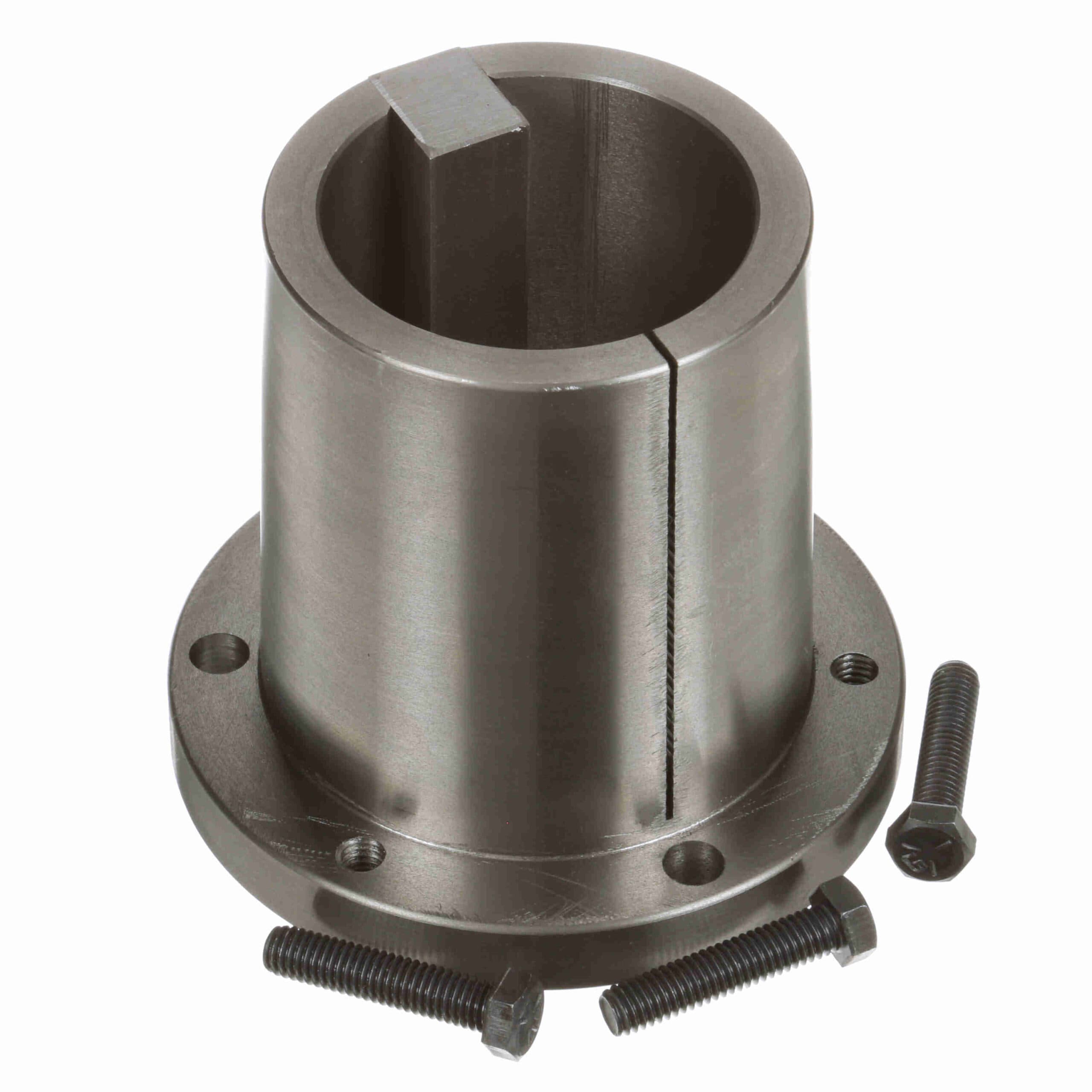

Browning Split Taper Bushing - Metric Bore Type - R2 75 MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1071166 |
| Product Name | R2 75 MM |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 8.78 lb |
| Package Length | 5.38 in |
| Package Width | 5 in |
| Package Height | 5.38 in |
| Outside Diameter (in) | 5.375 in |
| Wrench Torque (in-lb) | 348 |
| Bore Size (mm) | 75 mm |
| Total Length (mm) | 123.825 mm |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Compatible Bore Size [Max] (mm) |
| 75 mm |
| Cap Screws (Size) | 3/8 x 1 3/4 |
| Keyseat (mm) | 20 x 6 mm |
| Product Type | Split Taper Bushing |
| Length Through Bore (mm) | 123.825 mm |
| Outside Diameter (mm) | 136.525 mm |
| Bushing Type | R2 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103634 |
| Part NumberiManufacturer catalog number | 1071166 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
