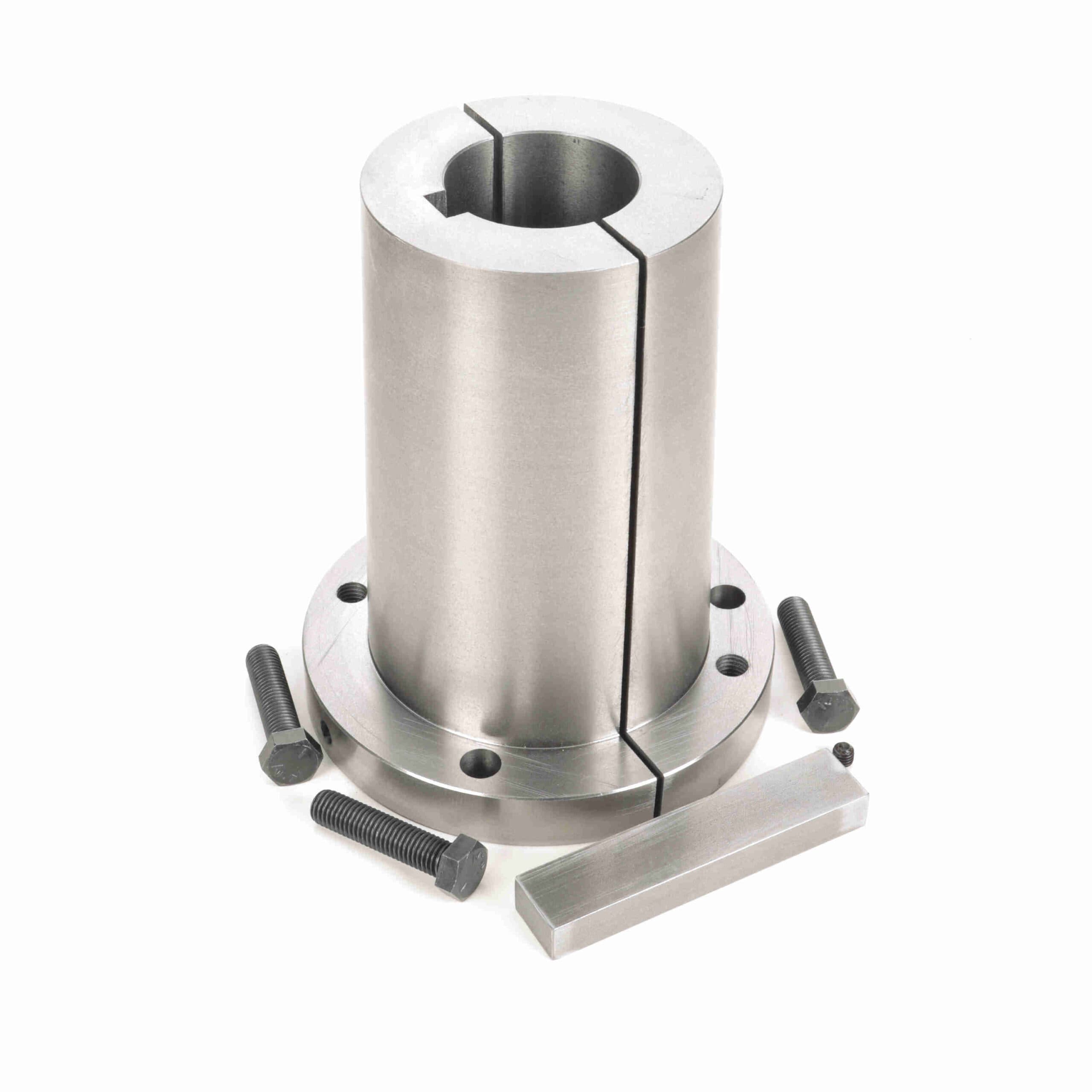

Browning Split Taper Bushing - Inch Bore Type - U2 2 15/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1071984 |
| Product Name | U2 2 15/16 |
| Brand | Browning |
| Material | Ductile Iron or Gray Iron |
| Weight | 58.58 lb |
| Package Length | 9.25 in |
| Package Width | 9.25 in |
| Package Height | 3.88 in |
| Product Type | Split Taper Bushing |
| Keyseat | 3/4 x 3/8 |
| Bushing Type | U2 |
| Cap Screws (Size) | 5/8 x 2 3/4 |
| Total Length (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 10.125 in |
| Compatible Bore Size [Max] (in) | 2.9375 in |
| Length Through Bore (in) | 10.125 in |
| Outside Diameter (in) | 8.375 in |
| Bore Size (in) | 2.9375 in |
| Wrench Torque (in-lb) | 1, 680 |
| Cap Screws (No.) | 3 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-103699 |
| Part NumberiManufacturer catalog number | 1071984 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
